Spinea – DriveSpin Cycloidal Rotary Actuators

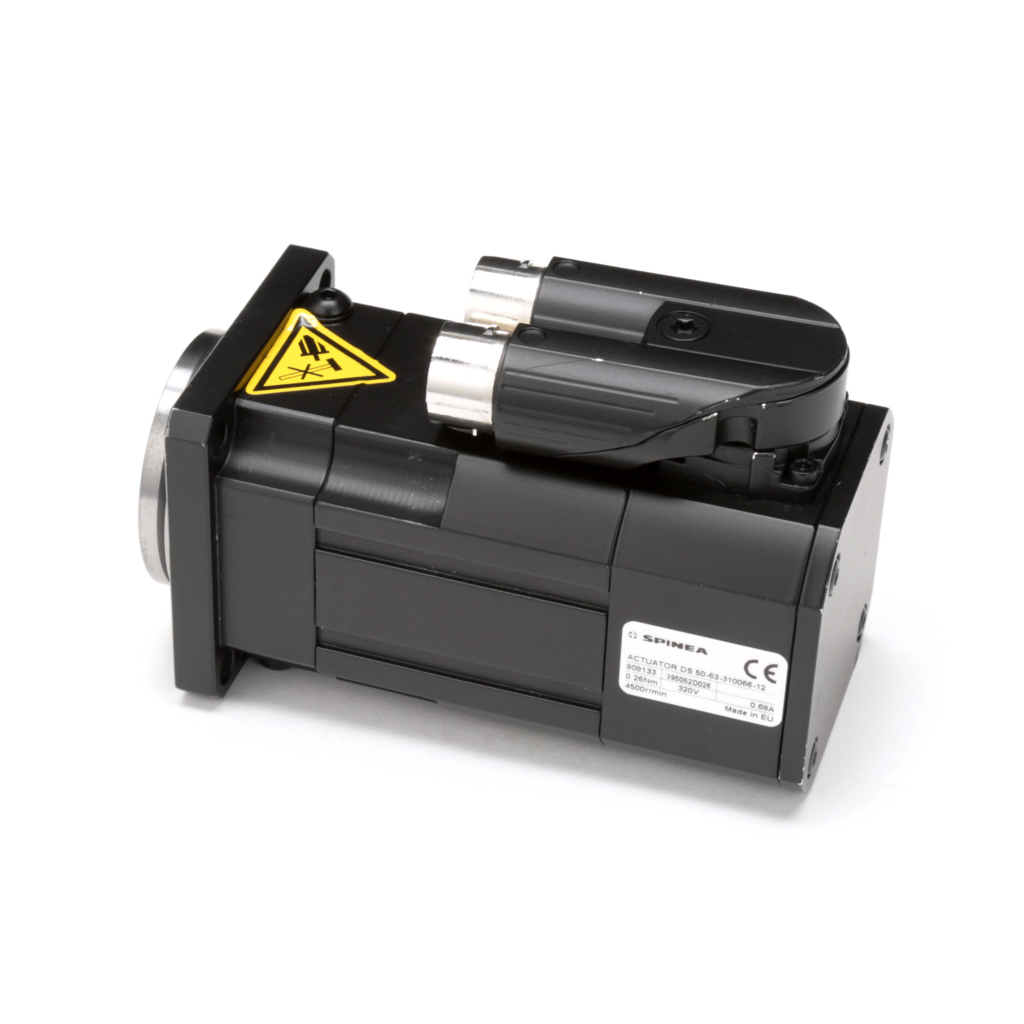

The actuators of the DriveSpin series combine optimized servomotors and TwinSpin gears resulting in a dynamic, high-performance and very compact servo actuator with high tilting torque capacity with integrated bearing. Main characteristics of DriveSpin are compact design, zero backlash, high dynamic performance, high torsional and tilting stiffness, small size, low mass, simple installation, high load capacity of radial-axial output bearing and maintenance free.

  • Zero Backlash
  • High Moment Capacity
  • High Positioning Accuracy
  • High Positioning Repeatability
  • High Torsional and Tilting Stiffness
  • Sizes 70 – 220
  • Ratios from 41:1 – 125:1
  • Nominal torque from 50 to 1250 Nm

What’s Next?

Other Models Available

Application Examples

Why Choose a Spinea Cycloidal Reducer?

High productivity manufacturing requires automation systems that are highly accurate and extremely repeatable. Standard gear products, like planetary gearheads, rarely have the backlash control or torsional rigidity to perform as necessary. This is especially true in robotics, machine tool, medical, communication and some military applications.

There are a few devices available that provide many of the characteristics required for these types of applications. But none provide the torque density, rigidity and backlash control that is available from Spinea through DieQua. With some of the best delivery times in this market, you’ll actually be able to take advantage of the high performance features without having to wait for the seasons to change.

Sample Industries

  • Robots
  • Material Handling
  • Machine Tools
  • Communication
  • Medical
  • Rotary Tables
  • Welding Positioners
  • Gantries
  • Pallet Changers
  • Guided Vehicles
