Screw Jacks & Lifting Systems

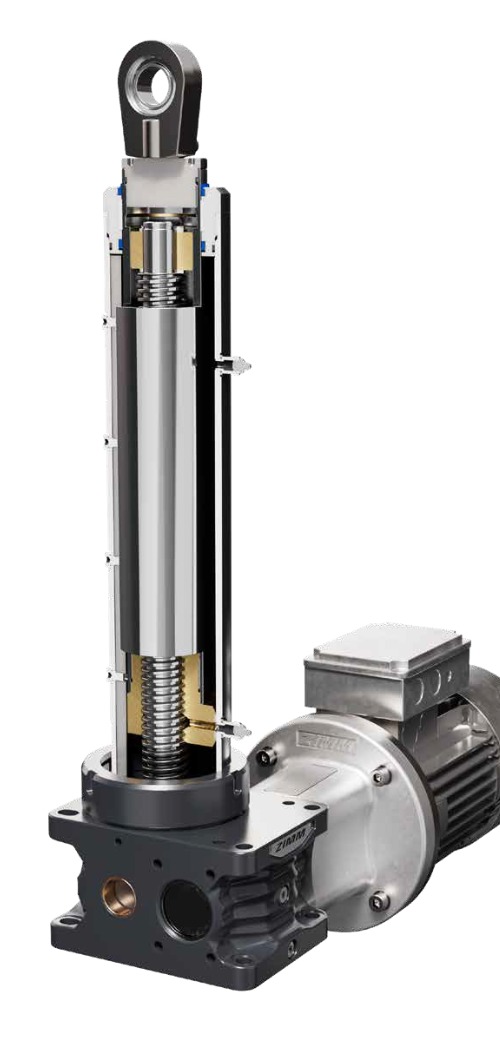

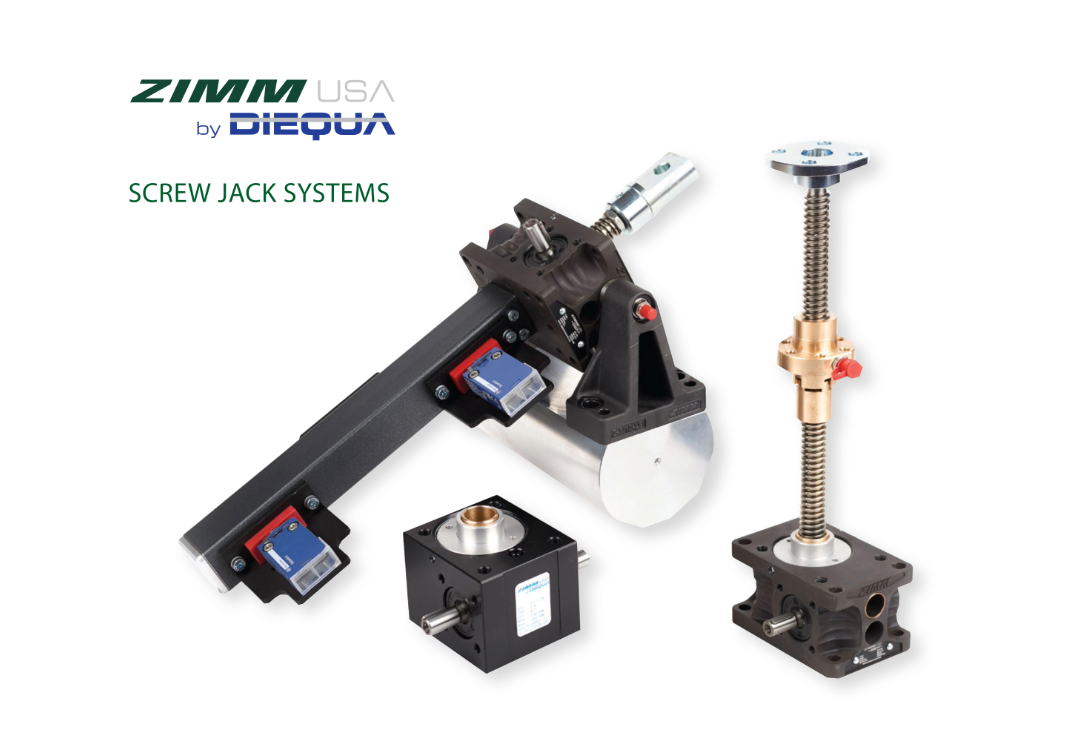

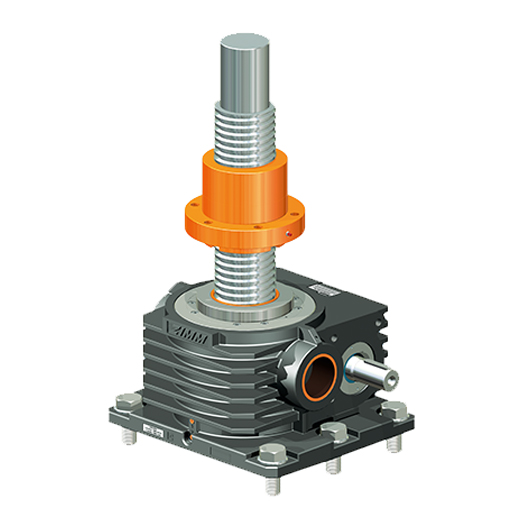

Screw Jack Systems offer comprehensive lifting and positioning design solutions for a wide variety of industries. Highly accurate and extremely reliable machine screw and ball screw jacks are matched with an extensive range of drive, connection, motion control, safety, and protection components to provide a complete package from a single source.

DieQua offers system design assistance, taking the guess work out of product selection. Our years of application experience assures that all elements of the design process are considered. We also offer full assembly drawings, which provides time saving value and guarantees the correct system components are integrated into your design.

  • Precision Machine and Ball Screws
  • Standing and Rotating Versions
  • Multiple Spindle End Connections
  • Multiple Driving Nut Designs
  • Modular Housing for Mounting Versatility
  • Multiple Safety and Protection Options
  • Motion Control Options
  • Complete System Designs

  • 12 sizes
  • Lifting capacity from 0.5 – 100 tons
  • Ratios from 4:1 to 13.33:1

What’s Next?

Features & Benefits

Product Line Overview:

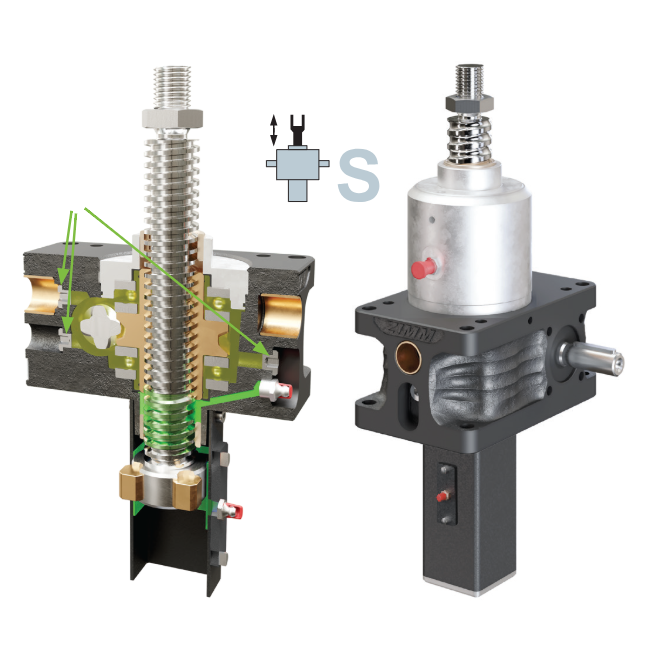

Model “S” – Standing Version

Design Description: The spindle travels through the jack body, providing direct linear force. A variety of rod ends and flange components allow easy connection.

Design Note: Space is required above and below the jack body to equal at least the lift distance, plus add-on components.

Other Designs Available: Square body jacks in cast iron and aluminum as well as a variety of lift speeds are available upon request.

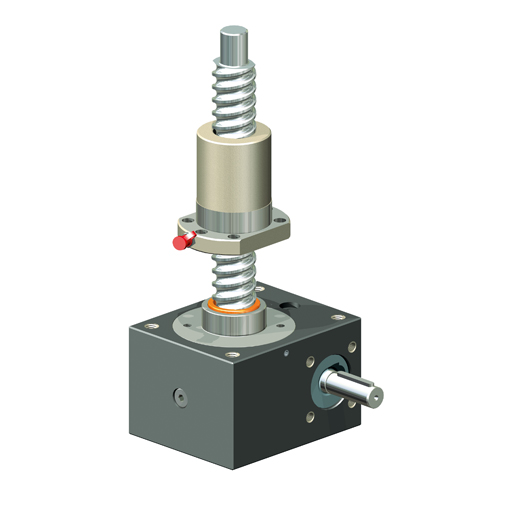

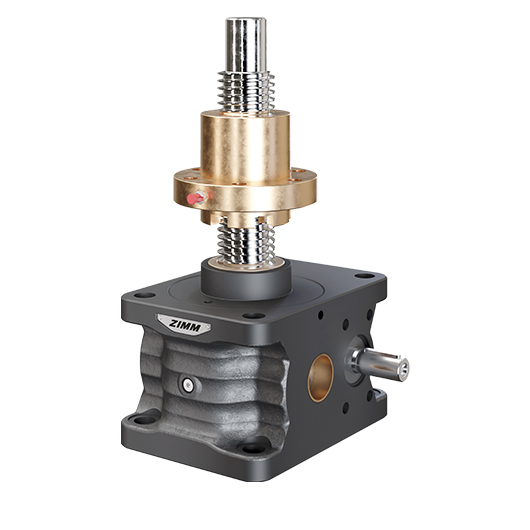

Model “R” – Rotating Version

Design Description: The spindle rotates, driving a nut up and down it’s length. A variety of nut options are available.

Design Note: Other than for very short spindle lengths, the top of the spindle should be supported by a bearing to avoid rod whip.

Other Designs Available: Square body jacks in cast iron and aluminum as well as a variety of lift speeds are available upon request.

Complete Systems

Design Description: Complete systems can include the screw jacks, the jack accessories, the connecting components, and the drive systems.

Sizes: Multiple jacks can share the load of a balanced system, reducing the size of individual screw jacks.

Design Note: When moving a load with multiple jacks, it is critical to assure proper alignment and provide guided system support.

System Components

Load Connection Options for Standing Model

Fixing Flange

Forked Head

Rod End

Pivot Bearing

Load Connection Options for Rotating Model

Flange Nut

Flange Nut

Duplex Nut

Duplex Nut

Self-Aligning Nut

Self-Aligning Nut

Greaseless Nut

Greaseless Nut

Screw Jack Connecting Options

Greaseless Nut

Lineshafts

Greaseless Nut

Universal Joints

Standard Couplings

Standard Couplings

Clamp Couplings

Clamp Couplings

Motion Control Options

Limit Switches

Limit Switches

Rotary Encoders

Rotary Encoders

Anti-Backlash

Anti-Backlash

Brakes

Brakes

Protection Options

Protection Tubes

Protection Tubes

Bellows

Bellows

Anti-Rotation

Anti-Rotation

Safety Nuts

Safety Nuts

Drive Options

Motors

Motors

Motor Flanges

Motor Flanges

Hand Wheels

Hand Wheels

Bevel Boxes

Bevel Boxes

Mounting Options

Bearing Plates

Bearing Plates

Support Tubes

Support Tubes

Driving Flanges

Driving Flanges

Pivot Brackets

Pivot Brackets

Other Available Options

Bearing Flanges

Bearing Flanges

Automatic Lubricator

Automatic Lubricator

Lubricating Strips

Lubricating Strips

Pedestal Bearings

Pedestal Bearings

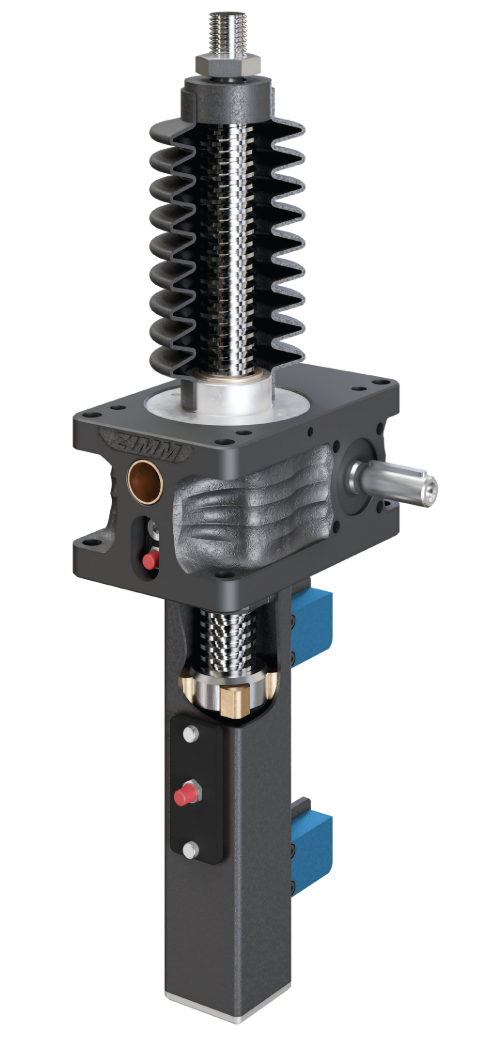

Why Choose a Zimm Screw Jack System?

Most screw jack designs have been around for decades. While they have stood the test of time, today’s applications require more dynamic solutions, with more options and more automation.

There is also a demand for a system approach to lifting and positioning requirements, where all components are matched and the solutions encompass a complete assembly.

Zimm provides that system approach, offering the most advanced screw jack designs along with all the connecting, safety and drive components, all available from a single source and included in a single assembly drawing.

Zimm offers what no one else does – a complete solution for your lifting needs.

Sample Industries

  • Automation
  • Chemical
  • Communications
  • Custom Machinery
  • Energy
  • Material Handling
  • Packaging
