Servo Gearheads

Servo gearheads provide mechanical advantage by multiplying motor torque while reducing the driven load’s reflected inertia back to the motor.

DieQua offers the widest range of gear technologies providing optimal solutions far beyond the capabilities of other gearhead suppliers.

Planetary Servo Gearheads

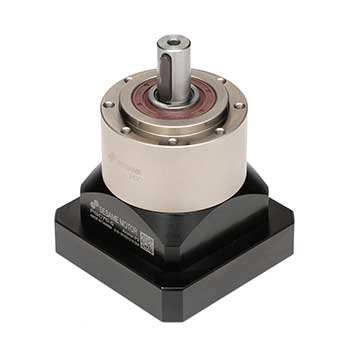

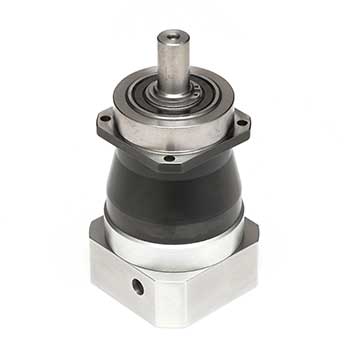

Precision Planetary

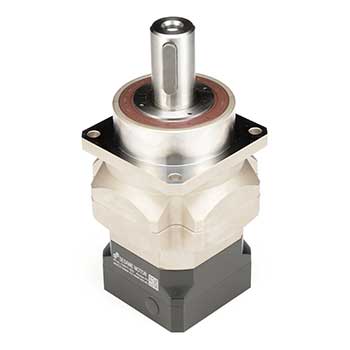

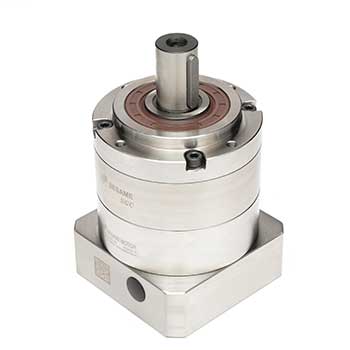

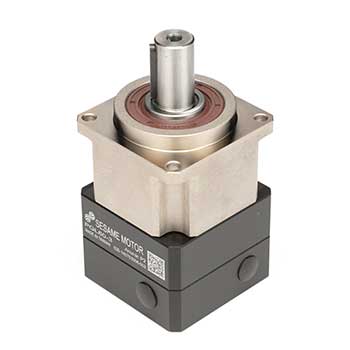

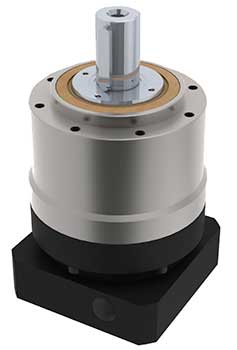

The Sesame® series of planetary and planetary bevel gearheads provide a wide range of performance levels to satisfy the full range of motion control application requirements.

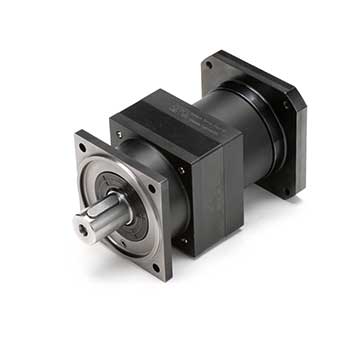

Precision Planetary

The ServoFoxx inline is ideal for highly dynamic applications where precision and durability is required.

High Dynamic
Planetary Bevel

The ServoFoxx right angle with planetary pre-stage offers single or dual outputs with multiple shaft profiles.

High Dynamic
Bevel Planetary

The ServoFoxx with bevel pre-stage offers the highest torque density for dynamic applications.

Single Stage
Spiral Bevel

The ServoFoxx spiral bevel offers precise motion control in ratios from 1:1 to 5:1 with multiple outputs.

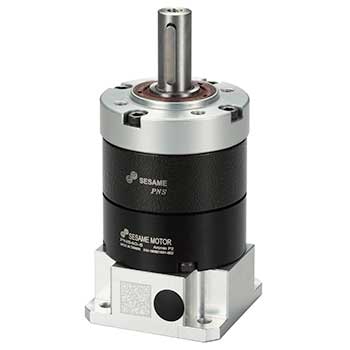

Economy Planetary

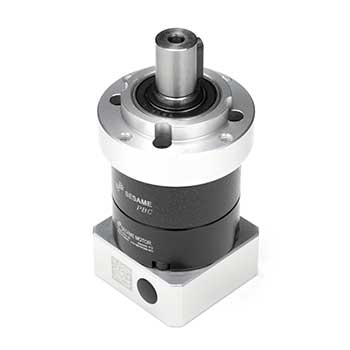

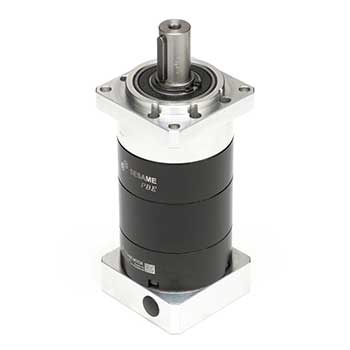

The Sesame® series of planetary and planetary bevel gearheads provide a wide range of performance levels to satisfy the full range of motion control application requirements.

Rotary Flange Servo Gearheads

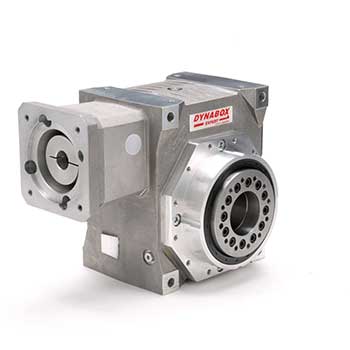

Precision Rotary Flange

Dynabox is intended specifically for servo applications and offers 3 backlash levels for design versatility.

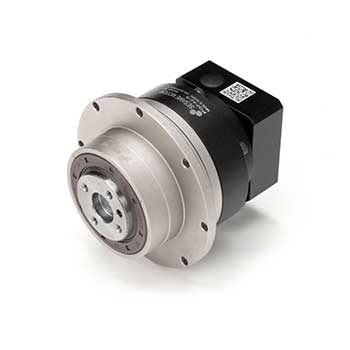

Rotary Flange

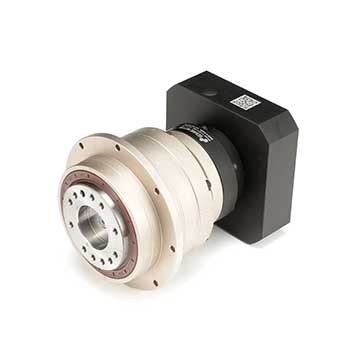

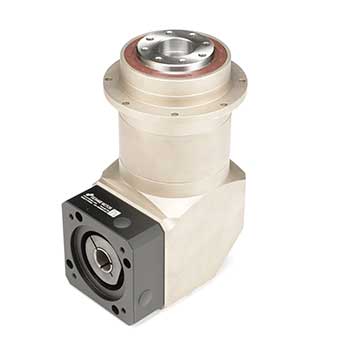

The PGF and PHF series of ISO 9409-1 compliant rotary flange helical bevel provide a wide range of performance levels to satisfy the full range of motion control application requirements.

Right Angle Servo Gearheads

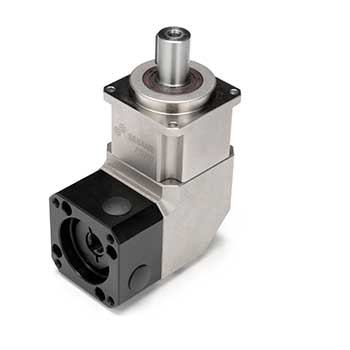

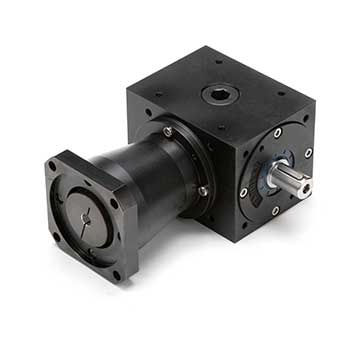

Right Angle

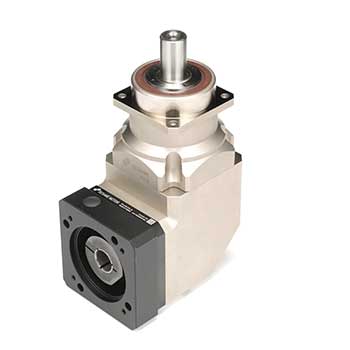

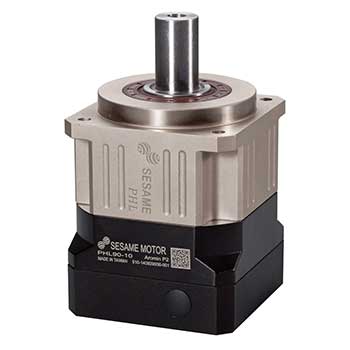

The Sesame® series of planetary and planetary bevel gearheads provide a wide range of performance levels to satisfy the full range of motion control application requirements.

Precision Hypoid

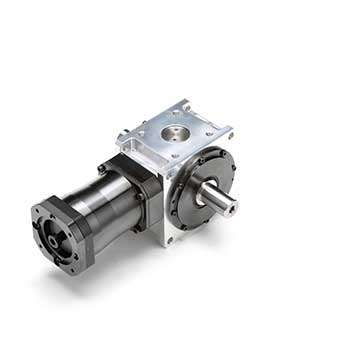

The ServoFoxx single stage hypoid design is ideal for high duty cycles requiring ratios from 5:1 to 15:1.

High Dynamic

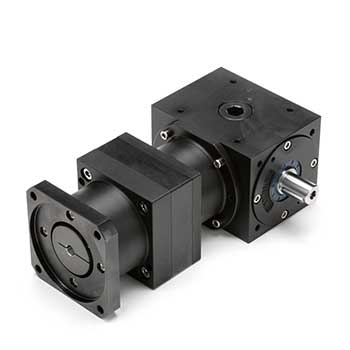

Planetary Bevel

The ServoFoxx right angle with planetary pre-stage offers single or dual outputs with multiple shaft profiles.

High Dynamic

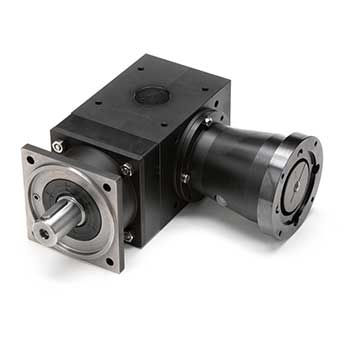

Bevel Planetary

The ServoFoxx with bevel pre-stage offers the highest torque density for dynamic applications.

Single Stage
Spiral Bevel

The ServoFoxx spiral bevel offers precise motion control in ratios from 1:1 to 5:1 with multiple outputs.

Worm Servo Gearheads

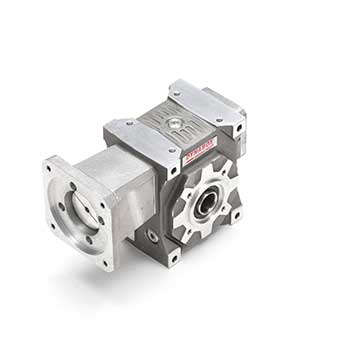

Precision Worm

Dynabox is intended for high performance servo application, available in 3 backlash levels, 5 output configurations, including ISO 9409-1 with large hollow bores.

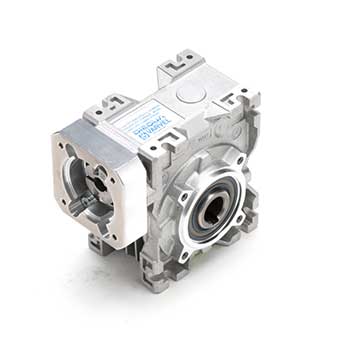

Economy Worm

This worm is our most economical solution for lower duty or simple motion servo applications.

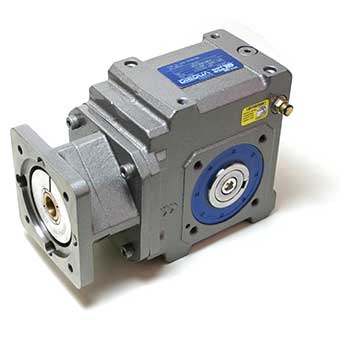

High Torque Helical Worm

This helical worm unit is our most economical solution for high torque, moderately dynamic or simple motion applications.

High Torque Servo Gearheads

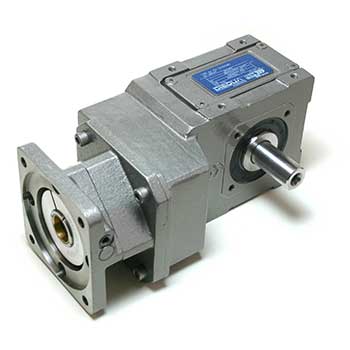

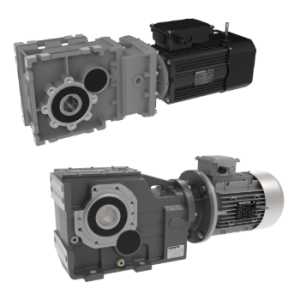

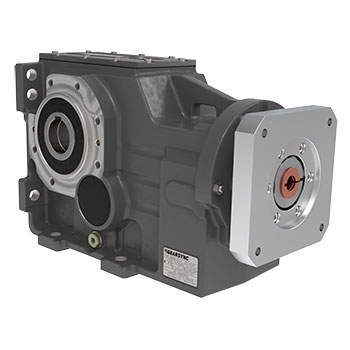

High Torque Helical Bevel

Inline and right angle configurations for larger requirements from 100 Nm to 14,000 Nm.

High Torque Helical Worm

This helical worm unit is our most economical solution for high torque, moderately dynamic or simple motion applications.

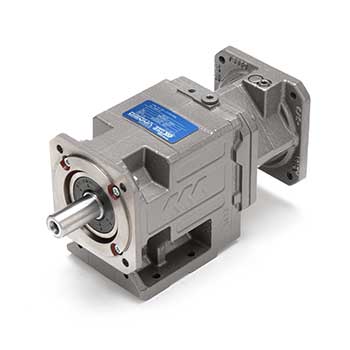

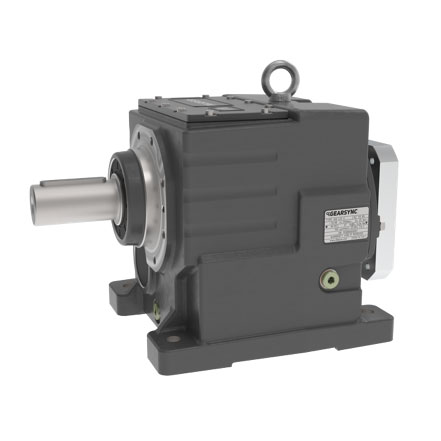

High Torque Helical Inline

This gearbox is ideal for high torque, moderately dynamic motion profiles at price points far below comparably sized Servo Planetary boxes.

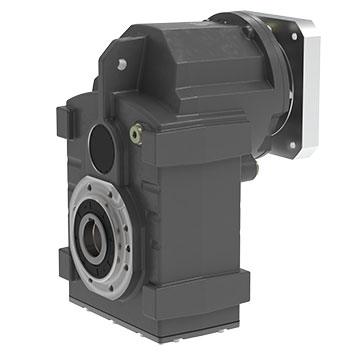

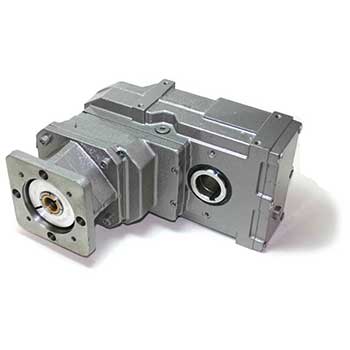

High Torque Helical Parallel Shaft

Inline and right angle configurations for larger requirements from 100 Nm to 14,000 Nm.
