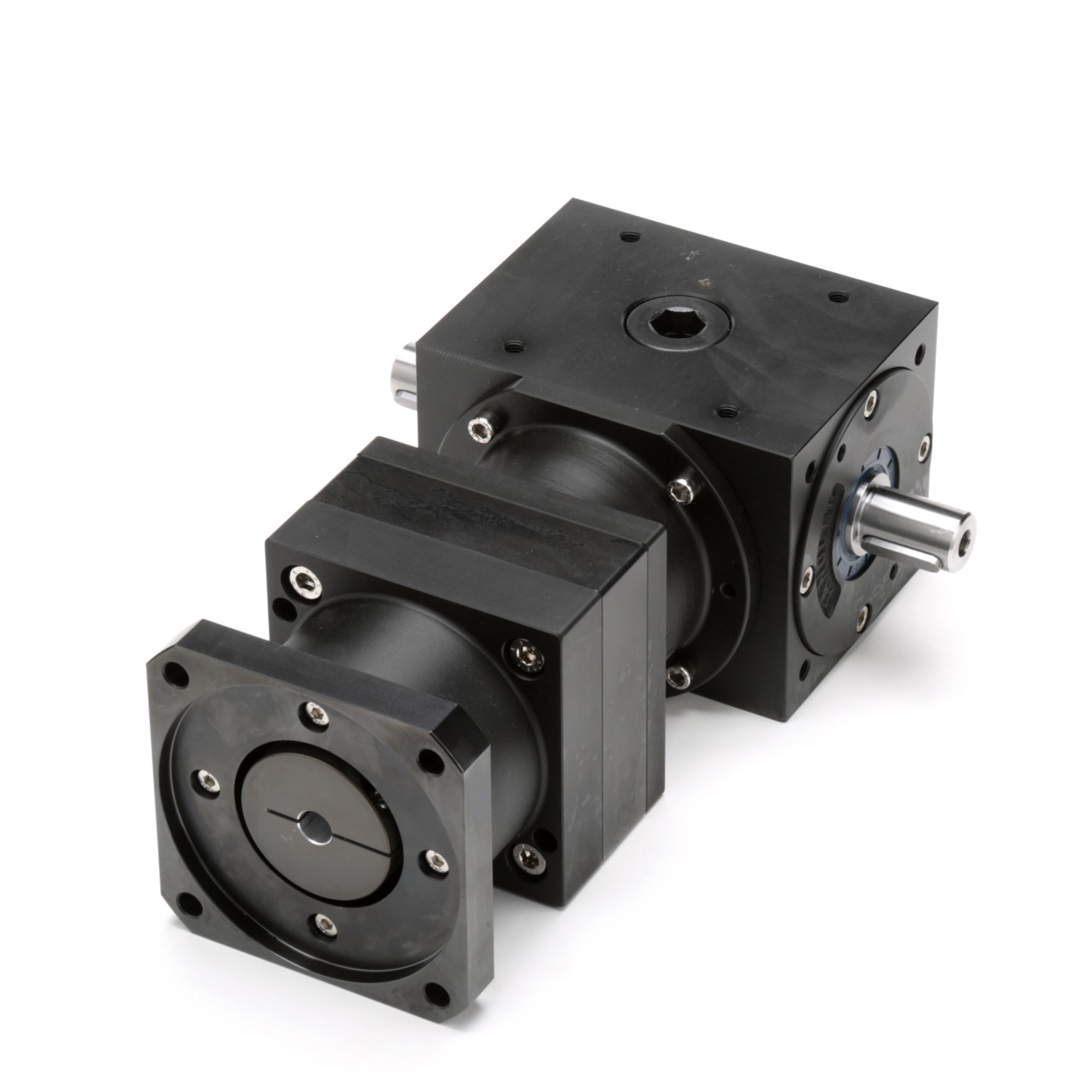

Tandler – SKP2FS High Dynamic Bevel Planetary Servo Gearheads

The Tandler SKP2FS right angle bevel planetary servo gearhead offers the ultimate in precision motion control. With ground, matched-set gears, lapped spiral bevel gears, and a revolutionary motor connection, maximum performance is assured. Series SKP2FS has higher torque capacity than a similar size series PSK2FS, but may have speed limitations.

  • Low Backlash: Two levels of backlash optimize and enhance positioning accuracy
  • Revolutionary Motor Mount: A flexible motor connection eliminates misalignment and gear deflection
  • Corrosion Resistance Option: QPQ Nitriding process provides protection against high moisture environments
  • Cast Iron Housing: Provides superior torsional rigidity over aluminum housings
  • More Ratios: The widest range of ratios available
  • Maximum Output Flexibility: Hollow shaft, shrink disk, switching, or up to five output shafts
  • 8 standard ratios, many additional ratios available
  • 4 sizes
  • Nominal torque capacity up to 900 Nm
  • Peak torque up to 1600 Nm

What’s Next?

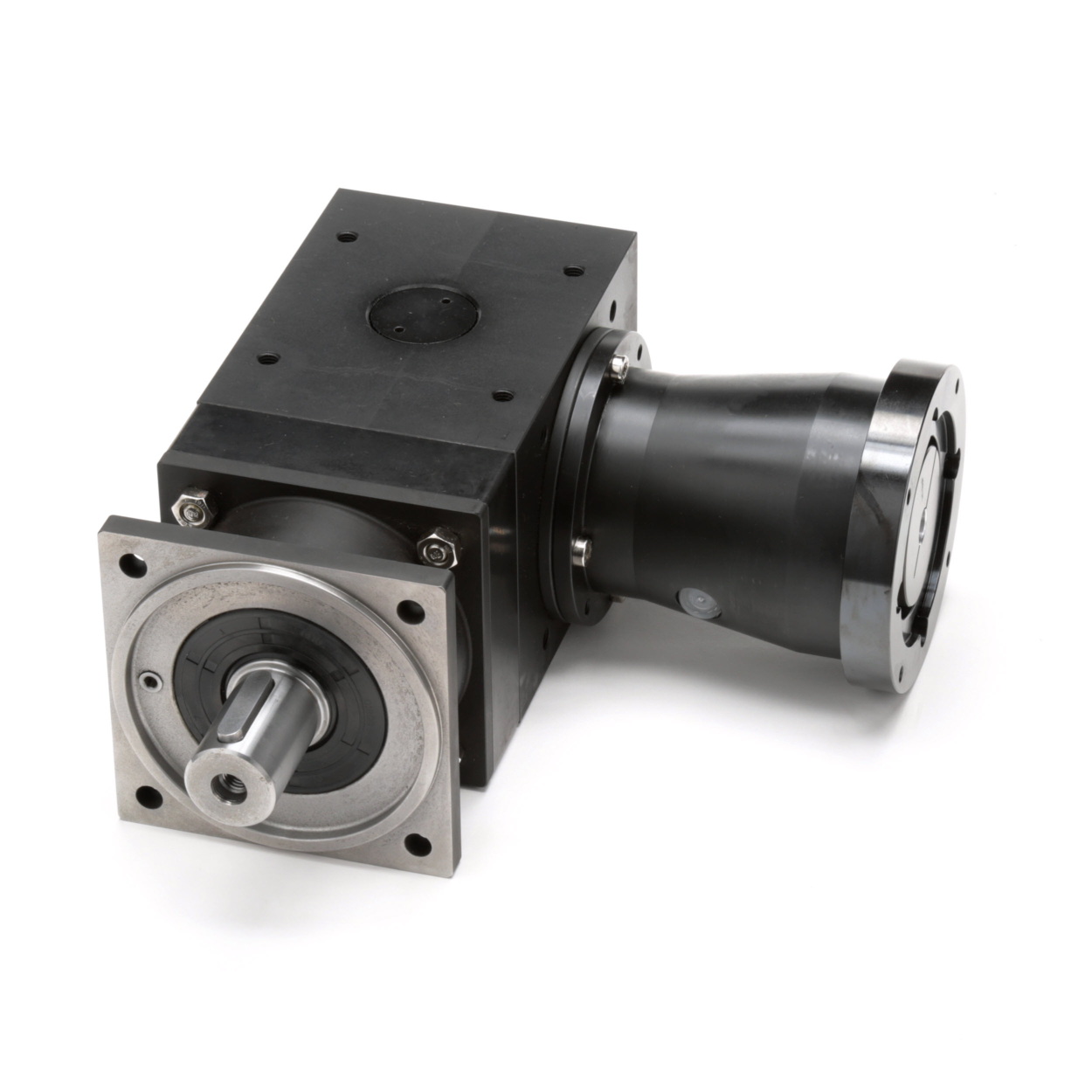

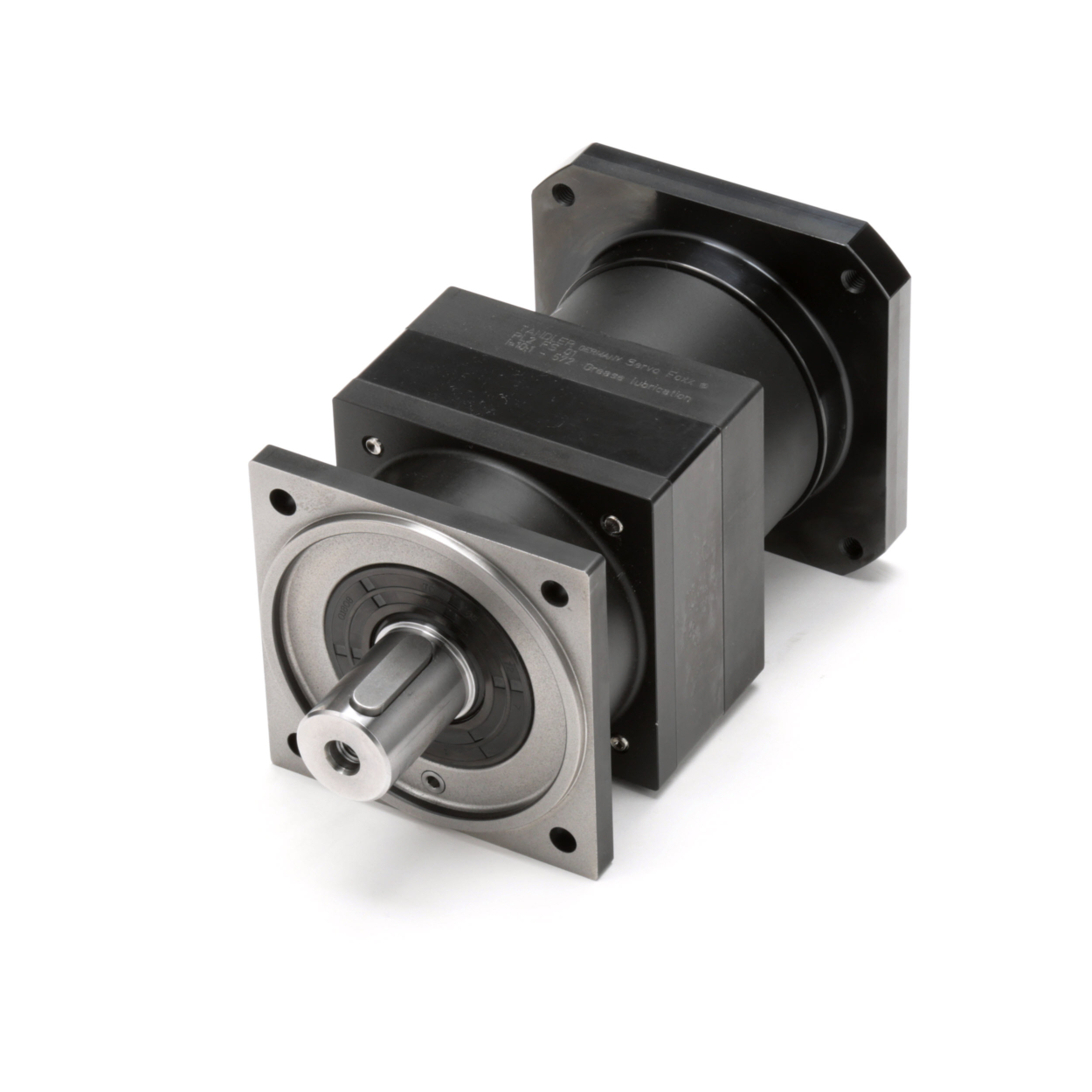

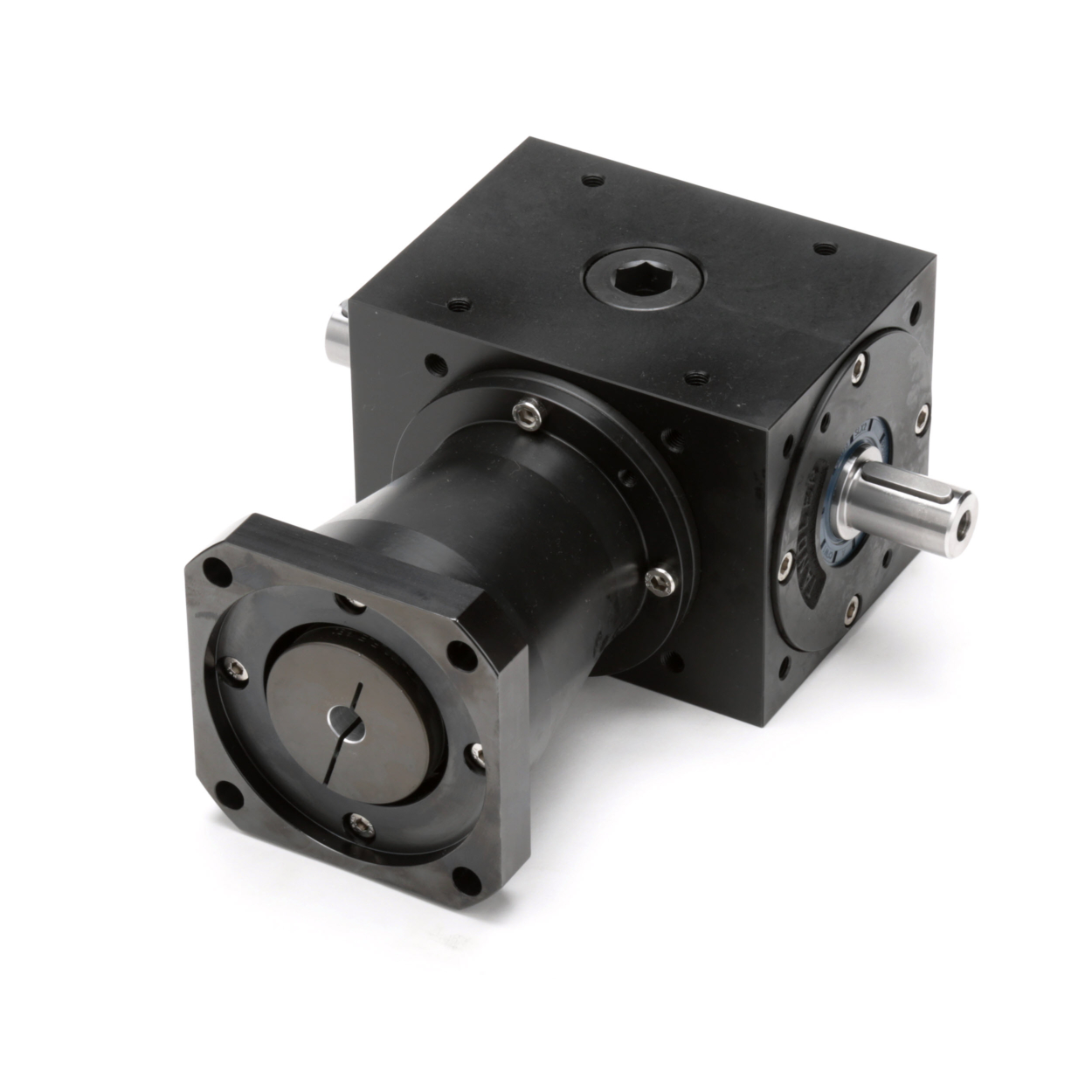

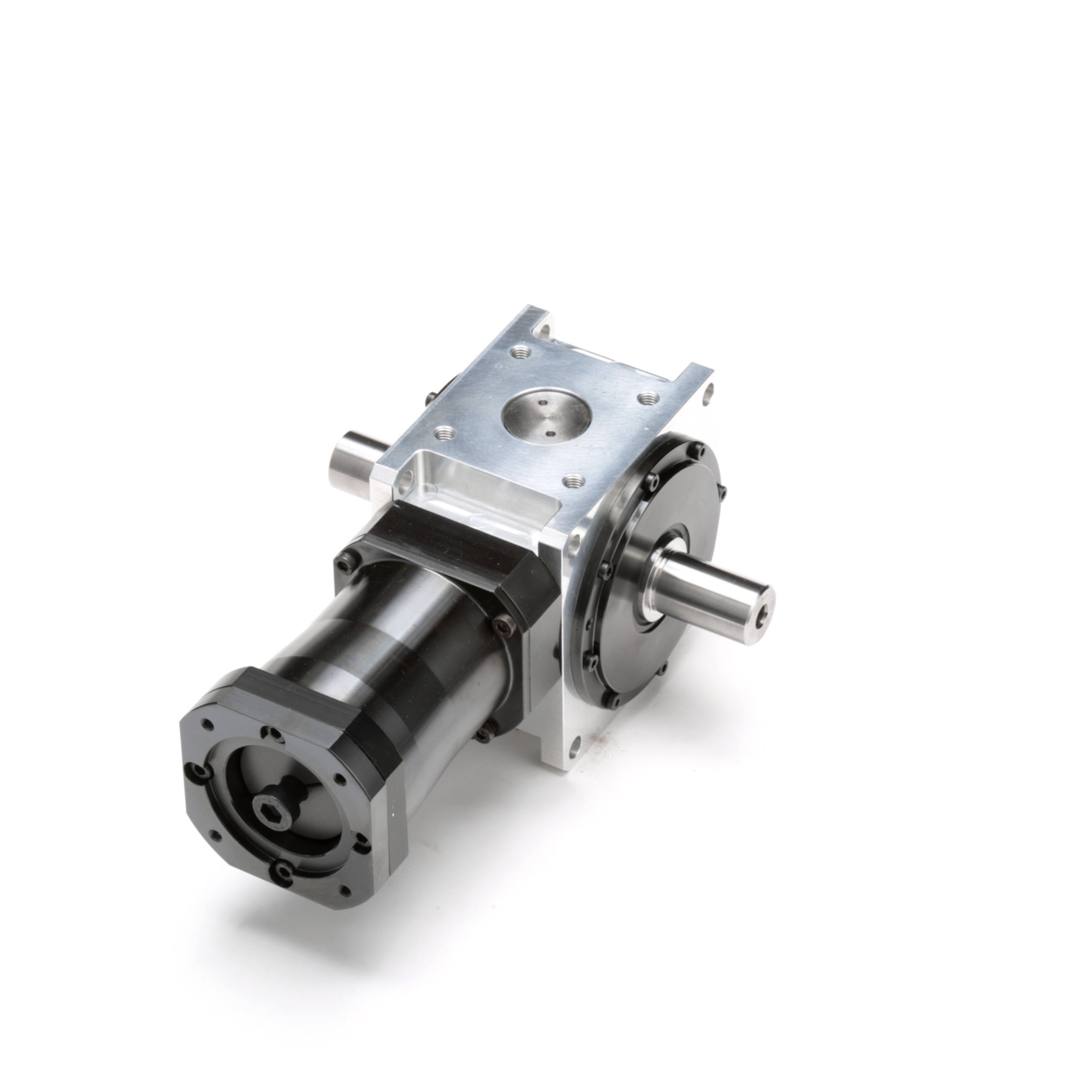

Other Models Available

Why Choose a Tandler Servo Gearhead?

The Tandler ServoFoxx series of servo gearheads provide the ultimate in precision motion control for highly dynamic applications

Featuring the widest range of ratios, configurations, and customizable options, we have the drive to meet your needs.

ServoFoxx incorporates a revolutionary flexible element to compensate for motor shaft misalignment, which maintains torsional rigidity, maximizes performance, reduces nooise, and eases motor mounting and disassembly.

Sample Industries

  • Aerospace

  • Communications

  • Factory Automation

  • Machine Tool

  • Medical

  • Packaging

  • and more…
