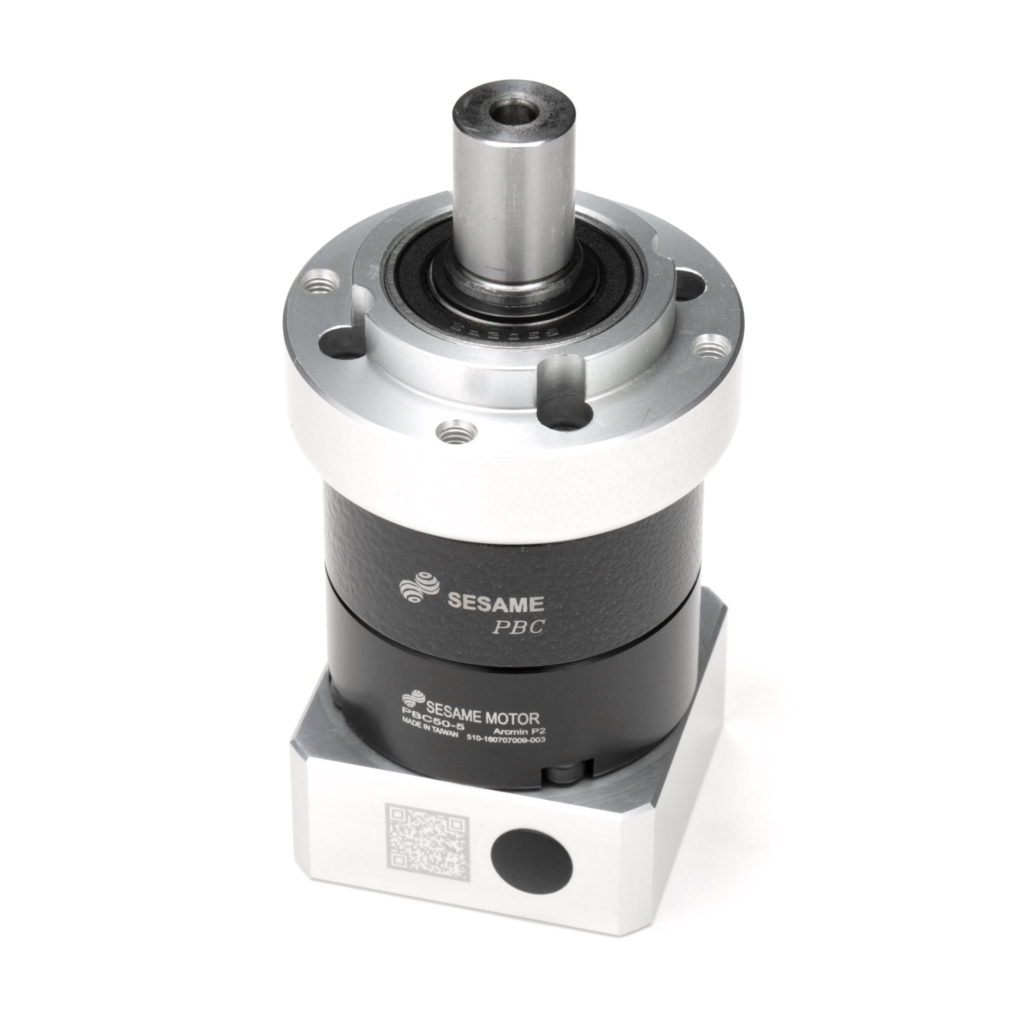

Sesame – PBC Economy Servo Gearheads

The PBC Economy Series features cylindrical mount housing, solid performance in sizes 50, 70 and 90 mm, in three stages with ratios from 3:1 through 1000:1.

  • Inline Configuration
  • Output shaft, diameters from 12 mm through 22 mm.
  • Torque Capacity Ranges: 5 Nm through 58 Nm.
  • Cantilevered Planet Carrier: with Primary Spur planet gear set.
  • Wide Range of Ratios: 6 single-stage, 8 two-stage ratios, and 8 three-stage ratios.
  • Mounting Versatility: The round output mounting face options delivers reliable performance is sizes ranging in 50 mm, 70 mm and 90 mm.
  • Output Bearing Deliver: radial loads up to 1700 N, axial loads up to 735 N.
  • Square Servo and Step Motor input: accommodates size ranges 40 mm through 120 mm, with optional sizes in available.
  • 3 frame sizes: 50-90mm
  • Ratios up to 1000:1
  • Standard backlash starting at <9 arcminute
  • Reliable operating performance
  • Cost effective integration

What’s Next?

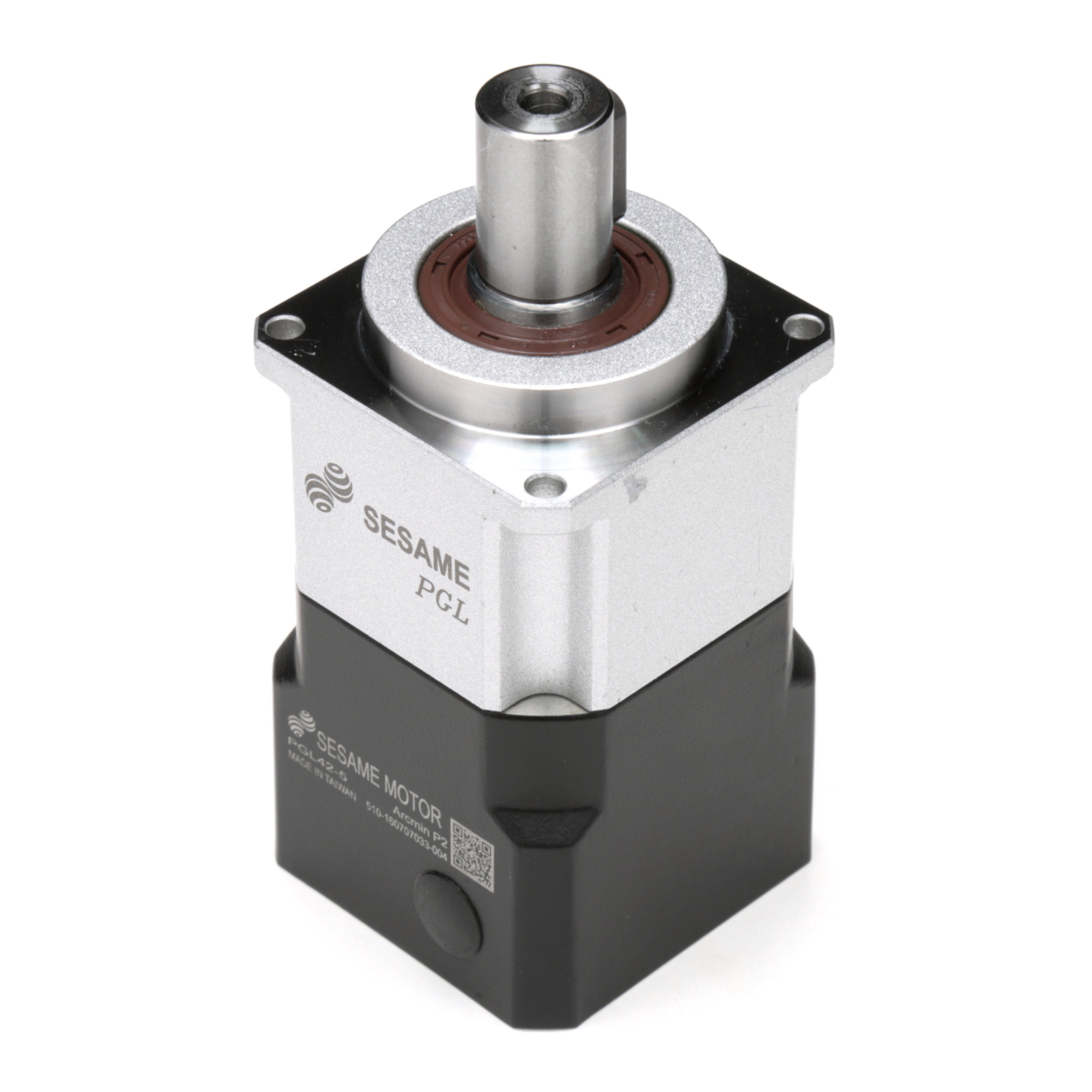

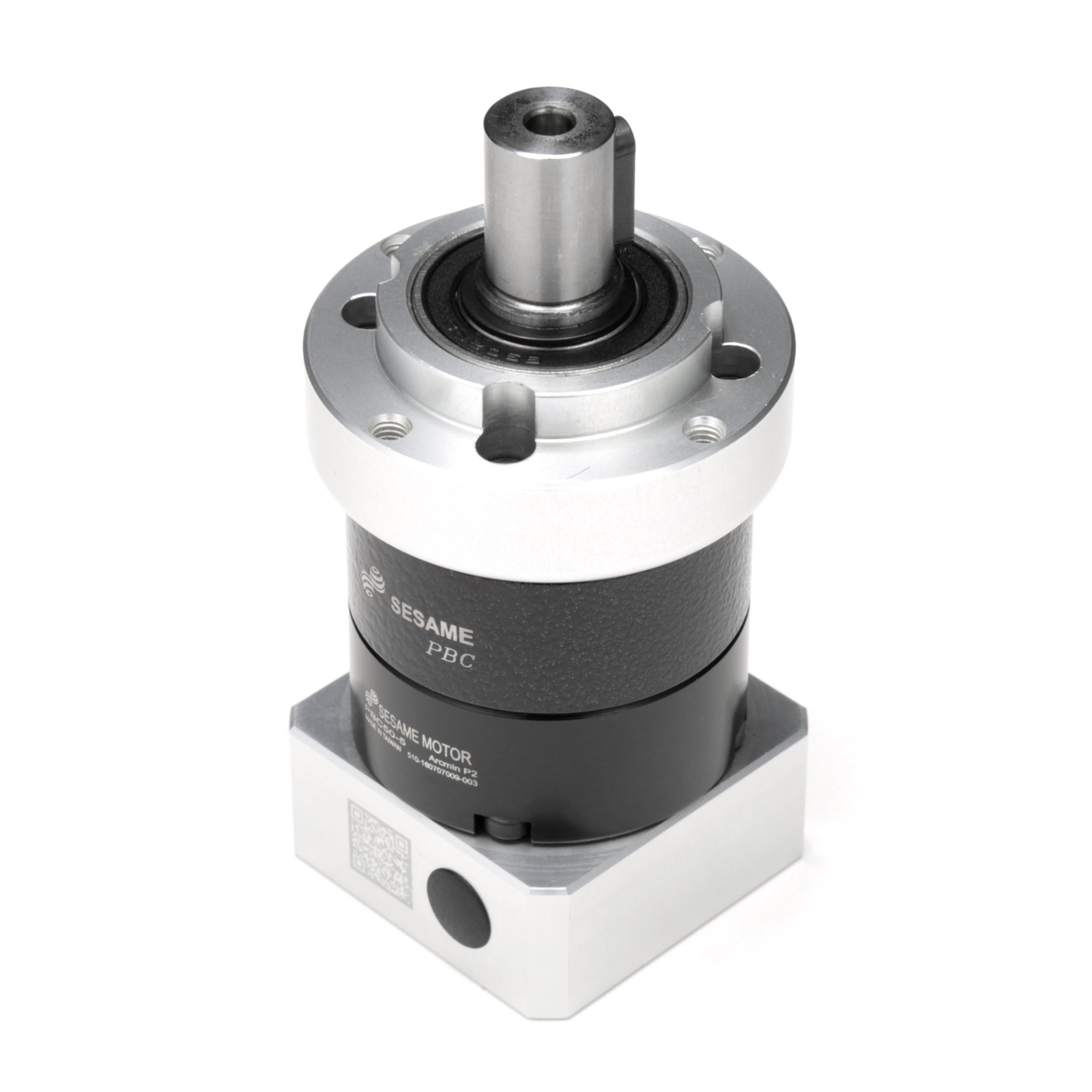

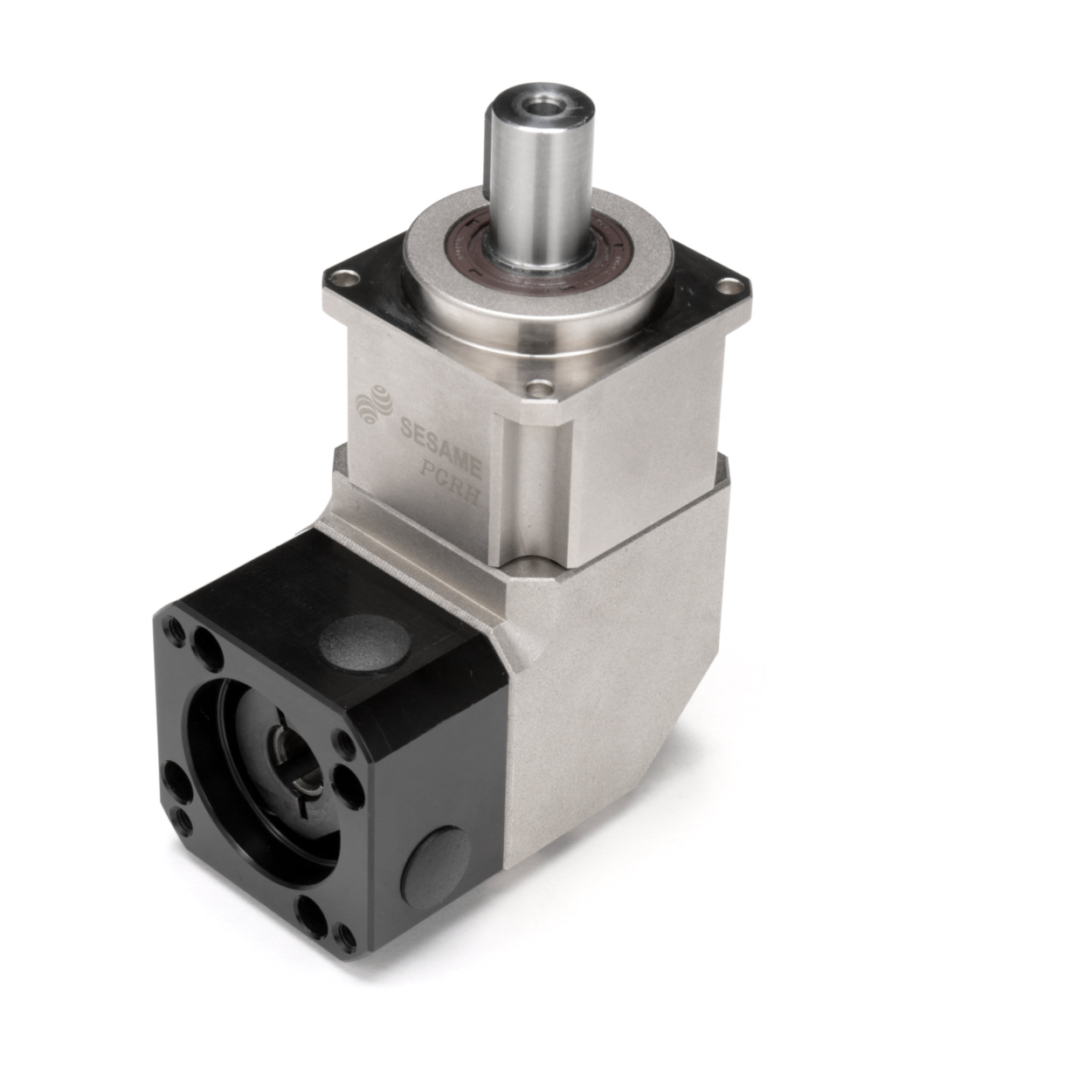

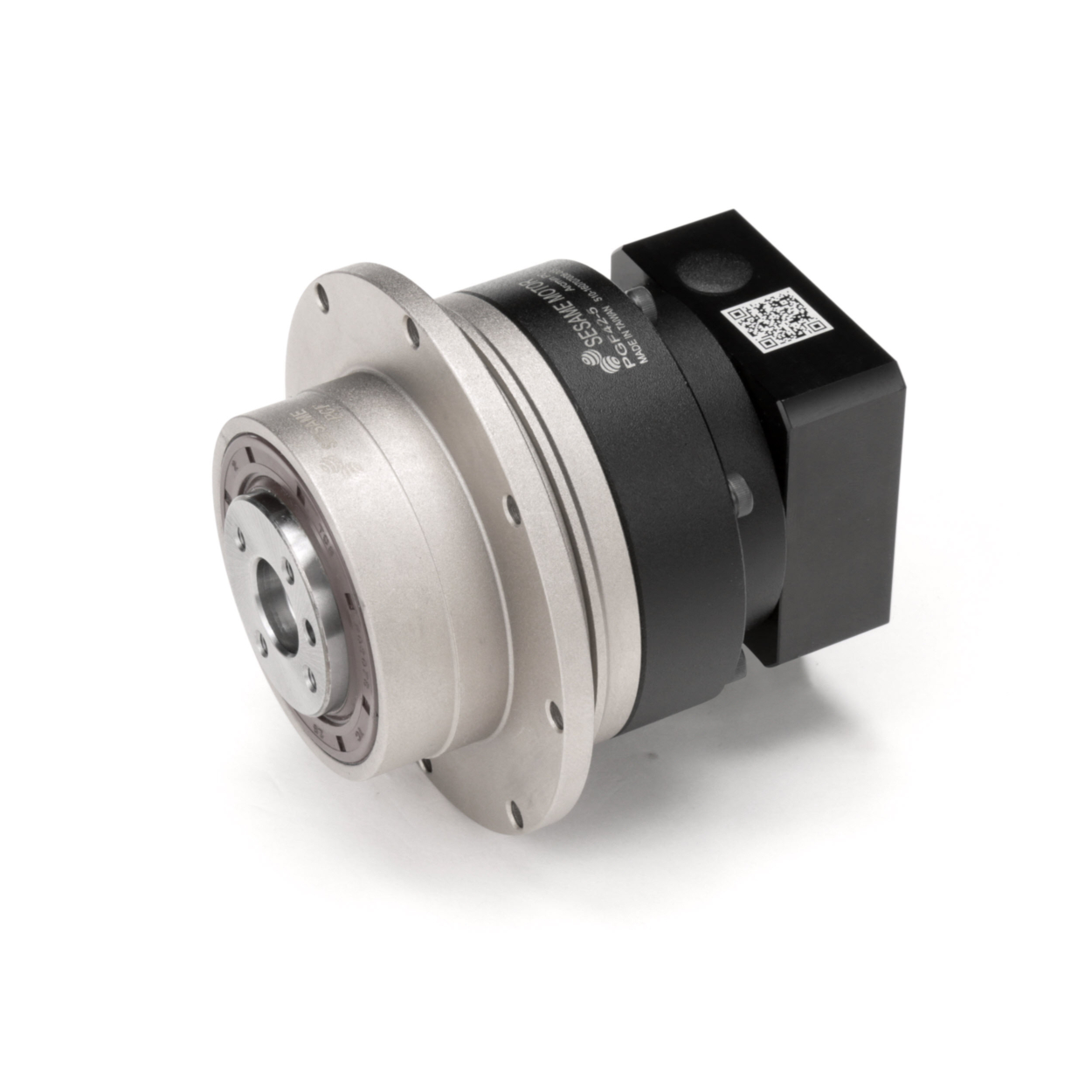

Other Models Available

Related Products

Click edit button to change this text.

Why Choose a Sesame Servo Gearhead?

Servo motors are used in a variety of machinery motion profiles to control position and speed. Regardless the accuracy required, or lack thereof, the same motor is often used.

The performance level of the gearhead, however, is an important consideration for achieving the desired goal at the most cost effective price. A different internal construction design can yield different results.

Sesame offers 4 performance levels with distinctive design characteristic options within each level. The wide range of available models allows the optimal product selection to achieve the desired performance, at the most value oriented price.

It’s this versatility in performance, design, mounting and price ranges that make the Sesame servo gearhead product line the ultimate resource for your specific requirements.

Sample Industries

  • Automation/Mechatronics
  • Communications
  • Custom Machinery
  • Food Processing
  • Material Handling
  • Medical
  • Packaging
  • Transportation Systems
