High Torque Servo Worm Gearheads

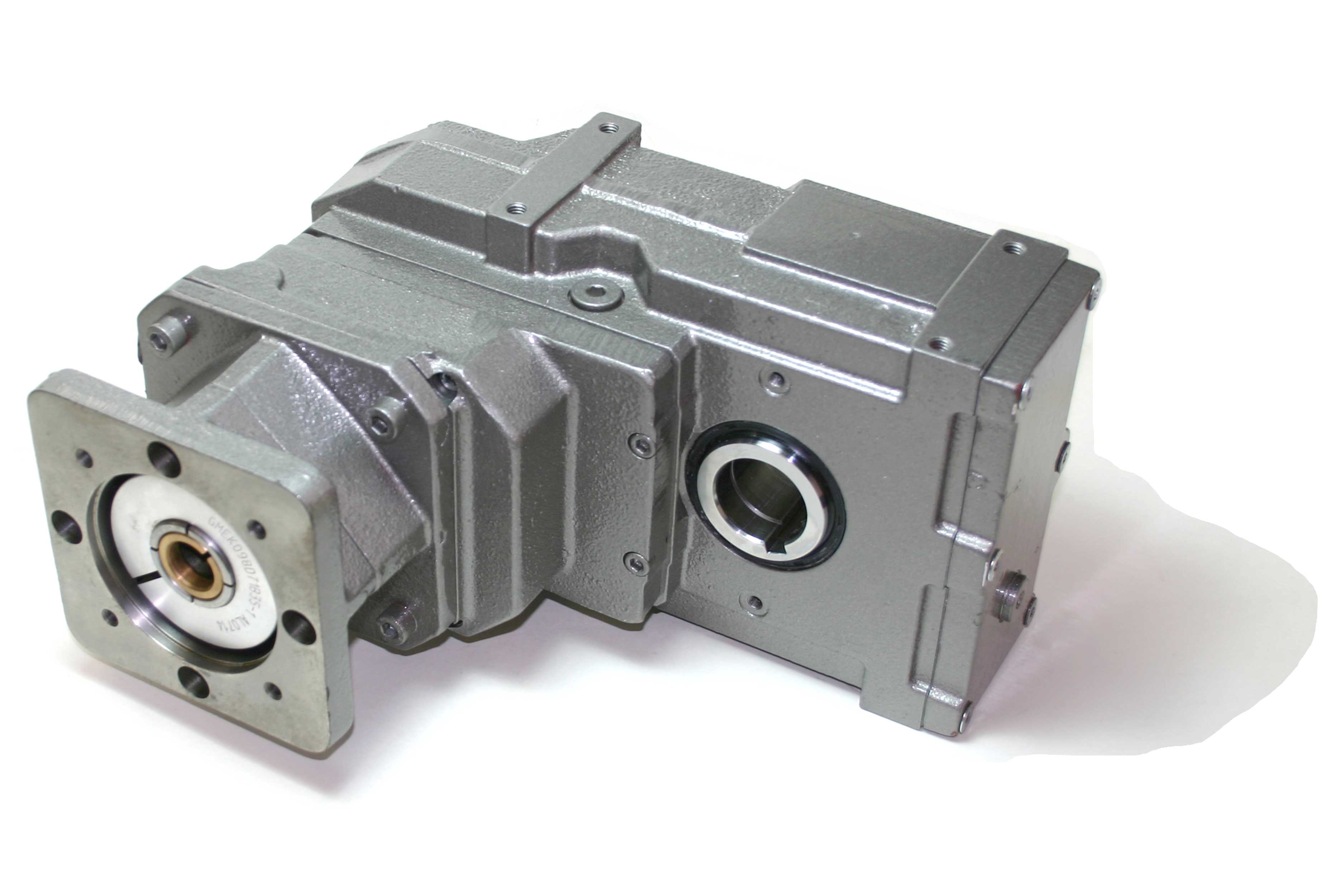

The S Series Helical Worm Servo Reducer provides unmatched performance, durability, and design flexibility. Evolving from our standard line of premium quality speed reducers, these gearheads offer torque capacities up to 1,300 Nm (960 ft lbs). This gearbox is ideal for high torque, moderately dynamic motion profiles at price points far below comparably sized Servo Bevel Planetary boxes.

  • Class 12 Helical and hardened and ground worm gears: provides higher efficiencies and greater torque capacity in smaller sizes.
  • Two servo input adapter styles available for either a smooth motor shaft or a keyed motor shaft configuration.
  • Multiple Output Options: Hollow bores and shrink disks for shaft mounting, inch and metric output shafts, mounting pilots and flanges offer a wide range of design solutions.
  • UNIBLOCK Housing: For maximum rigidity universal mounting on five sides or via a torque arm.
  • Low Backlash for Precise Motion: Backlash as low as 5 arc minutes is possible for quick response and accurate positioning.
  • 6 sizes
  • Gear ratios from 3:1 to 3,400:1
  • Torque capacities to 1,300 Nm (960 ft lbs)

What’s Next?

Other Models Available

Related Products

Click edit button to change this text.

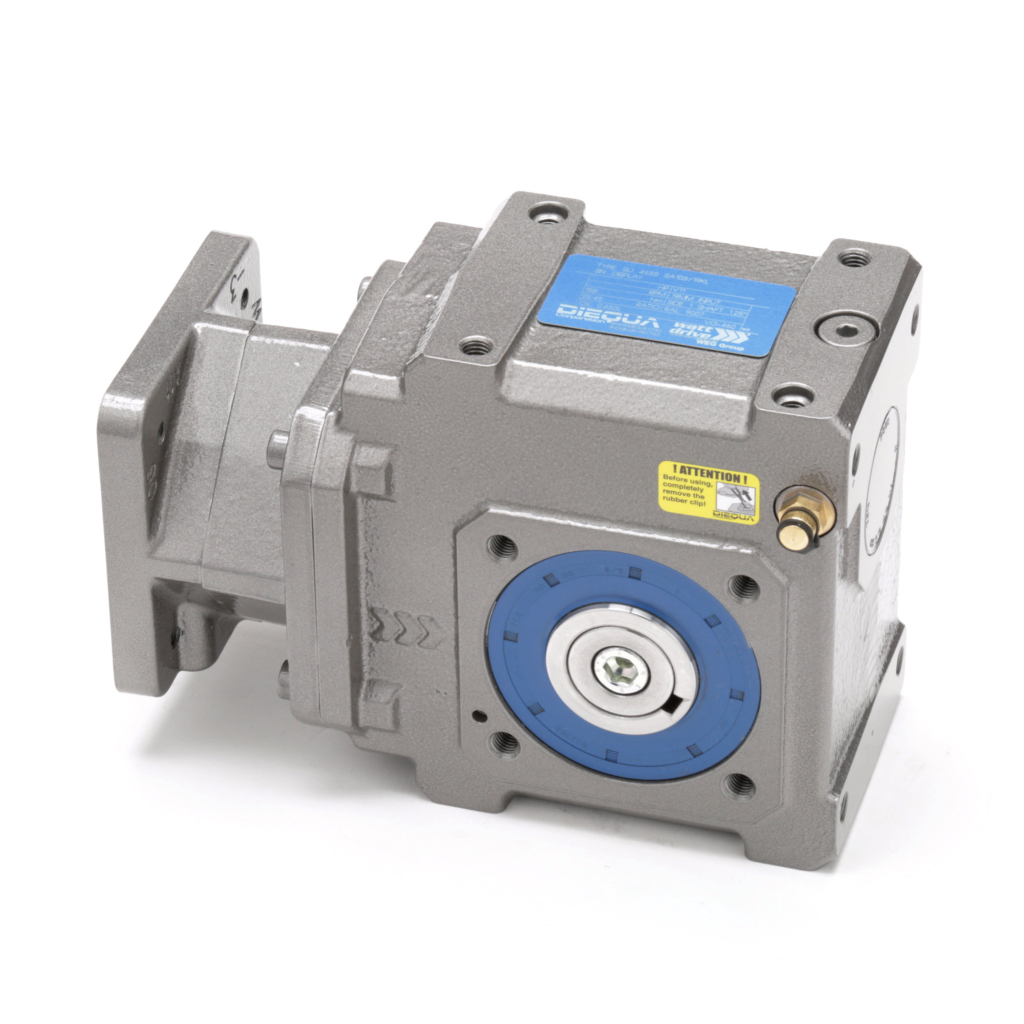

Mounting Options

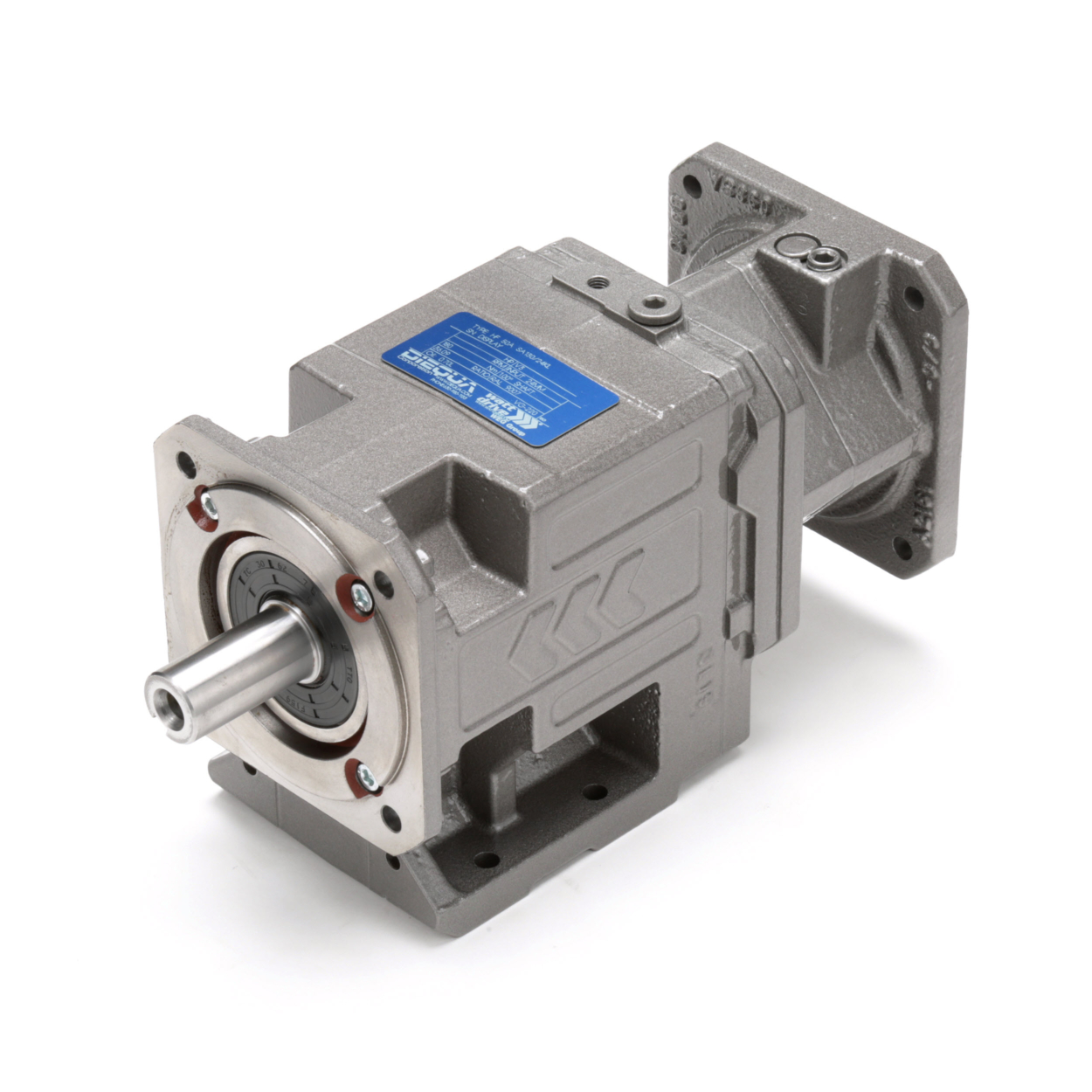

Output Shaft Options

Why Choose a High Torque Servo Gearhead?

The WATT modular drive system, know as the WATT MAS system, is only gearbox and gear-motor program built using a building block system. This unique construction style allows all the various types of gearboxes to use the same input gear sets and, in most cases, the same output hollow bores, solid shafts, and flanges. The input can be with either an integrated WATT EUSAS motor or a variety of adapters including IEC, NEMA, or Servo. The WATT EUSAS motor is another innovation from the WATT engineering team. This UL, CSA, CE and AEC certified motor is also built using the same modular building block system. All these motors are inverter duty rated and have multi volt/Hz terminal blocks. This allows one motor to be used virtually anywhere in the world without requiring different windings.  The back side of the motor has a modular end bell to accept brakes, encoders, or forced cooling by themselves or in any combination.

DieQua is the exclusive and only North American Assembly Center for the WATT MAS program. We have an extensive inventory to be able to react quickly to build, test, paint, and ship any standard product from the WATT MAS system. Using our own manufacturing capacity we are also uniquely capable of modifying or creating special designs. Call or email and let us create something for you.
