Sesame – PGF/PHF Rotary Flange Servo Gearheads

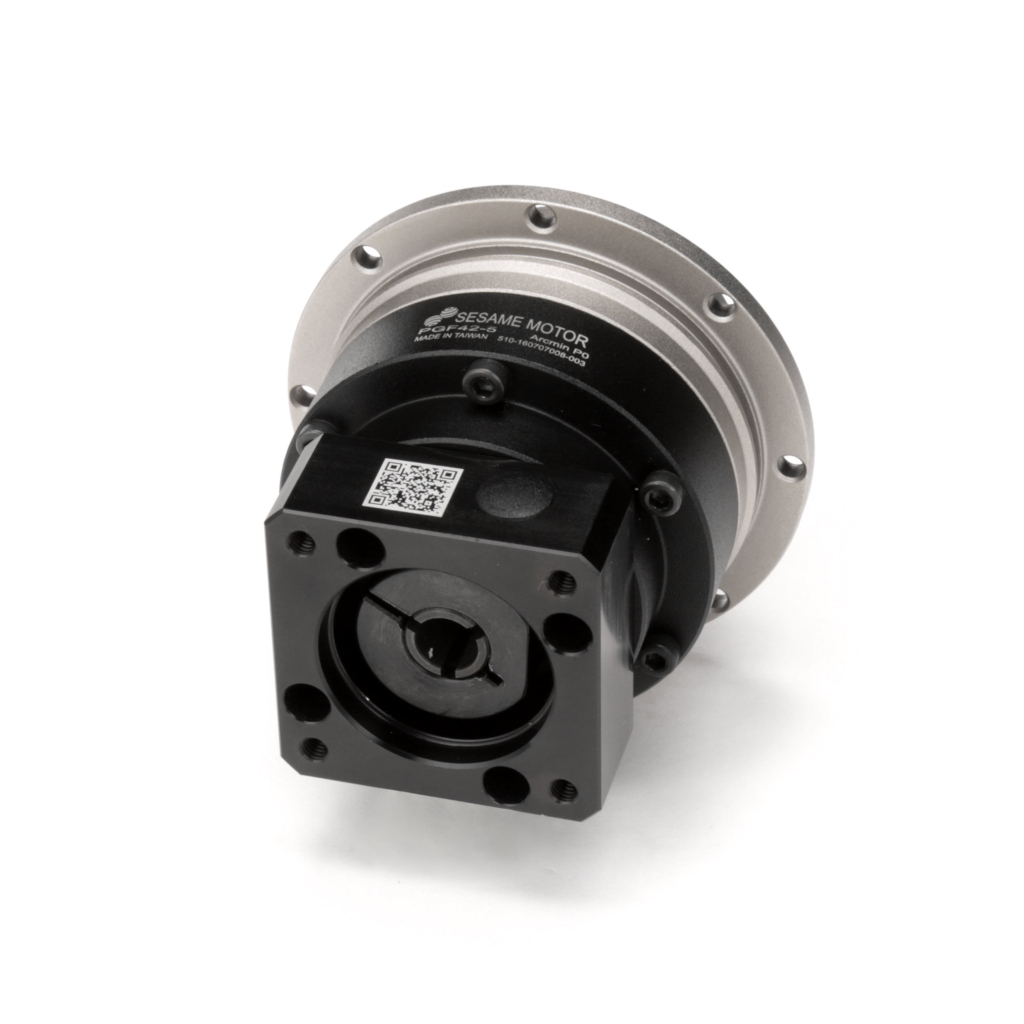

The PGF and PHF series of ISO 9409-1 compliant rotary flange helical bevel provide a wide range of performance levels to satisfy the full range of motion control application requirements.

  • Inline Configuration
  • Flanged Outputs: conforms to ISO-9409-1 robotic flange standards.
  • Torque Capacity Ranges: starting at 11 Nm through 2000 Nm.
  • Caged Planet Carrier: with precision Helical Planet gear sets
  • High performance, efficiencies and low acoustics.
  • Wide Range of Ratios: 5 single-stage and 9 two-stage ratios.
  • Square Servo and Step Motor input: accommodates size ranges 40 mm through 120 mm, with optional sizes in available.
  • Right angle configurations are also available in both the PGF and PHF Series.
  • 3 levels of backlash
  • Inline, flanged output configuration
  • PGF 4 frame sizes 42-115 mm
  • PHF 14 frame sizes 42-255 mm
  • Round output mounting flange
  • Ratios from 3:1 – 100:1

Output Bearing Delivers:

  • PGF’s angular contact ball bearings with bending moment capacity up to 6080 N, and axial load capacities up to 1580 N.
  • PHF’s Taper Roller Bearings with bending moment load capacity up to 21850 N, and axial load capacities up to 6080 N.
