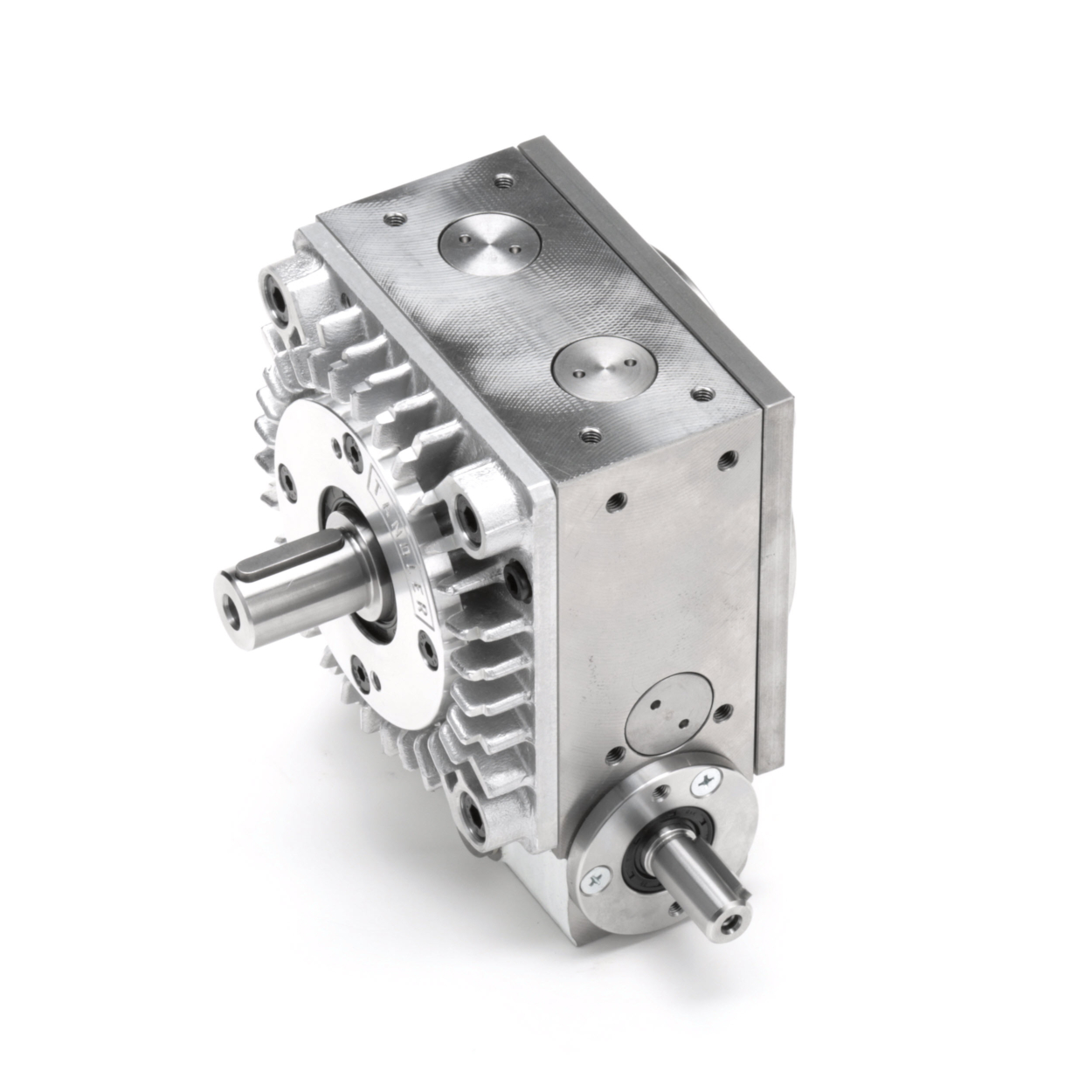

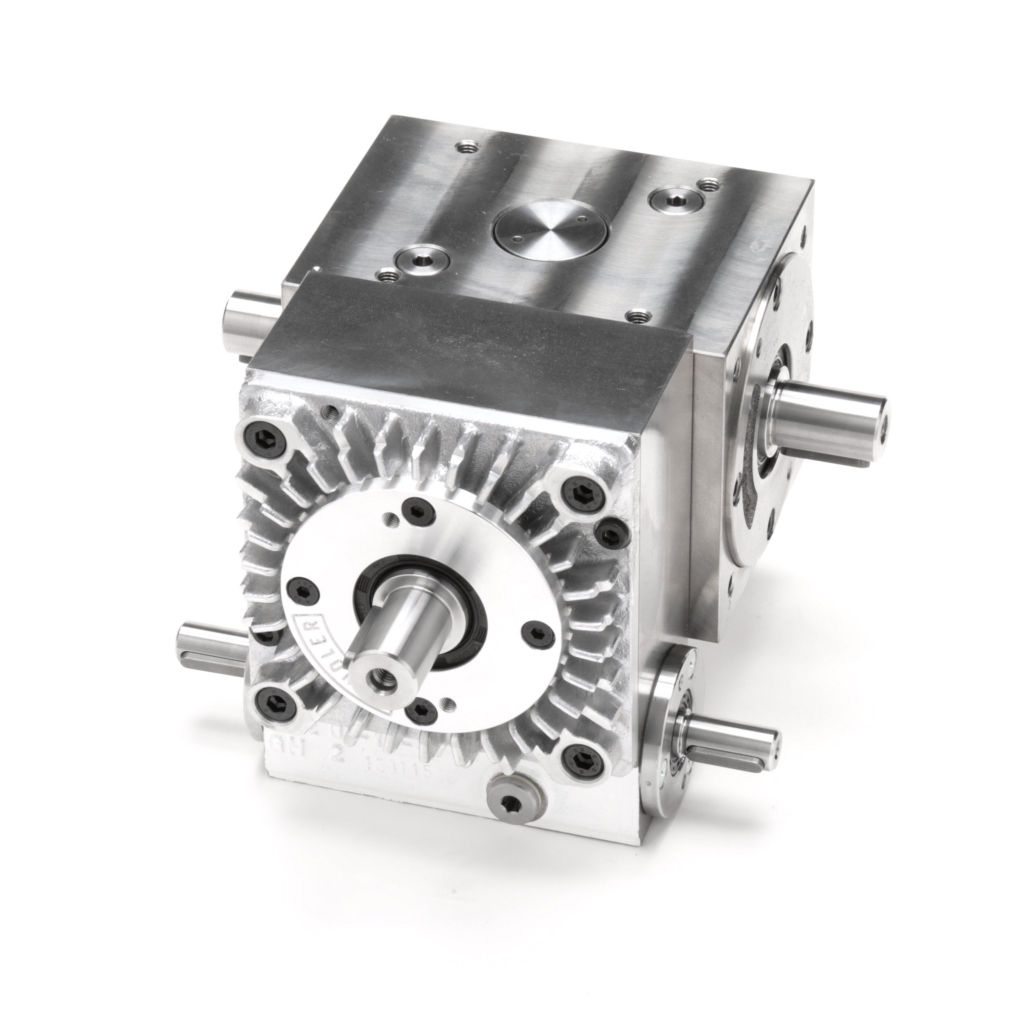

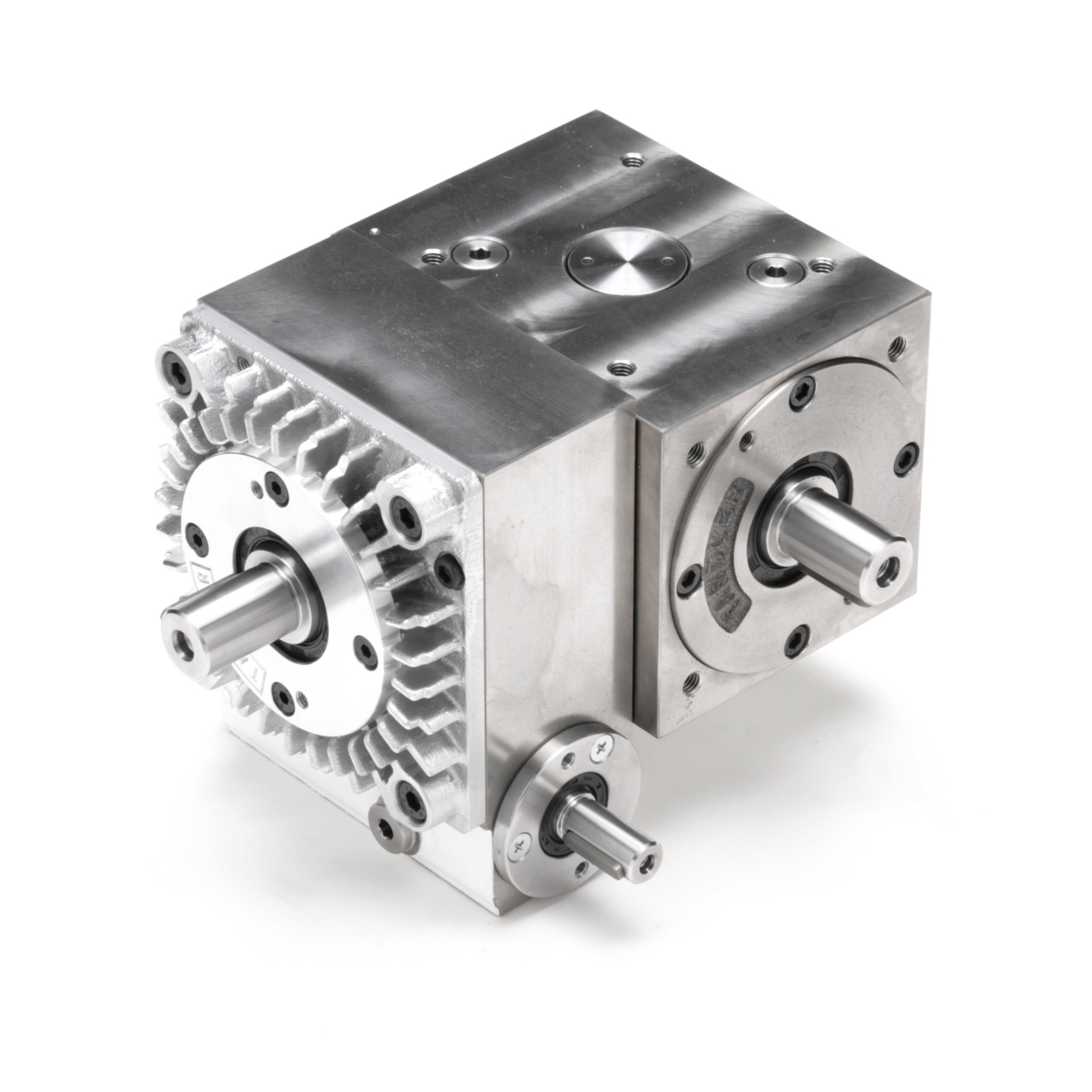

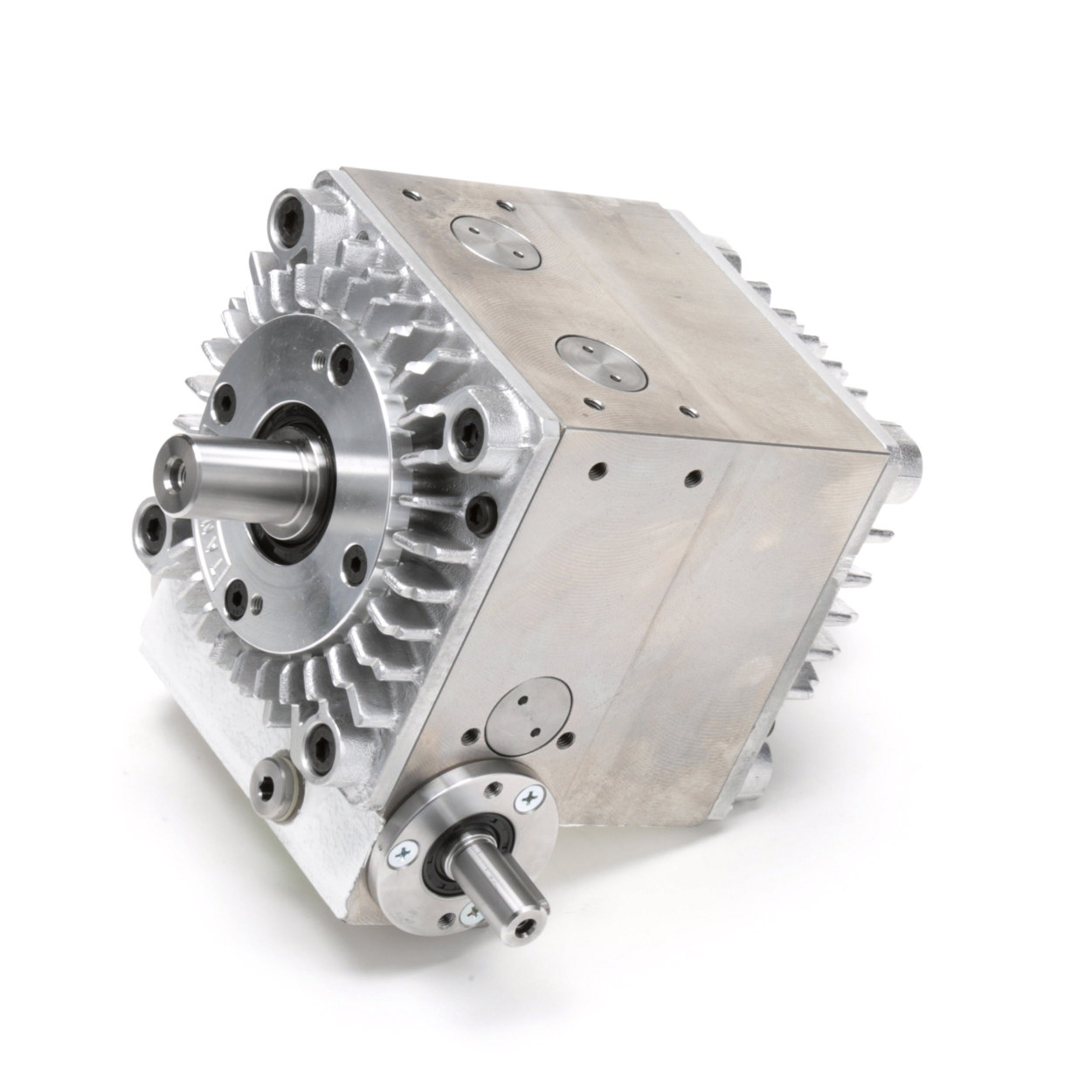

Tandler – Series SP2 Right Angle Shaft Phasing Gearboxes

Tandler right angle shaft phasing gearboxes are especially designed for applications requiring timing, positioning, registration or narrow-range speed control. Incremental output shaft angular phase changes and continuous 360 degree correction are possible. Low backlash models in right angle or inline designs are available.

  • Low Backlash – Less play in the system provides predictable motion control
  • Low Transmission Error – Precision gearing virtually eliminates velocity and position errors within a given revolution
  • Right Angle or Inline – Dual drive options and multiple shaft arrangements enhance design versatility
  • 360 Degree Correction – Allows for infinite adjustability in either direction
  • Machined Housing – Mounting is possible on 6 surfaces
  • Machined Flanges – Perfect for accurate shaft centering
  • Reversing Option – Manual or pneumatic control can declutch or reverse rotation
  • Power Capacities from 1 to 75 HP
  • Right angle ratios of 1:1, 1.5:1, 2:1, 3:1 and 4.5:1

What’s Next?

Other Models Available

Why Choose a Tandler Speed Correction Gearbox?

Speed correction gearboxes allow changes in the angular position of the output shaft relative to the input shaft, and provide the capability to vary the output speed within a narrow range. Through the integration of a secondary input shaft, extremely precise positioning and speed control can be easily achieved.

Sample Industries

  • Construction
  • Automation/Mechatronics
  • Chemical
  • Custom Machinery
  • Material Handling
  • Packaging
  • Printing/Converting
