Spiral Bevel Gearboxes

Tandler® Spiral Bevel Gearboxes offer the ultimate in performance and design versatility. They provide high precision for motion control and a rugged construction to withstand rigorous dynamics.

They are ideal for demanding applications requiring high speed, precise motion, low backlash, or special environmental conditions.

Benefits:

  • Low Backlash
  • High Durability
  • Wide Range of Models and Ratios
  • Completely Machined Housings
  • All Metric Dimensions
  • Custom Designs Available

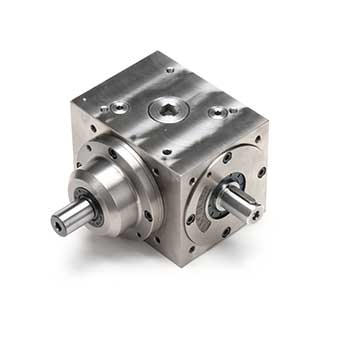

Standard Design

The standard design is offered in 9 sizes and 11 ratios, with single or dual output shafts.

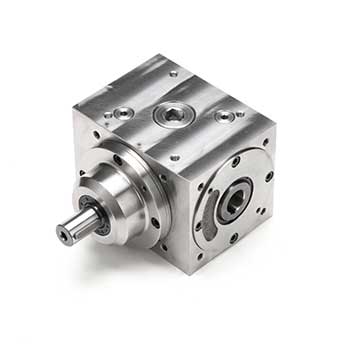

Hollow Output Shaft

The HW series offers multiple output options including bore with keyway, 2 spline profiles, or a shrink disc.

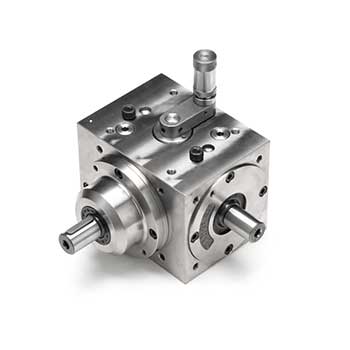

Reversing & Disengaging

The S, AS, and W series allows manual drive disengagement or direction reversing in right angle and inline configurations.

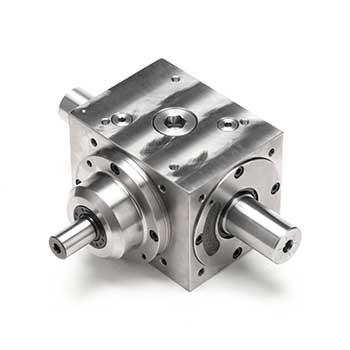

Reinforced Shaft

A bevel gearbox with reinforced shaft is commonly used in line-shaft drive applications where only a proportion of the full torque is taken off the main drive shaft at various intervals.

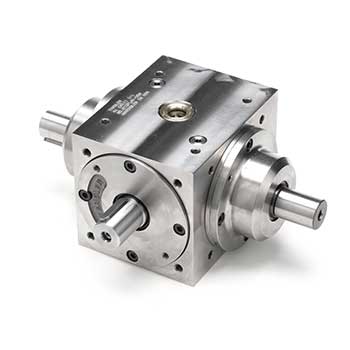

Auxiliary Shaft Design

The EA and ZA series provides additional power take-off shafts either in the same, or different planes.

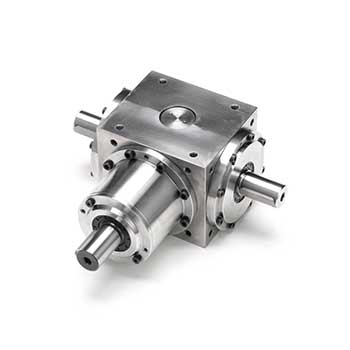

High Torque Density – Power Master

A different internal design offers higher torque density and more robust design for demanding industrial applications.

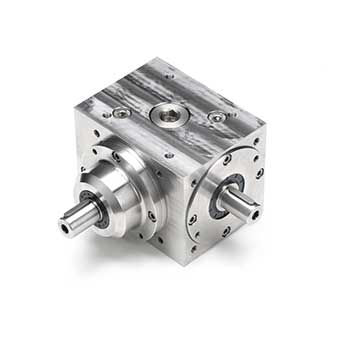

Stainless Steel

The VA series is a complete stainless steel design for high performance or precise motion control requirements.
