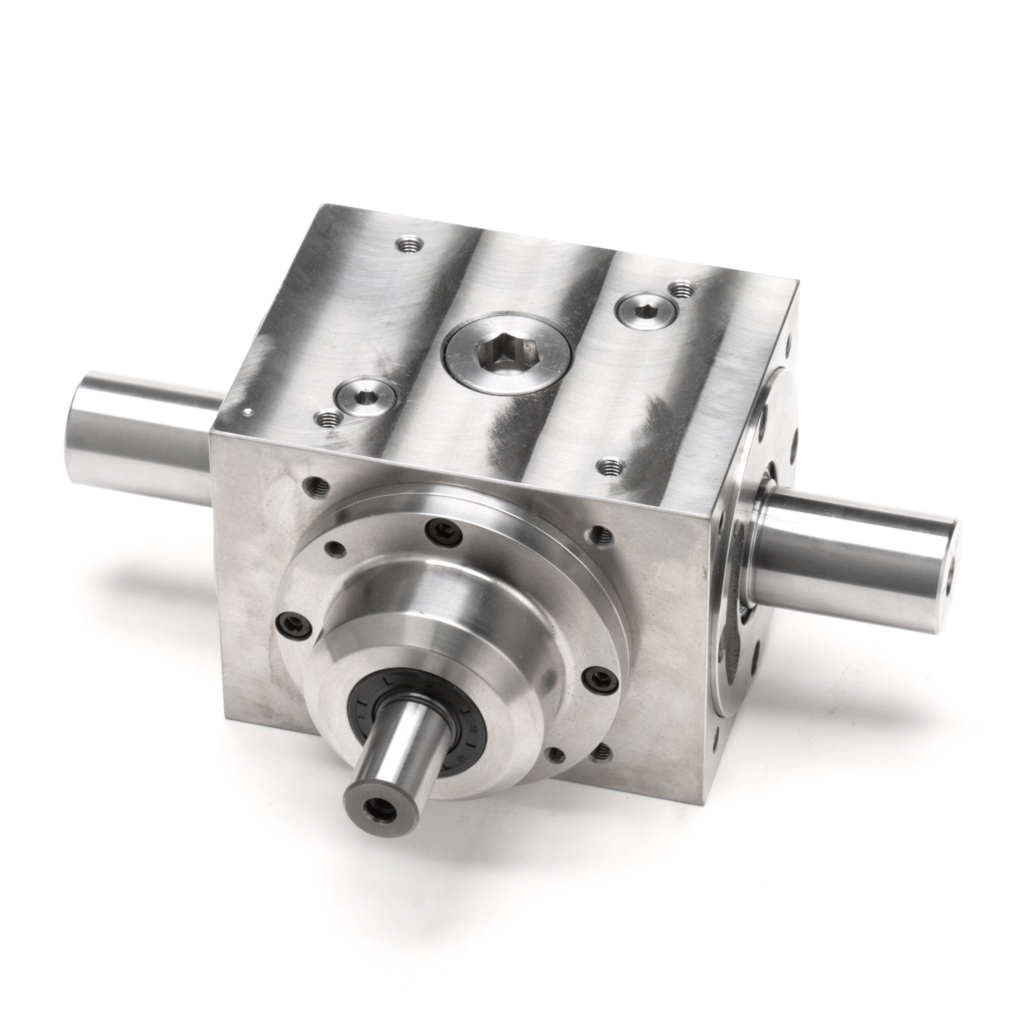

Tandler – Reinforced Shaft Spiral Bevel Gearbox

The Tandler spiral bevel gearbox with reinforced shaft is commonly used in line-shaft drive applications where only a proportion of the full torque is taken off the main drive shaft at various intervals. Because the full torque is not transmitted through the gears, smaller more cost effective gearboxes can be utilized.

  • Low Backlash: Hardened and lapped matched set gearing provide smooth, reliable and predictable rotary motion
  • Universal Mounting: Machined housing and tapped holes allow mounting on all six sides
  • Machined Flanges: Provides alignment for perfect shaft centering
  • Bearing Options: Ball bearings for quiet operation, tapered bearings for higher radial load capacity
  • Special Designs: Standard models can be modified for maximum design versatility
  • Power capacities from 1 – 300 HP
  • 11 reducing ratios from 1:1 to 6:1
  • 4 increasing ratios from 1:1.25 to 1:2
  • Standard backlash of 5 – 6 arc minutes
  • Reduced backlash available

What’s Next?

Other Models Available

Related Products

Click edit button to change this text.

Why Choose a Tandler Spiral Bevel Gearbox?

Tandler® spiral bevel gearboxes give you a wide selection of interface options and output configurations, for unsurpassed design flexibility. They are ideal for demanding applications requiring high speed, precise motion, low backlash, or special environmental conditions.

Sample Industries

  • Construction
  • Automation/Mechatronics
  • Communications
  • Custom Machinery
  • Food Processing
  • Material Handling
  • Packaging
  • Printing/Converting
  • Transportation Systems
