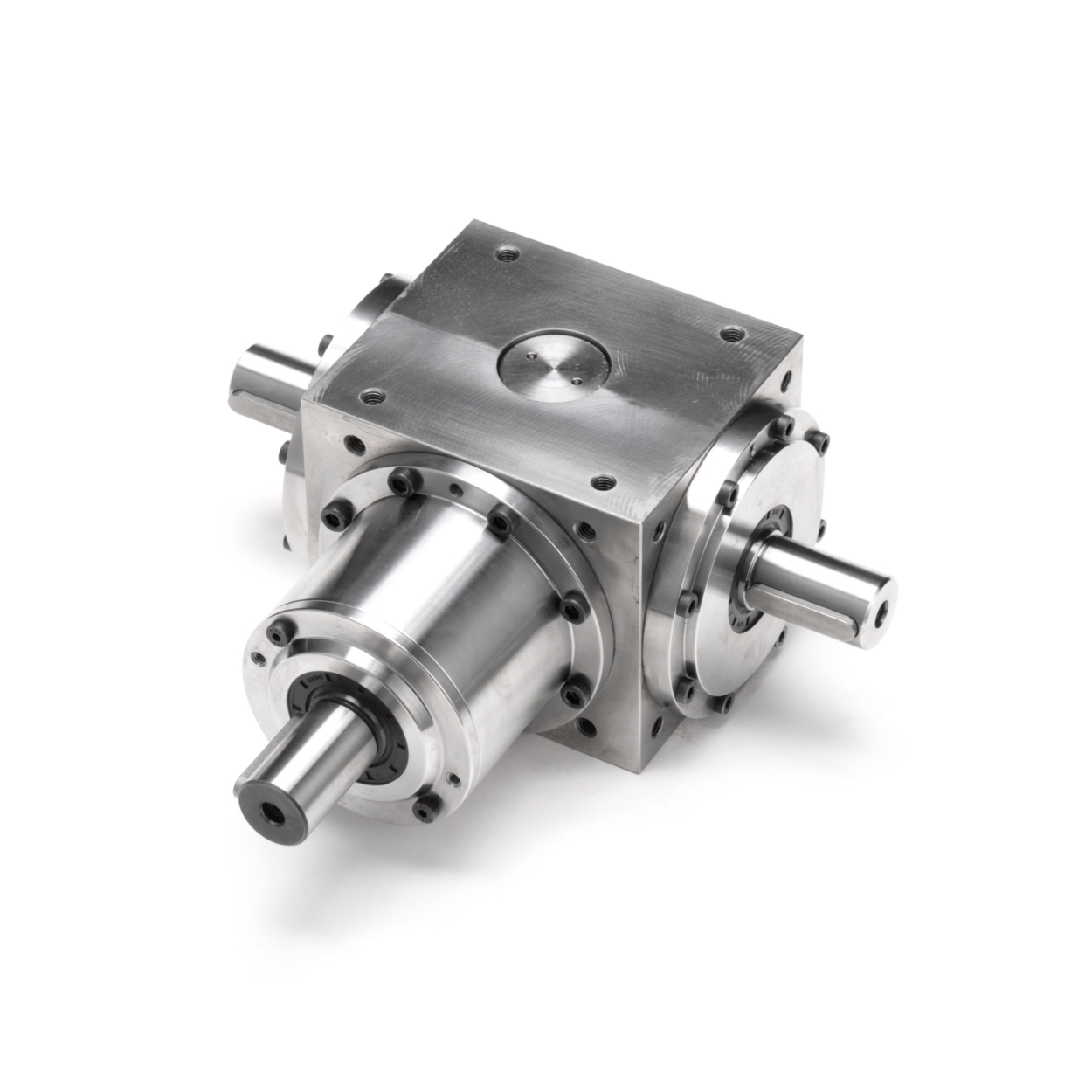

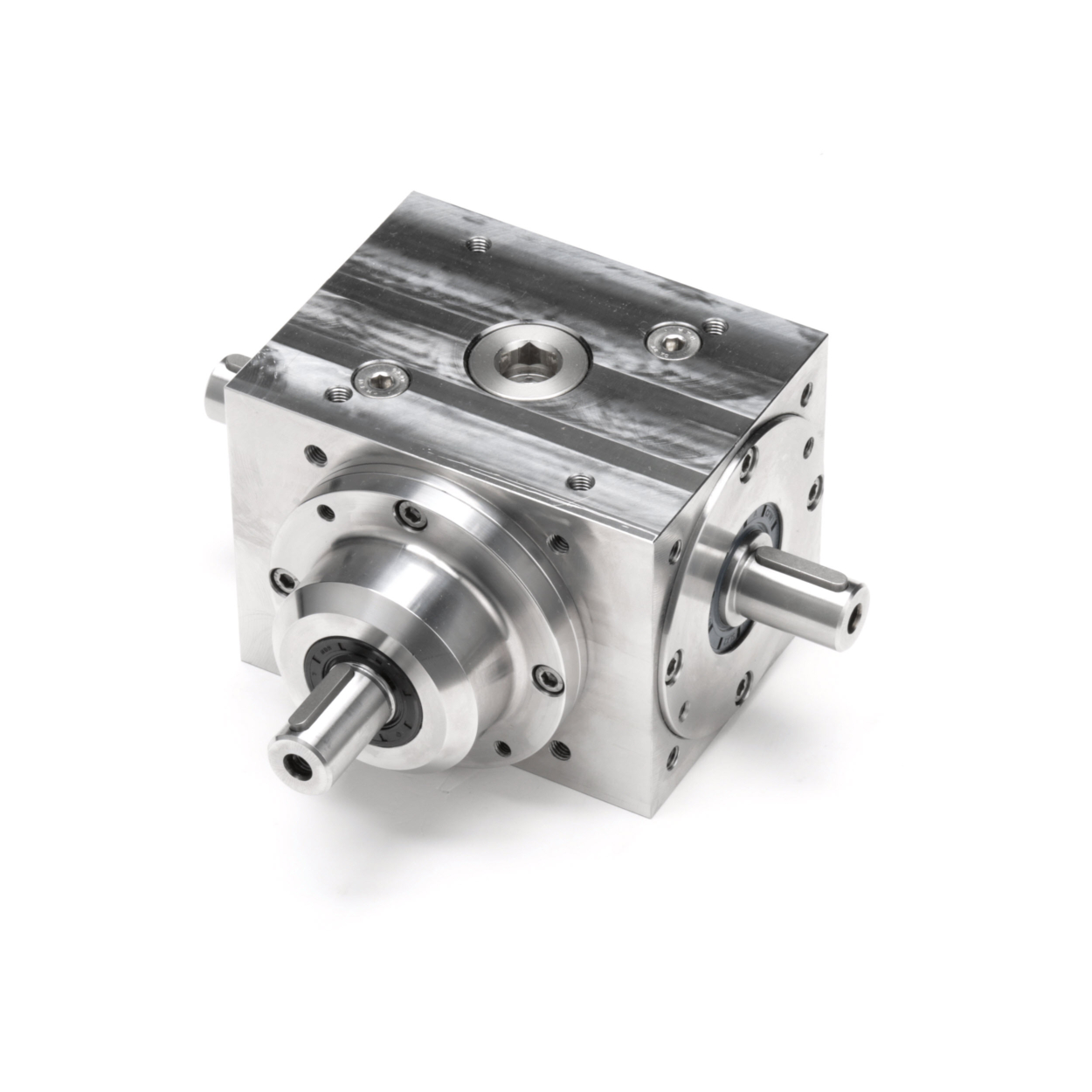

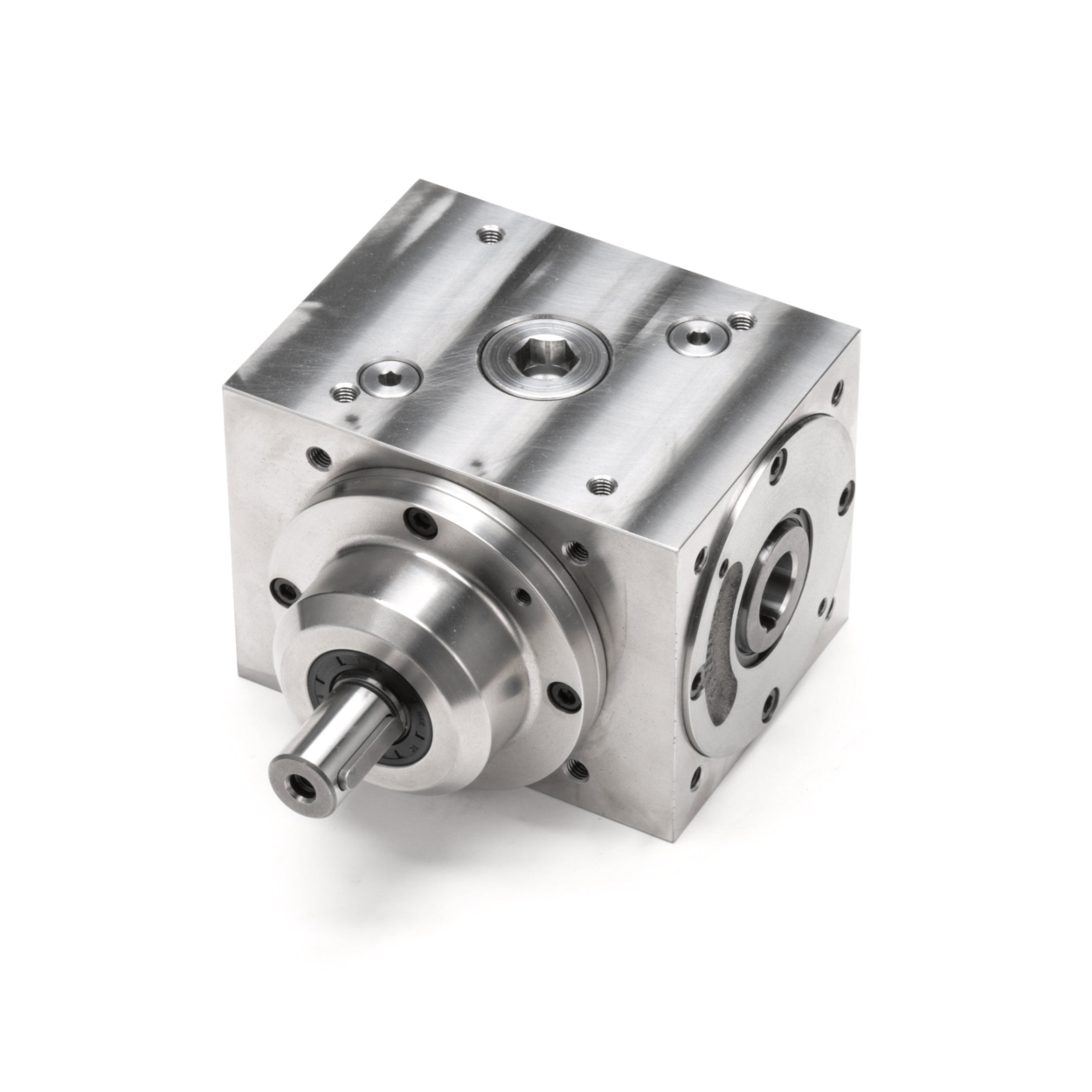

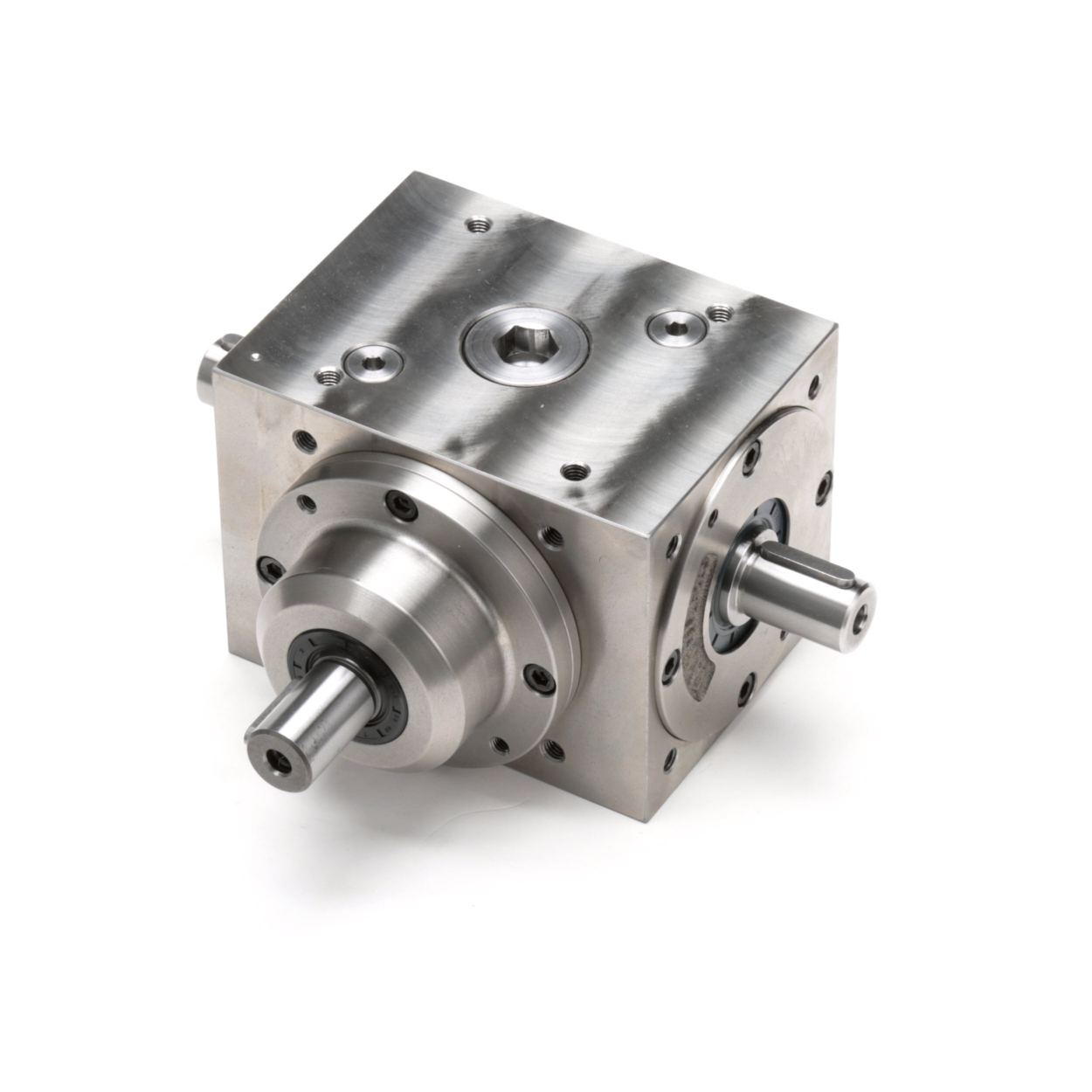

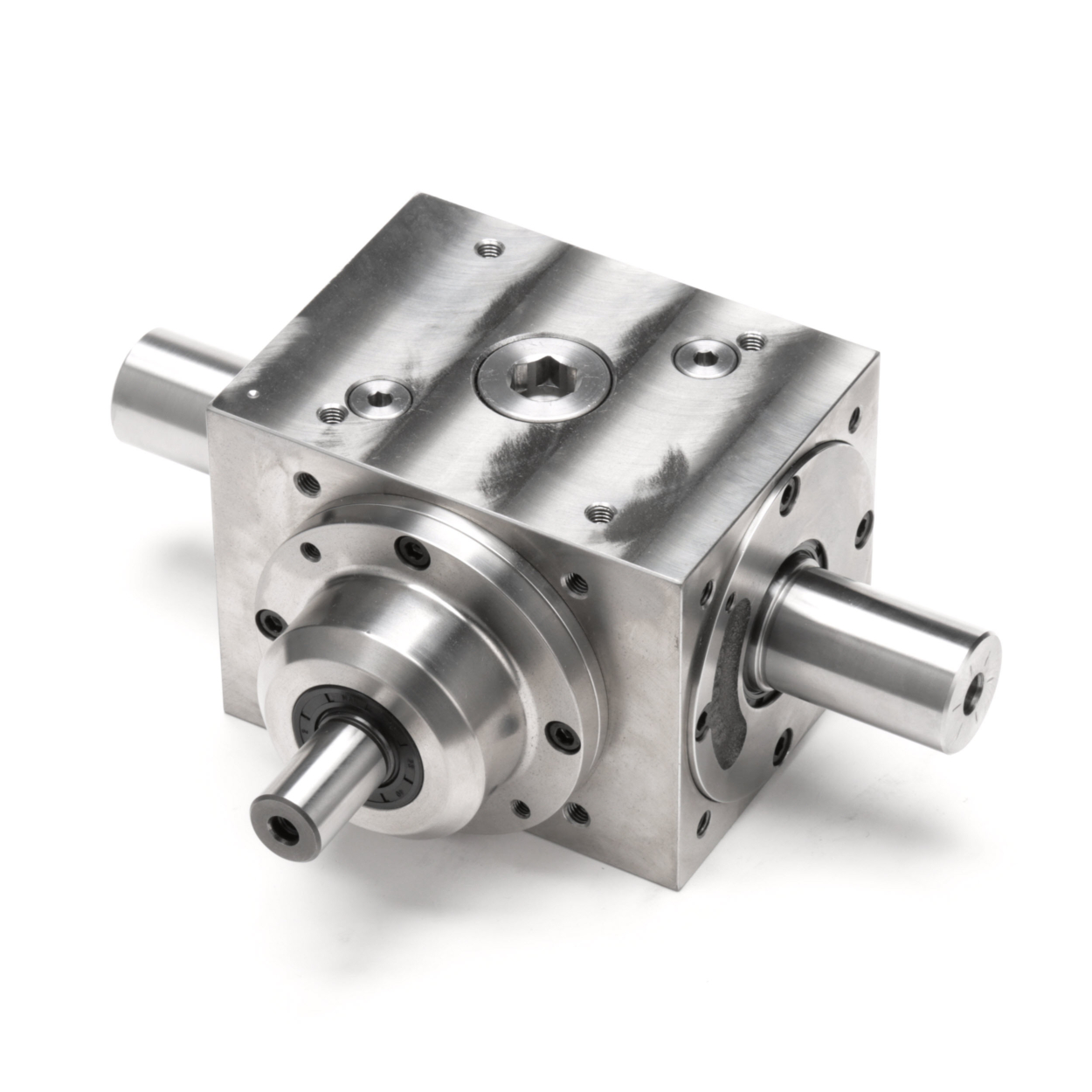

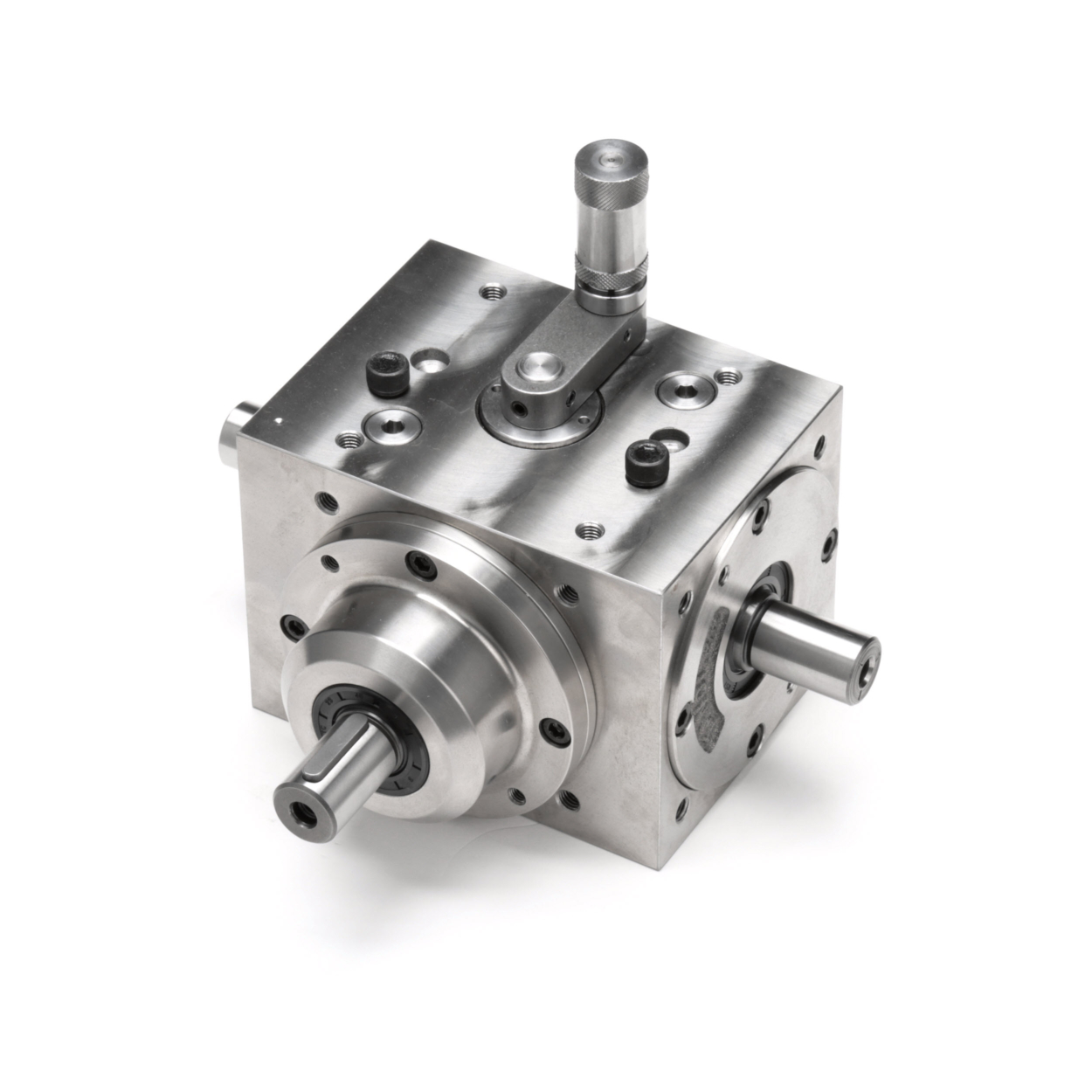

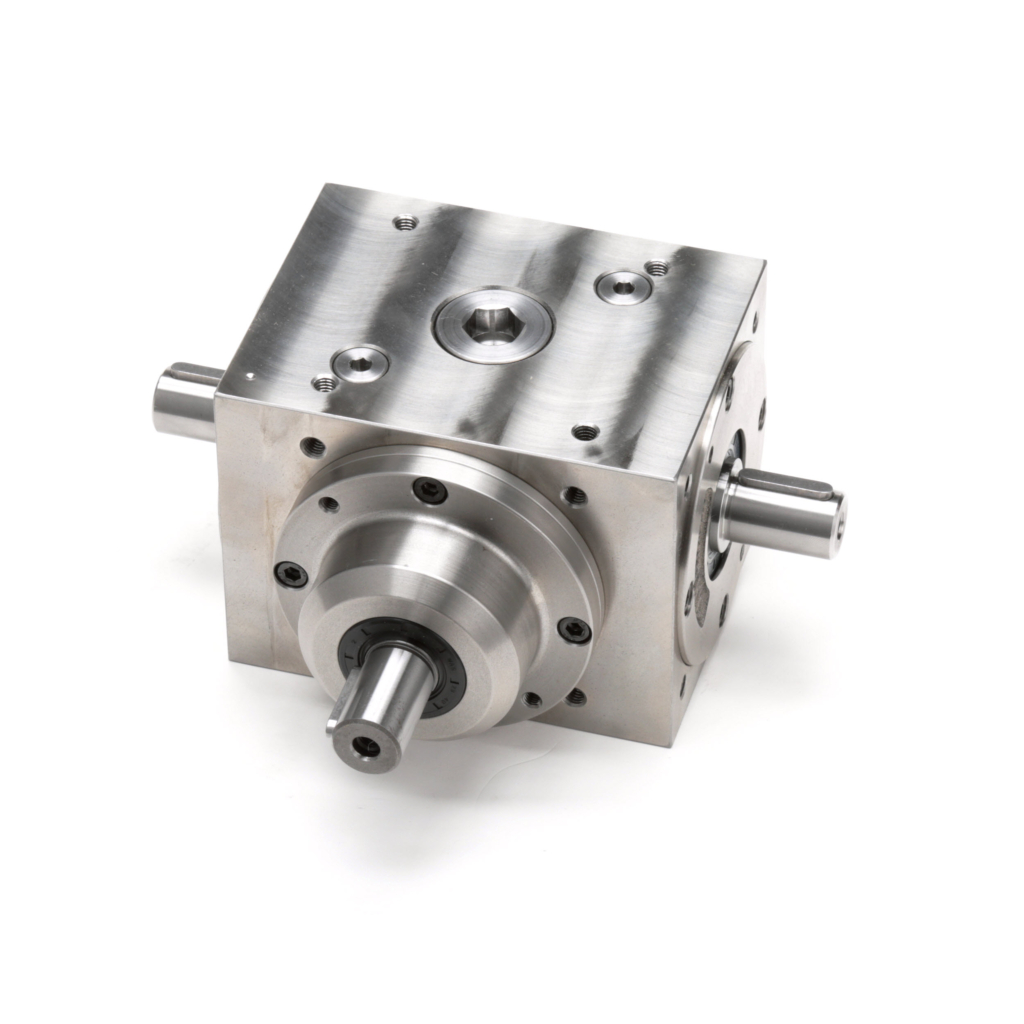

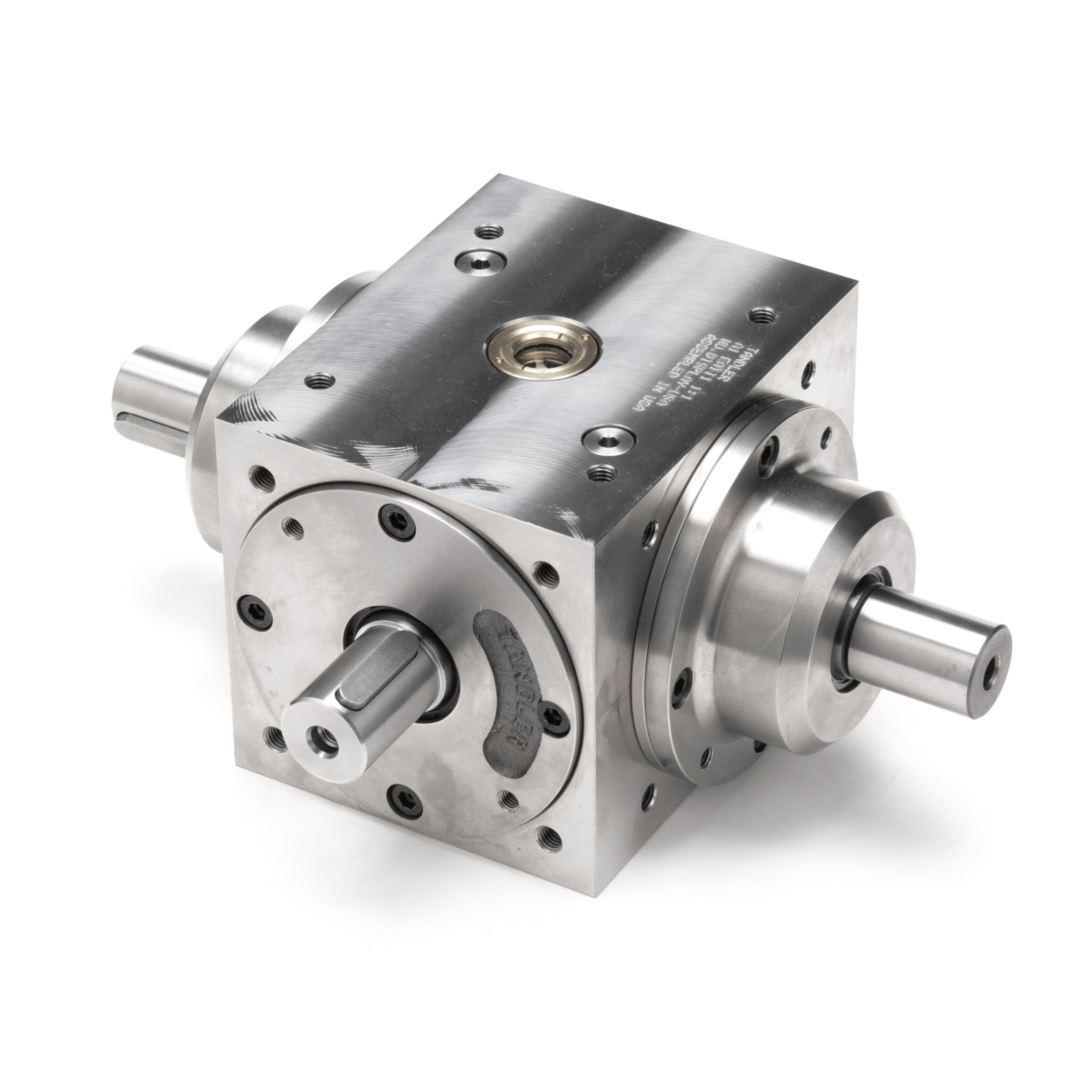

Tandler – Right Angle Spiral Bevel Gearbox

Tandler spiral bevel gearboxes offer low backlash and low transmission error for precise power transmission. Input and output options include standard shafts, hollow shafts, and mounting flanges. Auxiliary shafts for power takeoffs, reversing, and disengaging designs are also available.

  • Low Backlash: Hardened and lapped matched set gearing provide smooth, reliable and predictable rotary motion
  • Universal Mounting: Machined housing and tapped holes allow mounting on all six sides
  • Machined Flanges: Provides alignment for perfect shaft centering
  • Bearing Options: Ball bearings for quiet operation, tapered bearings for higher radial load capacity
  • Special Designs: Standard models can be modified for maximum design versatility
  • Power capacities from 1 – 300 HP
  • 11 reducing ratios from 1:1 to 6:1
  • 4 increasing ratios from 1:1.25 to 1:2
  • Standard backlash of 5 – 6 arc minutes
  • Reduced backlash available

What’s Next?

Other Models Available

Related Products

Click edit button to change this text.

Why Choose a Tandler Spiral Bevel Gearbox?

Tandler® spiral bevel gearboxes give you a wide selection of interface options and output configurations, for unsurpassed design flexibility. They are ideal for demanding applications requiring high speed, precise motion, low backlash, or special environmental conditions.

Sample Industries

  • Construction
  • Automation/Mechatronics
  • Communications
  • Custom Machinery
  • Food Processing
  • Material Handling
  • Packaging
  • Printing/Converting
  • Transportation Systems
