DieQua’s High Precision Series E Cycloidal Reducers

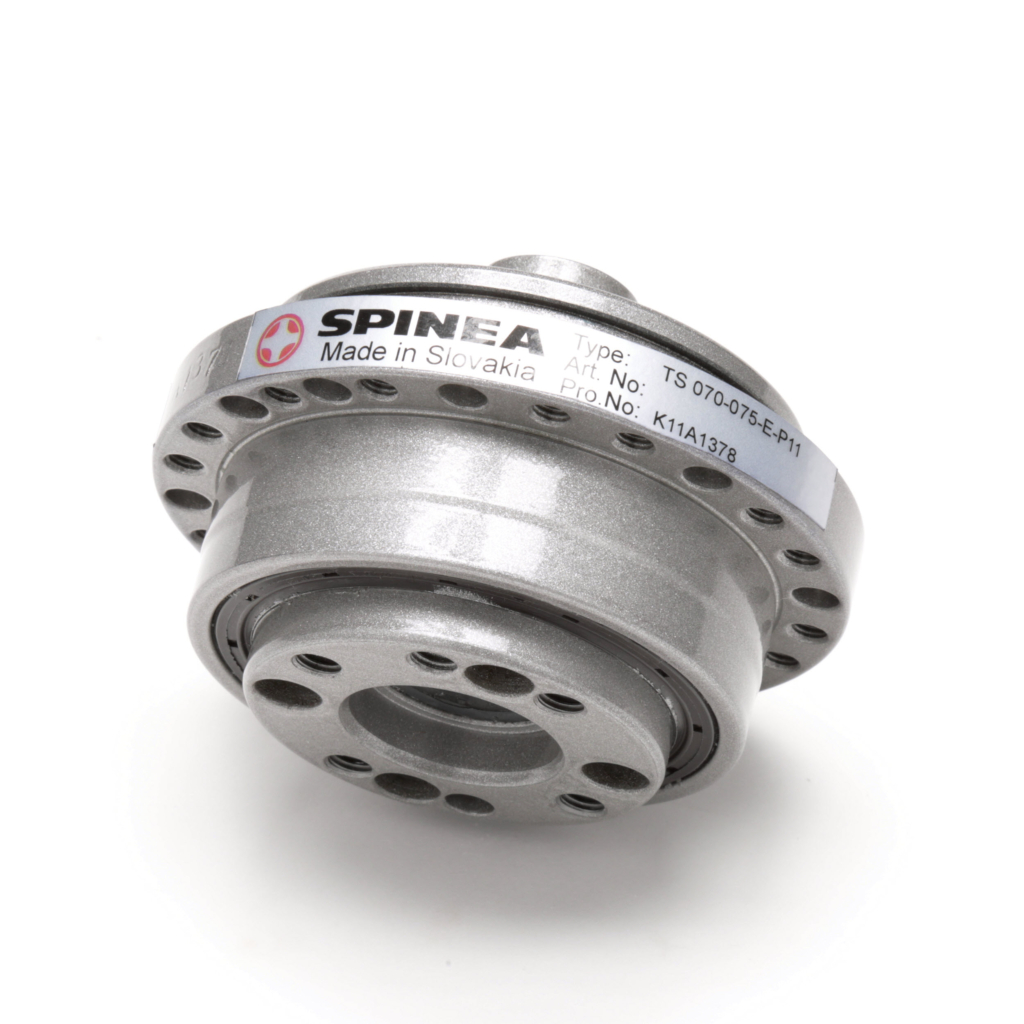

DieQua’s High-Precision Series E Cycloidal Gearbox Design
This cycloidal gearbox design also allows the load to be mounted to the output flange or case. This unit can be piloted on the outer diameter and the case has through-hole mounting. An input flange and gasket kit are required for sealing the cycloidal gearbox design.
- 7 Sizes from 70 – 220 mm
- Ratios from 33:1 – 169:1
- Nominal torque from 50 to 1250 Nm
- ISO 9409-1 compliant mechanical interface
- Zero-Backlash Cycloidal Gearbox Design
- High-Tilting Moment Capacity; 142 to 4400 Nm.
- High-Positioning Accuracy <1 arc min.
- High-Positioning Repeatability±15 arcseconds Angular transmission error.
- High-Torsional Stiffness from 8 through 310 Nm/arcmin.
- High-Tilting Stiffness from 142 through 4400 Nm/arc min.
- High-Radial Force from 2800 N to 22500 N.
- High-Axial Force from 4100 N to 35500 N.
What’s Next?
Other Models Available
Application Examples
Why Choose a DieQua Cycloidal Reducer?
High productivity manufacturing requires automation systems that are highly accurate and extremely repeatable. Standard gear products, like planetary gearheads, rarely have the backlash control or torsional rigidity to perform as necessary. This is especially true in robotics, machine tool, medical, communication and some military applications.
There are a few devices available that provide many of the characteristics required for these types of applications. But none provide the torque density, rigidity and backlash control that is available from Spinea through DieQua. With some of the best delivery times in this market, you’ll actually be able to take advantage of the high performance features without having to wait for the seasons to change.
