DieQua’s High Precision Series G Cycloidal Reducers
DieQua’s High Precision Series G Cycloidal Reducers

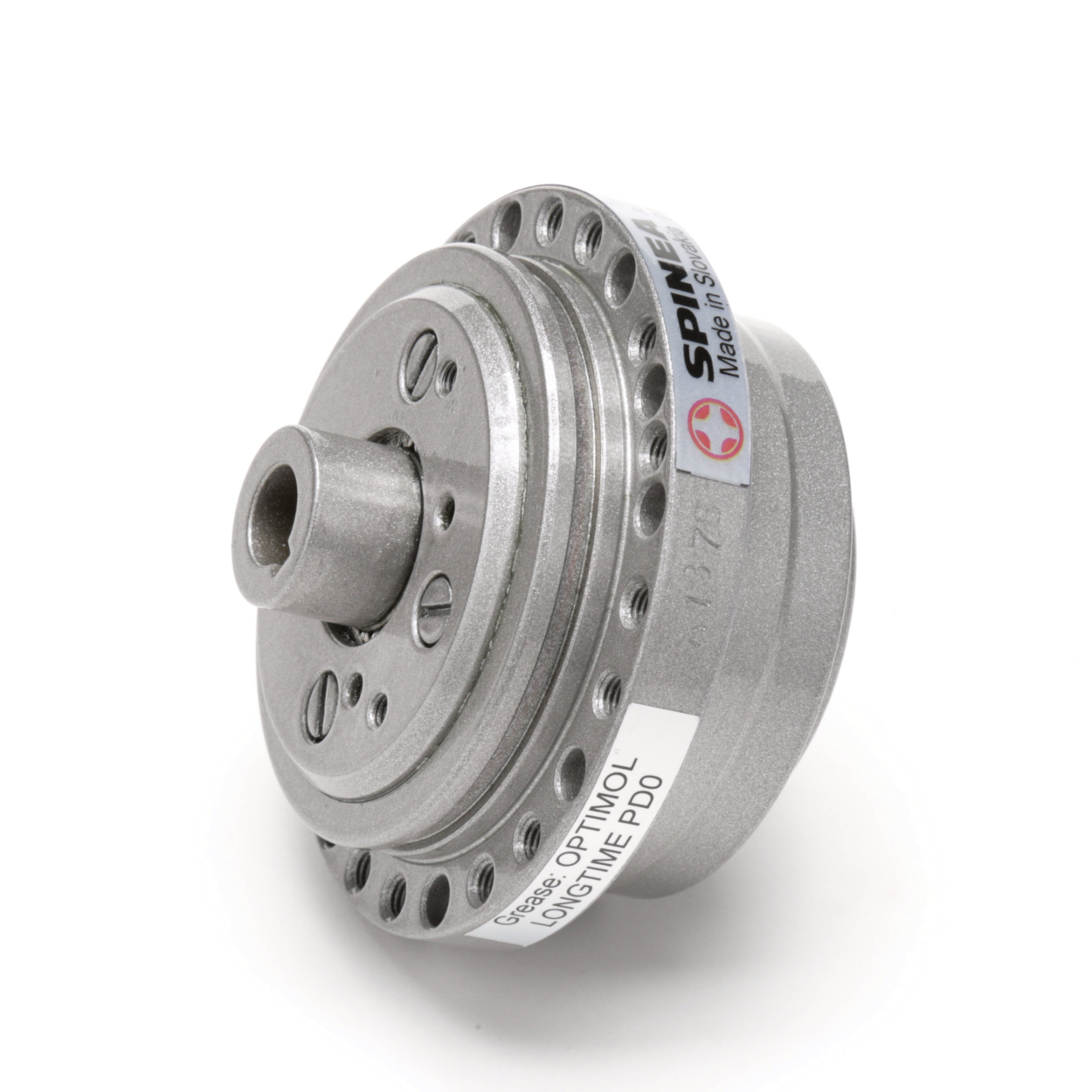

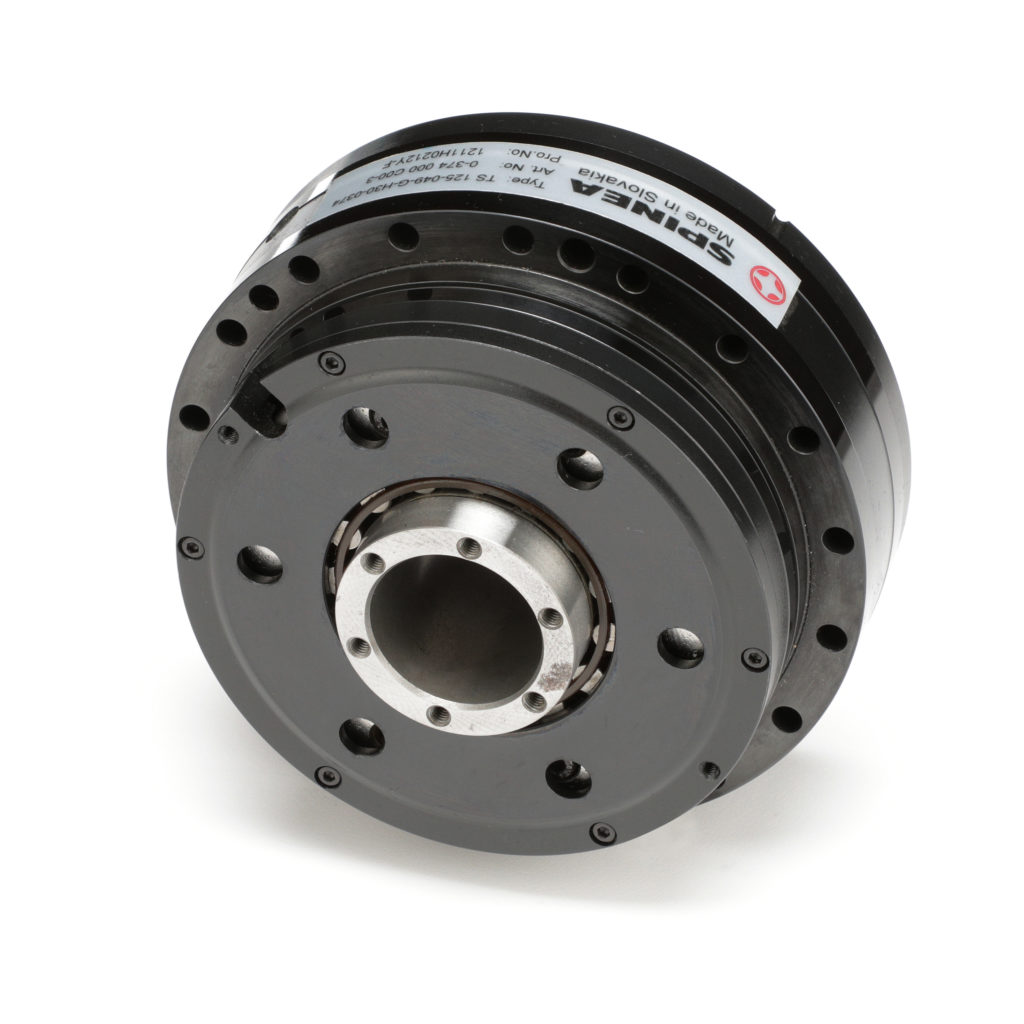

G-Series incorporates TwinSpin’s patented internal transmission designs common to all DieQua’s Cycloidal speed reducers, featuring new designs that deliver up to 71% increased torque to weight ratio, with tilting stiffness increased by 41%.
The TwinSpin series boasts the smallest cycloidal speed reducers available on the market, featuring cross roller and taper roller bearings, low inertia high-speed input shaft, delivering superior Radial, Axial and bending moment load capacities.
- 7 sizes from 75 – 225 mm
- Torque from 35 Nm to 1270 Nm
- Ratios from 33:1 to 139:1
- Rated input speed of 2000 RPM
- Acceleration and braking torque 70 – 3175 Nm
- Torsional stiffness 8.1 – 308 Nm/arcmin
- Zero Backlash
- High Tilting Moment Capacity; 190 to 4380 Nm.
- High Positioning Accuracy <1 arc minute.
- High Positioning Repeatability ±15 arcseconds Angular transmission error
- High Torsional Stiffness from 7.5 through 290 Nm/arc min.
- High Moment Stiffness from 70 through 2300 Nm/arc min.
What’s Next?
Other Models Available
Why Choose a DieQua Cycloidal Reducer?
High productivity manufacturing requires automation systems that are highly accurate and extremely repeatable. Standard gear products, like planetary gearheads, rarely have the backlash control or torsional rigidity to perform as necessary. This is especially true in robotics, machine tool, medical, communication and some military applications.
There are a few devices available that provide many of the characteristics required for these types of applications. But none provide the torque density, rigidity and backlash control that is available from Spinea through DieQua. With some of the best delivery times in this market, you’ll actually be able to take advantage of the high performance features without having to wait for the seasons to change.
