DieQua’s High Precision Series H Cycloidal Reducers
DieQua’s High Precision Series H Cycloidal Reducers

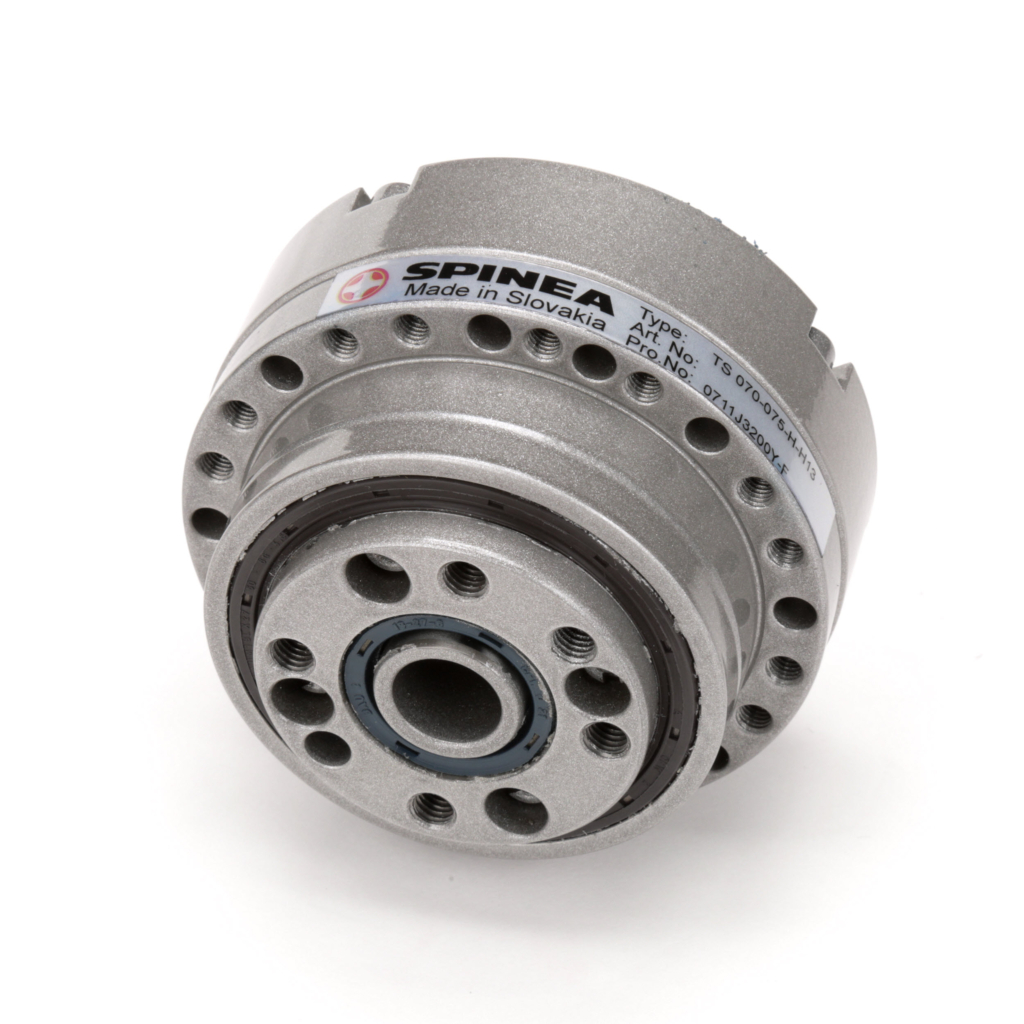

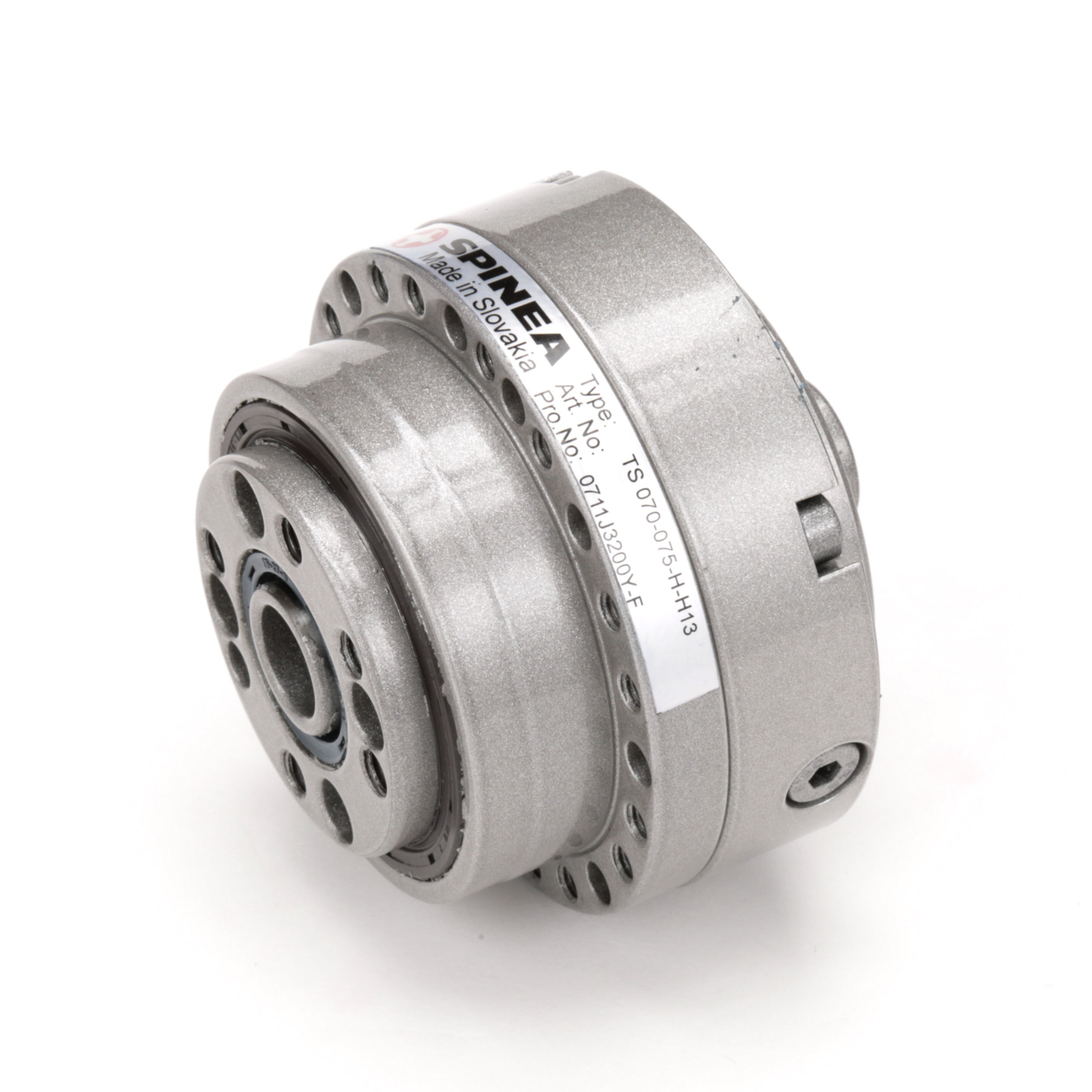

This series is similar in mounting configuration to Series E with the added benefit of a hollow clearance bore to allow cables, tubes, etc. to be passed through. This unit is completely sealed.
The TwinSpin reducer series is the smallest cycloidal available on the market, featuring dual cross roller bearings, low inertial high speed input shaft, and superior Radial, Axial and bending moment load capacities.
- 5 sizes from 70 – 220 mm
- Torque from 50 Nm to 1100 Nm
- Ratios from 55:1 to 125:1
- Rated input speed of 2000RPM
- Acceleration and braking torque 100 – 2000 Nm
- Tilting stiffness 35 – 2400 Nm
- ISO 9409-1 compliant mechanical interface
- Zero Backlash
- High Tilting Moment Capacity; 107 to 12000 Nm.
- High Positioning Accuracy <1 arc minute.
- High Positioning Repeatability ±15 arcseconds Angular transmission error
- High Torsional Stiffness from 7.5 through 290 Nm/arc min.
- High Tilting Stiffness from 35 through 2400 Nm/arc min.
What’s Next?
Other Models Available
Application Examples
Why Choose a DieQua Cycloidal Reducer?
High productivity manufacturing requires automation systems that are highly accurate and extremely repeatable. Standard gear products, like planetary gearheads, rarely have the backlash control or torsional rigidity to perform as necessary. This is especially true in robotics, machine tool, medical, communication and some military applications.
There are a few devices available that provide many of the characteristics required for these types of applications. But none provide the torque density, rigidity and backlash control that is available from Spinea through DieQua. With some of the best delivery times in this market, you’ll actually be able to take advantage of the high performance features without having to wait for the seasons to change.
