DieQua’s High Precision Series M Cycloidal Reducers

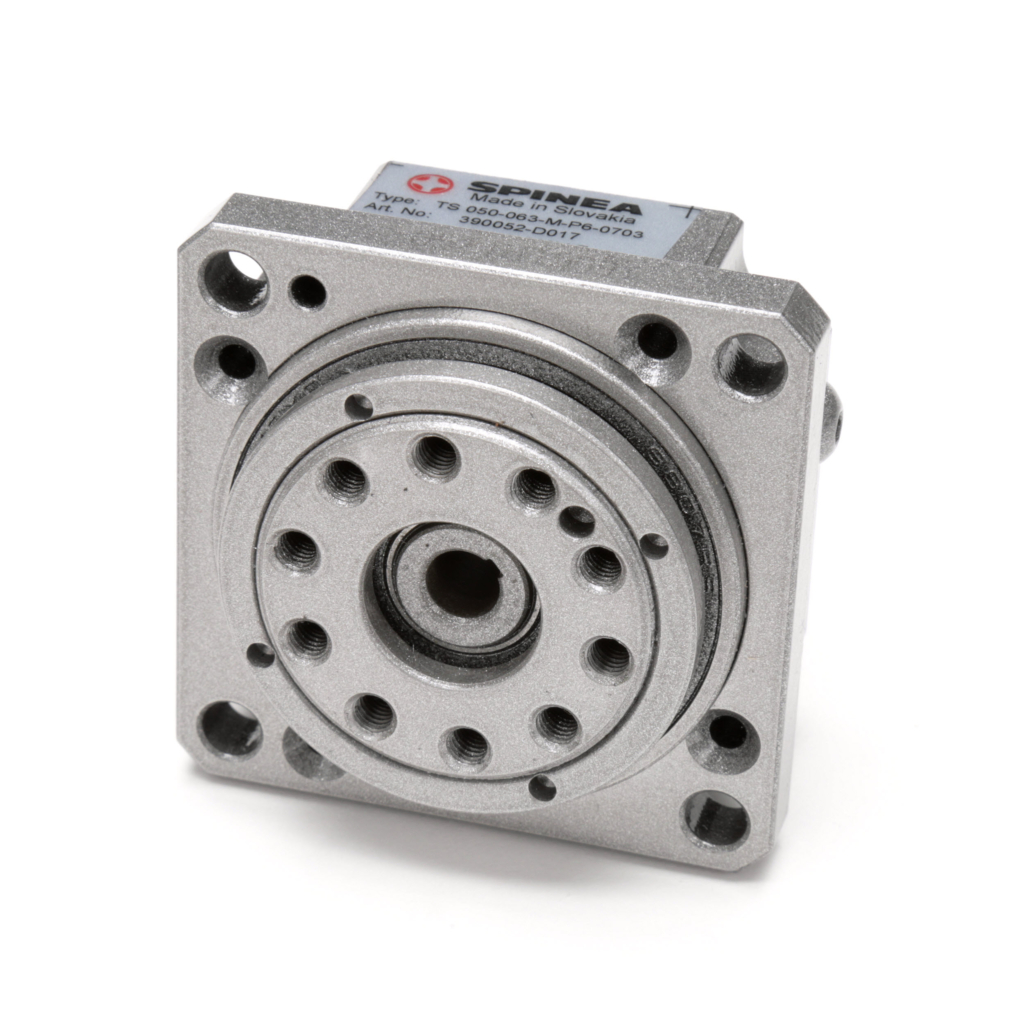

DieQua’s High-Precision Series M Small Cycloidal Reducers
This is the mini-series with similar mounting and all the performance advantages of the standard designs. With only one small cycloidal reducer size presently available, smaller versions are in development.
- 1 size – TS50 at 50 mm
- Ratios 47:1 and 63:1
- Rated output torque 18Nm
- Acceleration and braking output torque of 36Nm
- Rated input speed 2000RPM
- ISO 9409-1 compliant mechanical interface
- Zero-Backlash, Small Cycloidal Reducer
- High-Tilting Moment Capacity; 44 Nm.
- High-Positioning Accuracy <1 arc minute.
- High-Positioning Repeatability ±15 arcseconds Angular transmission error.
- High-Torsional Stiffness 4 Nm/arc min.
- High-Tilting Stiffness High radial force from 2600 N to 45300 N.
- High-Axial Force from 3700 N to 68100 N.
What’s Next?
| Specification | Units | TwinSpin | Flex Spline |
|---|---|---|---|
| Rated Torque | Nm | 18 | 7.8 |
| Torque Density | Nm/kg | 38.3 | 26.4 |
| Radial Force | N | 1440 | 550 |
| Tilting Moment | Nm | 44 | 13.2 |
| Torsional Stiffness | Nm/arcmin | 2.5 | 1.65 |
| Input Inertia | ¹⁰⁻⁴ᵏᵍ•ᵐ² | 0.007 | 0.034 |
Other Models Available
Application Examples
Why Choose a DieQua Cycloidal Reducer?
High productivity manufacturing requires automation systems that are highly accurate and extremely repeatable. Standard gear products, like planetary gearheads, rarely have the backlash control or torsional rigidity to perform as necessary. This is especially true in robotics, machine tool, medical, communication and some military applications.
There are a few devices available that provide many of the characteristics required for these types of applications. But none provide the torque density, rigidity and backlash control that is available from Spinea through DieQua. With some of the best delivery times in this market, you’ll actually be able to take advantage of the high performance features without having to wait for the seasons to change.
