DieQua’s High Precision Series T Cycloidal Reducers
DieQua’s High Precision Series T Cycloidal Reducers

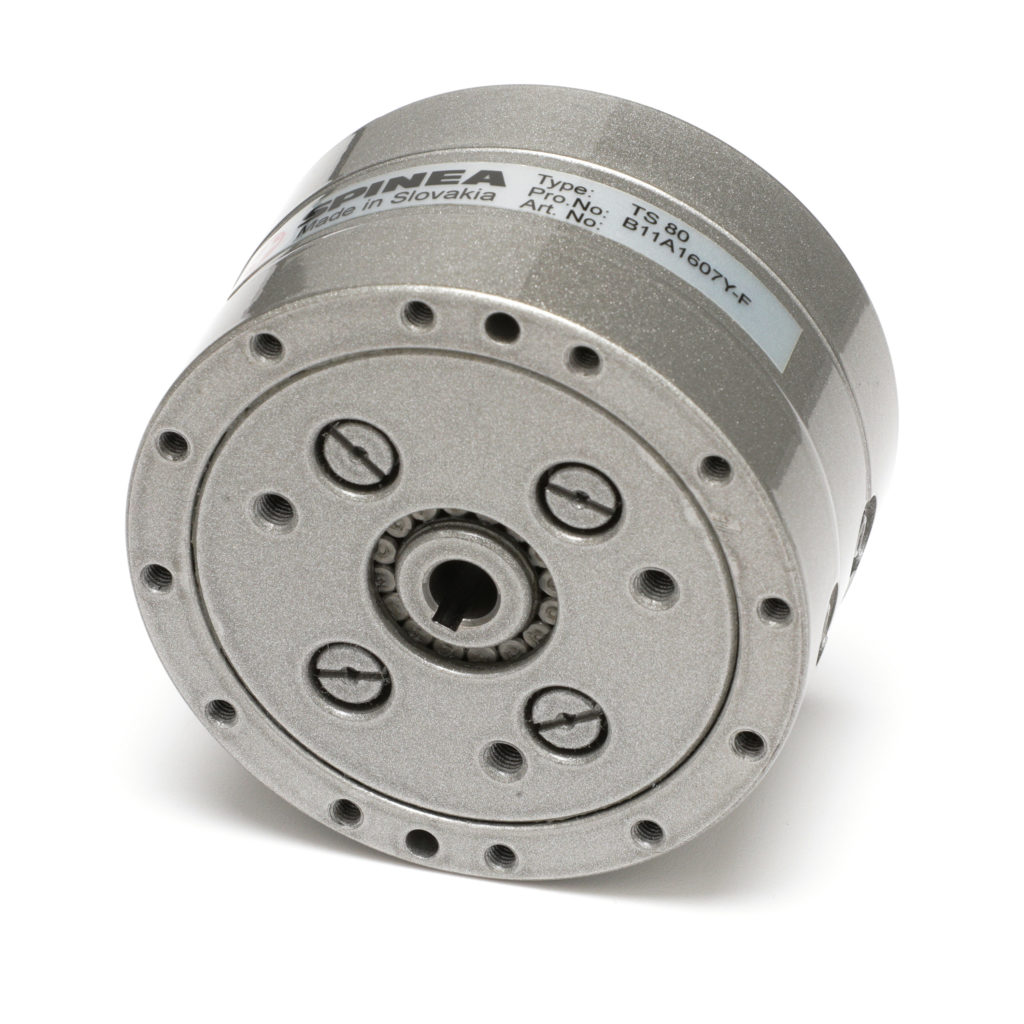

This cycloidal drive is a zero-backlash gear reducer that allows you to mount a load directly to the output flange or outer case without the need for additional bearings. The TwinSpin reducer series is the smallest cycloidal gearbox manufactured on the market. This zero-backlash gear reducer features dual cross-roller bearings, a low inertial high-speed input shaft, and superior radial, axial, and bending moment load capacities.
- 9 sizes from 60 – 300mm
- Single-stage ratios from 33:1 to 191:1
- Rated output torque from 37 Nm to 2940 Nm
- Input shaft sizes from 6 mm to 28 mm.
- Rated input speed up to 2,000 RPM
- ISO 9409-1 compliant mechanical interface
- Zero-Backlash Gear Reducer.
- High Tilting Moment Capacity; 107 to 12000 Nm.
- High Positioning Accuracy <1 arc minute.
- High Positioning Repeatability <1 arc minute of lost motion.
- High Torsional Stiffness from 3.5 through 680 Nm/arc min.
- High Tilting Stiffness from 27 through 3500 Nm/arc min.
- High Radial Force from 2600 N to 45300 N
- High Axial Force from 3700 N to 68100 N.
What’s Next?
Other Models Available
Why Choose a DieQua Cycloidal Reducer?
High productivity manufacturing requires automation systems that are highly accurate and extremely repeatable. Standard gear products, like planetary gearheads, rarely have the backlash control or torsional rigidity to perform as necessary. This is especially true in robotics, machine tool, medical, communication and some military applications.
There are a few devices available that provide many of the characteristics required for these types of applications. But none provide the torque density, rigidity and backlash control that is available from Spinea through DieQua. With some of the best delivery times in this market, you’ll actually be able to take advantage of the high performance features without having to wait for the seasons to change.
