High Torque Helical Bevel Servo Gearheads

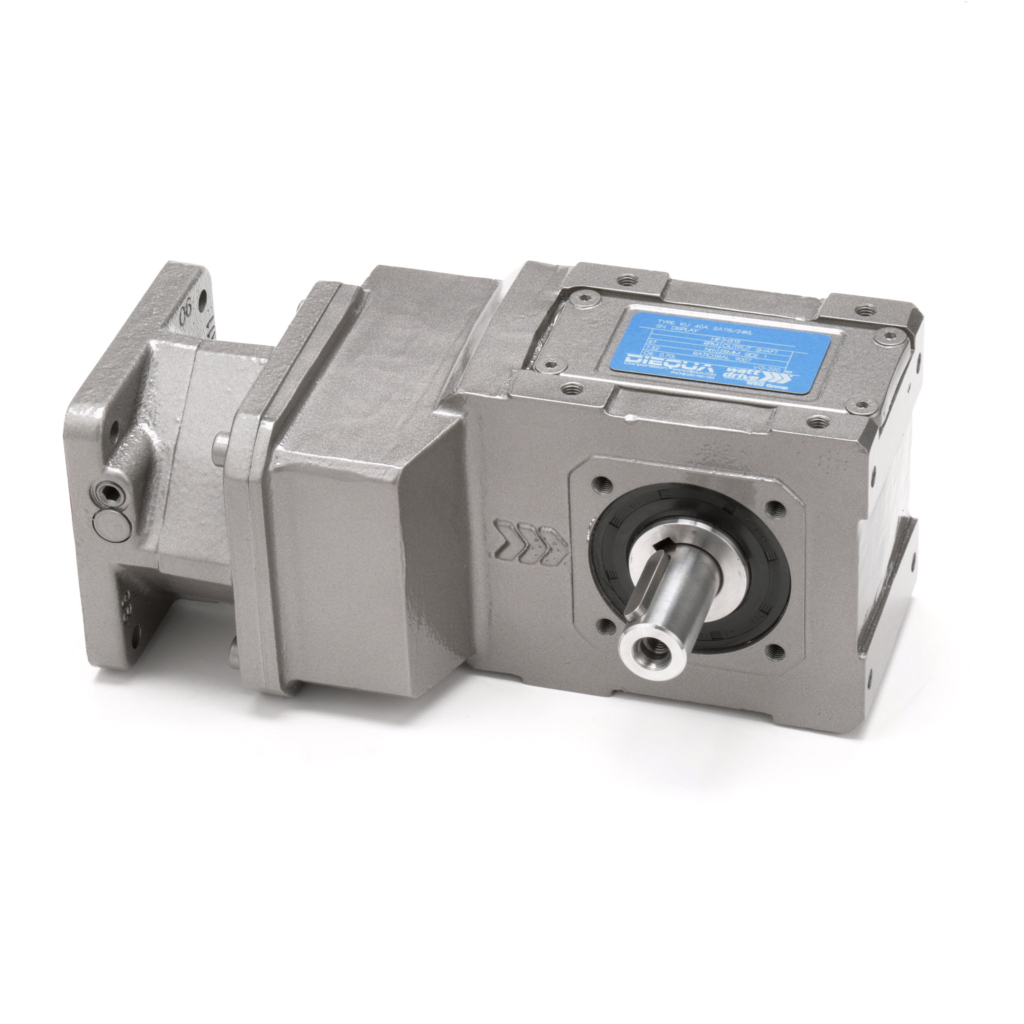

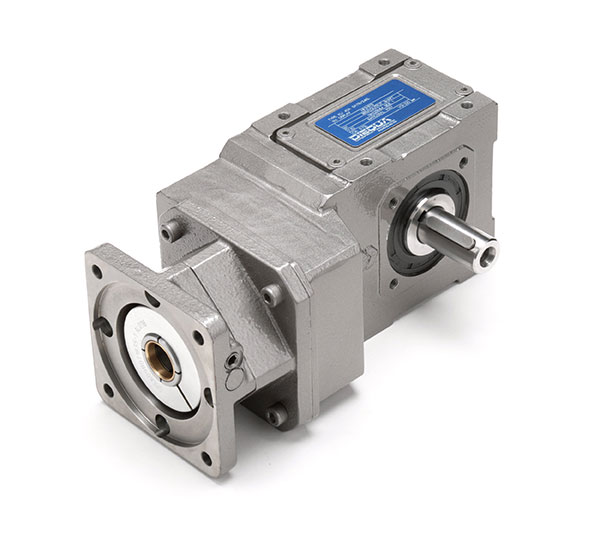

The K Series High-Torque Helical Bevel Gearbox provides unmatched performance, durability, and design flexibility. This helical bevel gearbox evolves from our standard line of premium quality speed reducers, offering higher torque capacities than planetary gearheads, up to 14,000 Nm (10,326 ft-lbs). This high-torque gearbox is ideal for moderately dynamic motion profiles at price points far below comparably-sized Servo Bevel Planetary gearboxes.
- 11 sizes – 40 through 139
- Gear ratios from 6.8 to 579:1 – other ratios optional
- Torque capacities to 81 Nm (60 ft-lbs) to 14,000 Nm (10,326 ft-lbs)
- 4 flexible output shaft options
- Class 12 Spiral and Helical Bevel Gears: These gearboxes provide higher efficiencies and greater torques in smaller sizes.
- Two servo motor shaft adapter styles are available for either a smooth or keyed motor shaft configuration.
- Multiple Output Options: Hollow bores and shrink disks for shaft mounting, inch and metric output shafts, mounting pilots, and flanges offer a wide range of design solutions.
- • UNIBLOCK Housing: Universal mounting on five sides or via a torque arm for maximum rigidity.
- Low Backlash for Precise Motion: Backlash as low as 5 arc minutes is possible for quick response and accurate positioning.
- Reducer efficiencies are as high as 95%.
- Servo motor interface flanges: 100 mm to 220 mm, other sizes available.
What’s Next?
Other Models Available
Related Products
The WATT Drive series of helical gearing servo gearheads provides economical motion and speed control with a variety of inline and right angle helical, helical bevel, and helical worm designs.
Mounting Options
Output Shaft Options
Why Choose a High Torque Servo Gearhead?
The WATT modular drive system, know as the WATT MAS system, is only gearbox and gear-motor program built using a building block system. This unique construction style allows all the various types of gearboxes to use the same input gear sets and, in most cases, the same output hollow bores, solid shafts, and flanges. The input can be with either an integrated WATT EUSAS motor or a variety of adapters including IEC, NEMA, or Servo. The WATT EUSAS motor is another innovation from the WATT engineering team. This UL, CSA, CE and AEC certified motor is also built using the same modular building block system. All these motors are inverter duty rated and have multi volt/Hz terminal blocks. This allows one motor to be used virtually anywhere in the world without requiring different windings. The back side of the motor has a modular end bell to accept brakes, encoders, or forced cooling by themselves or in any combination.
DieQua is the exclusive and only North American Assembly Center for the WATT MAS program. We have an extensive inventory to be able to react quickly to build, test, paint, and ship any standard product from the WATT MAS system. Using our own manufacturing capacity we are also uniquely capable of modifying or creating special designs. Call or email and let us create something for you.
