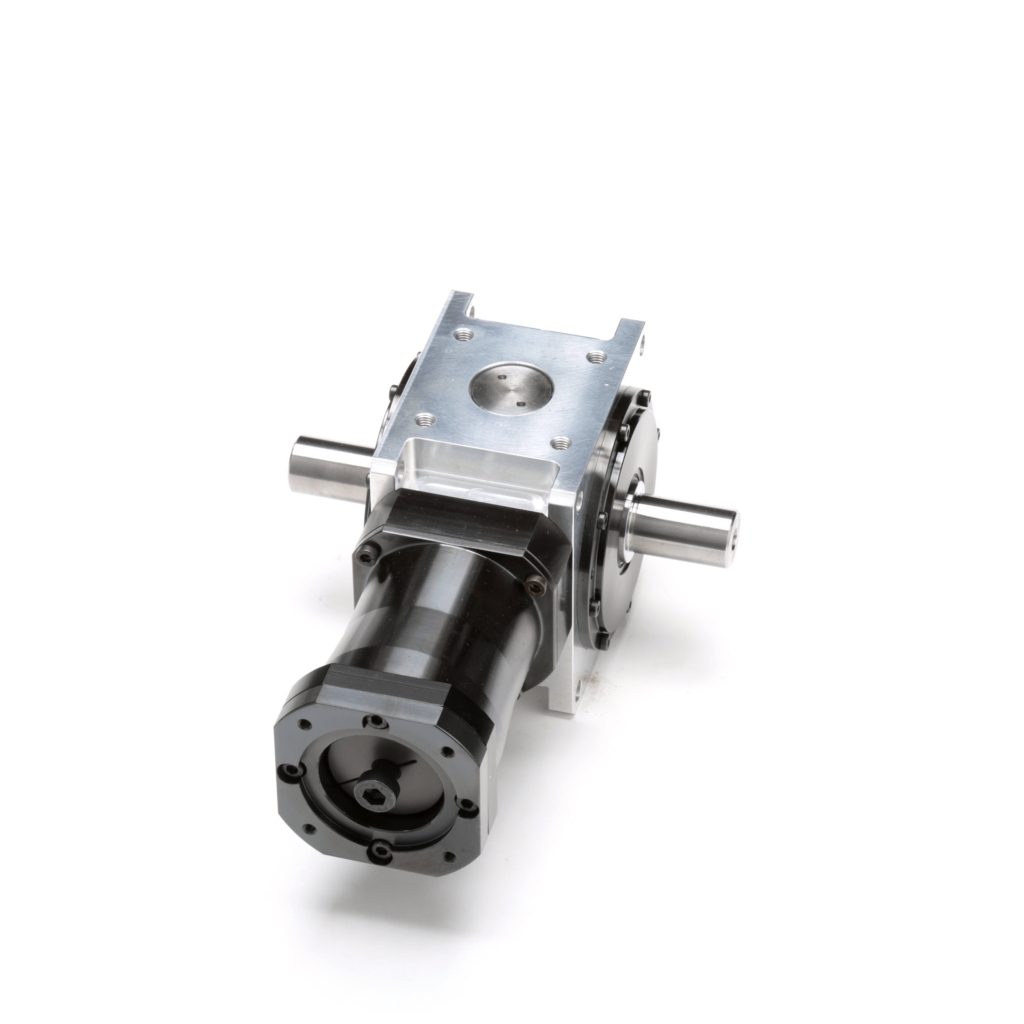

Tandler – Hypoid Servo Gearbox
The new Tandler® Hypoid Gearbox from DieQua offers the ultimate in performance and load connection versatility for high-cycle servo-driven gear applications. As a logical extension to our precision spiral bevel program, this hypoid gearbox now has available additional single-stage ratios from 5:1 up to 15:1.
- 8 frame sizes with rated torque from 36-859 Nm
- 6 output shaft options
- 2 levels of backlash
- Low Backlash: 2 levels of backlash standard <6 arc minutes, reduced <3 arcmin.
- Flexible Motor Mount: A unique integral bellow coupling design compensates for misalignment, increasing the performance of this hypoid gearbox
- Single Stage Ratios: Ratios from 5:1 to 15:1, depending on size, provide compact torque multiplication in a common size
- Output Shaft Versatility: This hypoid gearbox 6 output shaft options
- Single and Dual solid shaft
- Hollow bore with keyway
- Hollow bore with shrink disc
- Robot flange, solid
- Robot flange, hollow bore: ∅20.5 through ∅70.5
- Accommodates All Servos: A modular flange and coupling system allows the integration of virtually all motors in the torque range
- Maintenance Free: Gearboxes are pre-filled with synthetic oil and are typically lubricated for life
