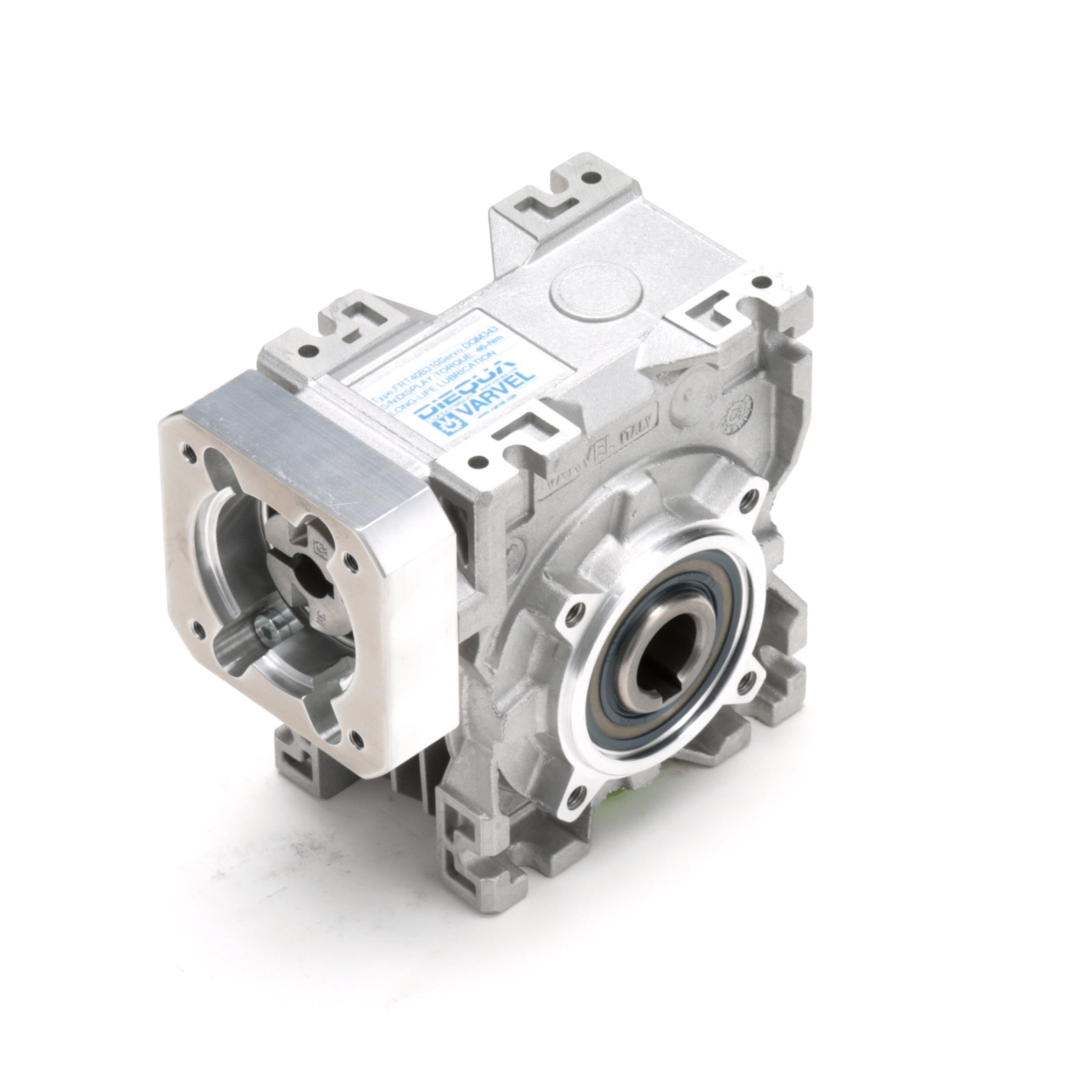

Industrial Servo Worm Gearheads
DieQua now offers economical industrial worm gearboxes to use with small NEMA 23 through 56 and similar small metric servo and stepper motors. These industrial servo worm gearboxes are most appropriate for basic motion and input speeds of 2000 rpm where profile application costs are a major consideration.
- 7 sizes with torque capacities up to 684 Nm
- 12 exact single-stage ratios from 7:1 to 100:1
- 2 stage ratios available
- Inch or metric output shafts
- Hollow output standard, insert shafts optional
- 2D and 3D drawings available online
- Flexible servo motor interface on this industrial worm gearbox
- Clamp-style hub provides zero-backlash motor shaft connection
- Aluminum diecast housing for low-weight
- Large output bearings accommodate higher radial loads
- Inch or metric hollow bore with keyway, single and dual plug-in shafts also available
- Double lip output seals provide maximum protection against contaminants
- Face or base mounting options, bolt-on flanges, and torque arms are also available
- Bronze wheels cast on the output shaft for higher strength
- Hardened and ground worm shaft provides smooth operation
- Reducer completely sealed for universal mounting and long-life lubrication
- Two-bearing worm support isolates motor bearings from radial and axial loads
- Flexible coupling element eliminates motor misalignment and bearing wear
What’s Next?
Other Models Available

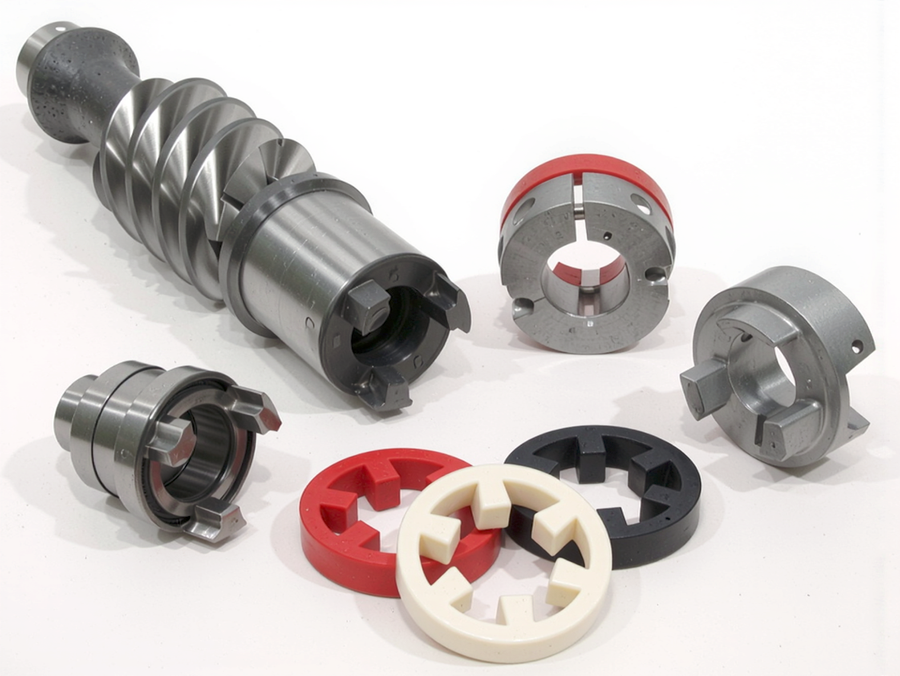

Top 10 Benefits of the Coupling Input Connection
1. Eliminates fretting corrosion common in quill mount.
2. Provides a near-zero backlash motor-to-reducer connection.
3. Reduces efficiency losses due to motor mounting misalignment.
4. Eliminates key/keyway wear in reversing applications.
5. One gearbox adaptable for NEMA, IEC, and servo motors.
6. One gearbox for multiple motor frame sizes.
7. Two bearing input support isolates motor bearings.
8. Elastomer element dampens vibration, reducing motor wear.
9. Motor heat transfer is minimized, increasing seal life.
10. Optional insert for ATEX explosion-proof applications.

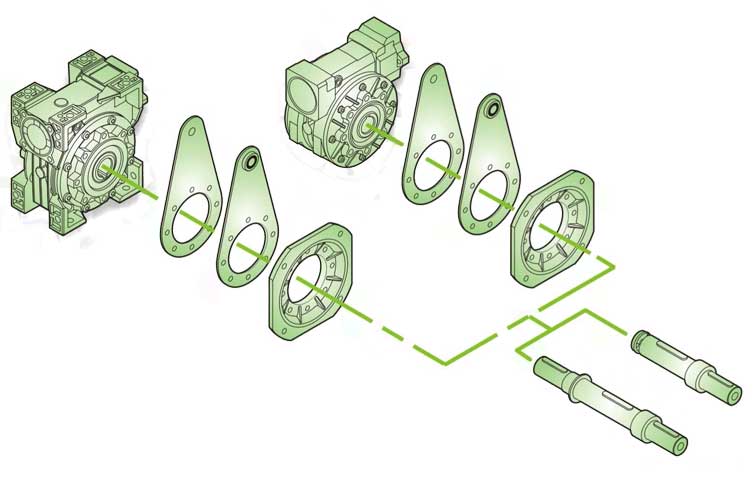

Program Flexibility
Why Choose an Economy Servo Worm Gearhead?
There are many servo driven applications that don’t require the highest precision gearhead. There are even more that can benefit from a right angle configuration for saving space and providing mounting versatility. Unfortunately there are few economical solutions for smaller servo motors. That is until now.
The Standard Industrial Worm is ideal for multiplying torque and reducing inertia in less dynamic applications requiring variable speed control and simple motion control profiles. They are also extremely quiet and many ratios are self locking for holding loads without brakes.
These gearheads are especially attractive when integrated with smaller servo motors, such as those with NEMA 23 and 34 frames as well as similar small metric frames. Even larger servo motors can take advantage of this design with a total of 7 gearbox sizes in the series, with center distances up to 110 mm.
The cost effectiveness of this unique solution enhances the viability of automating many applications that may not be possible with the higher cost gearheads provided by other sources.
