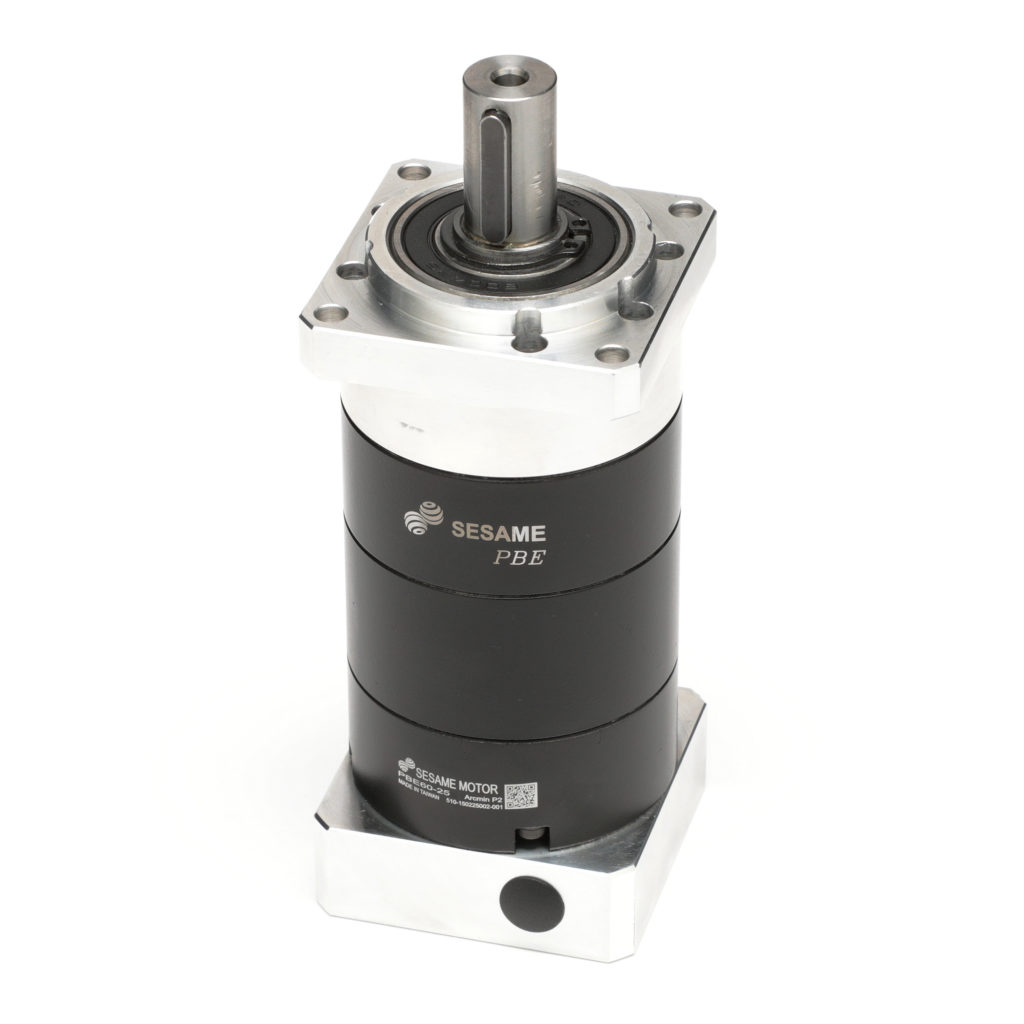

Sesame – PBE Economy Servo Gearheads
The PBE Primary Series square mounting flange, cantilevered primary class spur planetary gears, in an inline housing through sizes 90. Offers a light torque capacity, quiet operation with backlash as low as <7 arcmin.
- 1 level of backlash
- Inline, Keyed solid shaft configuration
- 3 frame sizes 42-90mm
- Square output mounting flange
- Ratios from 3:1 – 729:1
- Inline Configuration
- Output shaft, 13 mm through 22 mm diameter.
- Torque Capacity Range: 5 Nm through 58 Nm.
- Cantilevered Planet Carrier: with Primary Spur planet gear set
- High performance, efficiencies and low acoustics.
- Wide Range of Ratios: 6 single stage, 8 two stage and 8 three stage ratios.
- Output Bearings deliver radial load capacity as high as 1700 N, and axial capacities up to 735 N.
- Square Servo and Step Motor input: accommodates 40 mm through 100 mm, with optional sizes available.
What’s Next?
Other Models Available
Why Choose a Sesame Servo Gearhead?
Servo motors are used in a variety of machinery motion profiles to control position and speed. Regardless the accuracy required, or lack thereof, the same motor is often used.
The performance level of the gearhead, however, is an important consideration for achieving the desired goal at the most cost effective price. A different internal construction design can yield different results.
Sesame offers 4 performance levels with distinctive design characteristic options within each level. The wide range of available models allows the optimal product selection to achieve the desired performance, at the most value oriented price.
It’s this versatility in performance, design, mounting and price ranges that make the Sesame servo gearhead product line the ultimate resource for your specific requirements.
