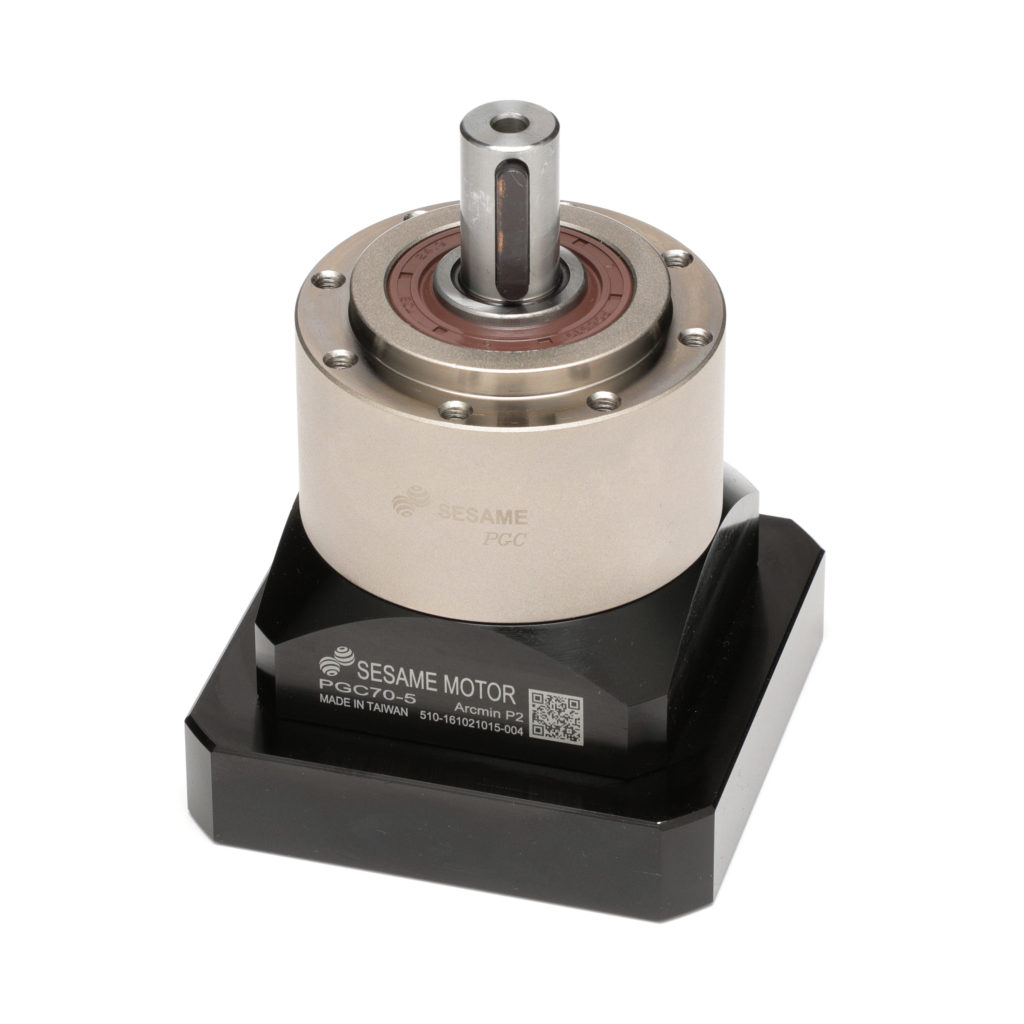

Sesame – PGC Precision Servo Gearheads
The PGC Precision Series features round mounting flange, caged precision class spur planetary gears in an inline housing through sizes 235. High torque capacity, quiet operation with backlash as low as <3 arcmin.
- 3 levels of backlash
- Inline, Keyed solid shaft configuration
- 7 frame sizes 50-235 mm
- Round output mounting flange
- Ratios from 3:1 – 100:1
- Inline Configuration
- Output shaft, 13 mm through 75 mm diameter.
- Torque Capacity Range: 10 Nm through 1670 Nm.
- Caged Planet Carrier: with Precision Spur planet gear set.
- Wide Range of Ratios: 5 single-stage and up to 9 two-stage ratios.
- Output Bearings deliver radial load capacity as high as 11120 N and axial capacities up to 8560 N.
- Square Servo and Step Motor input: accommodates 50 mm through 235 mm, with optional sizes available.
What’s Next?
Other Models Available
Why Choose a Sesame Servo Gearhead?
Servo motors are used in a variety of machinery motion profiles to control position and speed. Regardless the accuracy required, or lack thereof, the same motor is often used.
The performance level of the gearhead, however, is an important consideration for achieving the desired goal at the most cost effective price. A different internal construction design can yield different results.
Sesame offers 4 performance levels with distinctive design characteristic options within each level. The wide range of available models allows the optimal product selection to achieve the desired performance, at the most value oriented price.
It’s this versatility in performance, design, mounting and price ranges that make the Sesame servo gearhead product line the ultimate resource for your specific requirements.
