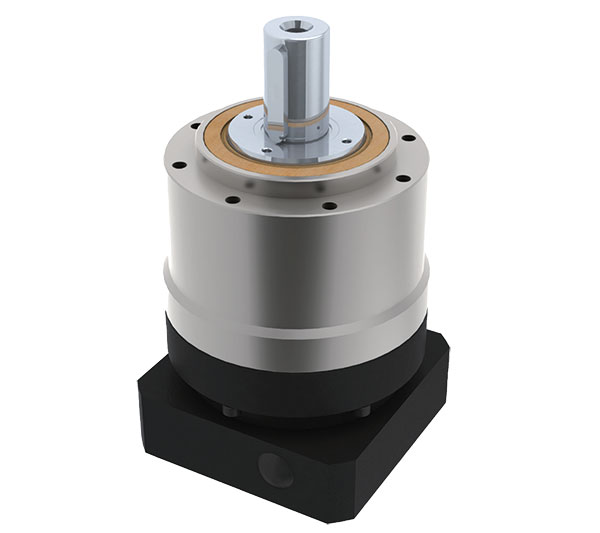

Sesame – PHCH Premium Planetary Servo Gearheads
- 3 levels of backlash
- Inline, Keyed solid shaft configuration
- 4 frame sizes 70-155 mm
- Round output mounting flange
- Ratios from 3:1 – 100:1
- Inline Configuration
- Output shaft, 16 mm through 40 mm diameter
- Torque Capacity Range: 37 Nm through 600 Nm
- Caged Planet Carrier: with Premium Helical planet gear set
- High performance, efficiencies and low acoustics
- Wide Range of Ratios: 8 single stage and up to 13 two-stage ratios
- Taper Roller Bearings deliver radial load capacity as high as 11380 N, and axial capacities up to 8830 N
- Square Servo and Step Motor input: accommodates 60 mm through 220 mm, with optional sizes available
What’s Next?
Other Models Available
Why Choose a Sesame Servo Gearhead?
Servo motors are used in a variety of machinery motion profiles to control position and speed. Regardless the accuracy required, or lack thereof, the same motor is often used.
The performance level of the gearhead, however, is an important consideration for achieving the desired goal at the most cost effective price. A different internal construction design can yield different results.
Sesame offers 4 performance levels with distinctive design characteristic options within each level. The wide range of available models allows the optimal product selection to achieve the desired performance, at the most value oriented price.
It’s this versatility in performance, design, mounting and price ranges that make the Sesame servo gearhead product line the ultimate resource for your specific requirements.
