Sesame – PGL Precision Servo Gearheads

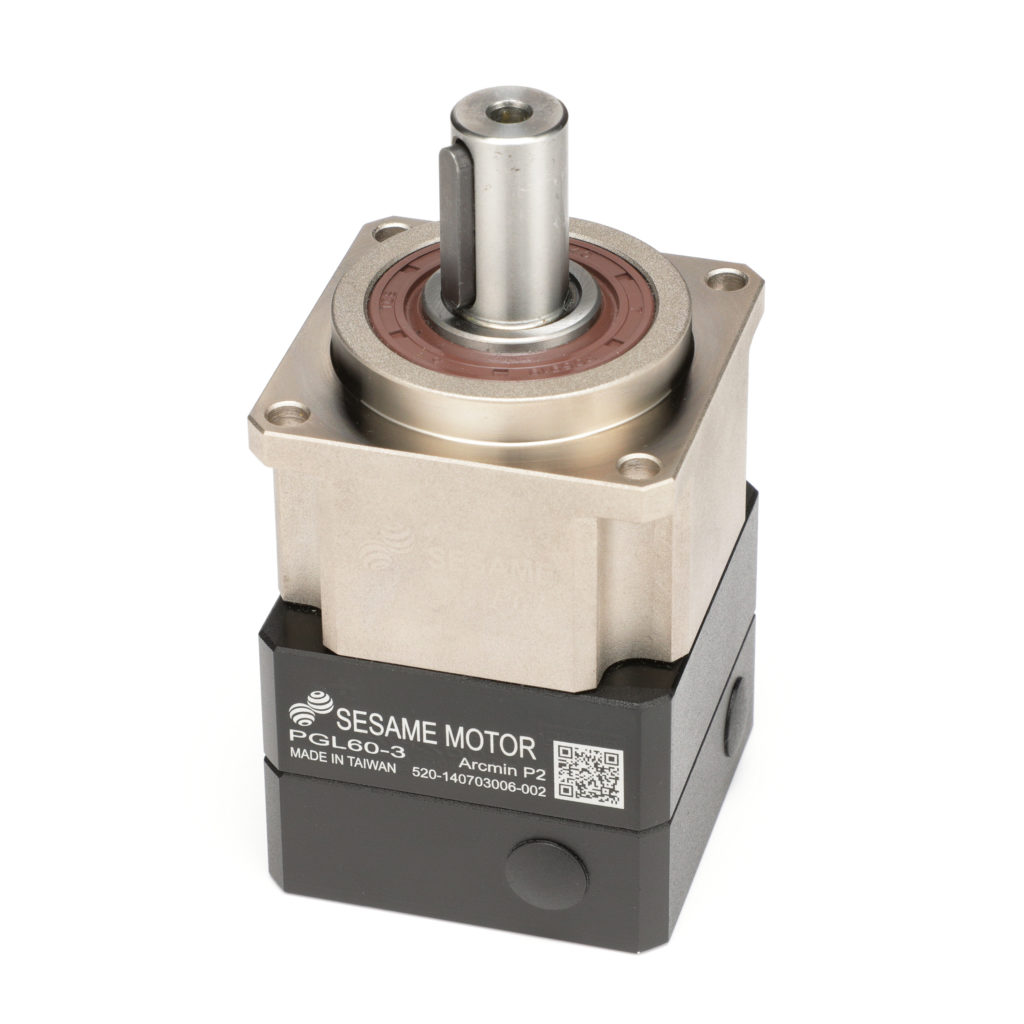

The Sesame PGL Precision Series Gearhead features a square mounting flange, caged precision class spur planetary gears, in an inline housing through sizes 220. This Sesame servo planetary gearbox has a high-torque capacity and quiet operation with backlash as low as <3 arcmin.
- 3 levels of backlash
- Inline, keyed solid-shaft configuration
- 7 frame sizes 42-220mm
- Square output mounting flange
- Ratios from 3:1 – 100:1
- Servo planetary gearbox with inline configuration.
- Output shaft, 13 mm through 75 mm diameter.
- Torque Capacity Range: 10 Nm through 1670 Nm.
- Caged Planet Carrier with Precision Spur planet gear set.
- High performance, efficiencies, and low acoustics.
- Wide Range of Ratios: 8 single-stage and up to 13 two-stage ratios.
- Output Bearings deliver radial load capacity as high as 11120 N, and axial capacities up to 8560 N.
- Square Servo and Step Motor input: accommodates 40 mm through 220 mm, with optional sizes available.
What’s Next?
Other Models Available
Why Choose a Sesame Servo Gearhead?
Servo motors are used in a variety of machinery motion profiles to control position and speed. Regardless the accuracy required, or lack thereof, the same motor is often used.
The performance level of the gearhead, however, is an important consideration for achieving the desired goal at the most cost effective price. A different internal construction design can yield different results.
Sesame offers 4 performance levels with distinctive design characteristic options within each level. The wide range of available models allows the optimal product selection to achieve the desired performance, at the most value oriented price.
It’s this versatility in performance, design, mounting and price ranges that make the Sesame servo gearhead product line the ultimate resource for your specific requirements.
