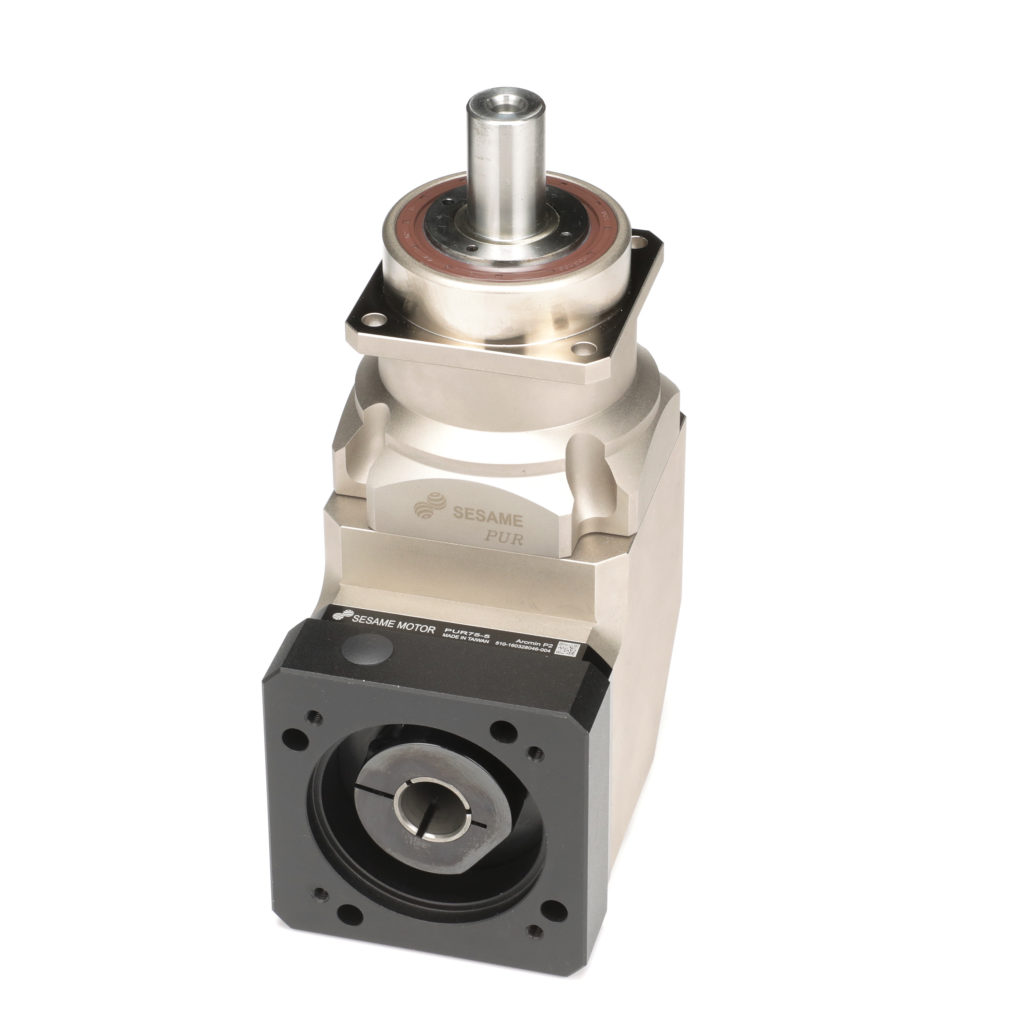

Sesame – PUR Right Angle Servo Gearheads
The PUR Premium Series Right-Angle Servo Gearhead features a square mounting flange, caged premium class helical planetary gears, in an inline housing through sizes 220. It has a high-torque capacity and quiet operation with backlash as low as <2 arcmin.
- 3 levels of backlash
- Right-angle servo gearhead, keyed solid shaft configuration
- 6 frame sizes 60-220mm
- Square output mounting flange
- Ratios from 3:1 – 200:1
- Right-Angle Servo Gearhead Configuration
- Output shaft: 16 mm through 32 mm diameter
- Torque Capacity Range: starting at 37 Nm through 2000 Nm
- Caged Planet Carrier with premium Helical Planet gear set
- High Performance, efficiencies, and low acoustics
- Wide Range of ratios available: 10 single-stage and up to 18 two-stage ratios
- Taper Roller Bearings deliver radial load capacity as high as 27800 N, and axial capacities up to 16200 N
- Square Servo and Step Motor input: accommodates 60 mm through 220 mm, with optional sizes available
What’s Next?
Other Models Available
Why Choose a Sesame Servo Gearhead?
Servo motors are used in a variety of machinery motion profiles to control position and speed. Regardless the accuracy required, or lack thereof, the same motor is often used.
The performance level of the gearhead, however, is an important consideration for achieving the desired goal at the most cost effective price. A different internal construction design can yield different results.
Sesame offers 4 performance levels with distinctive design characteristic options within each level. The wide range of available models allows the optimal product selection to achieve the desired performance, at the most value oriented price.
It’s this versatility in performance, design, mounting and price ranges that make the Sesame servo gearhead product line the ultimate resource for your specific requirements.
