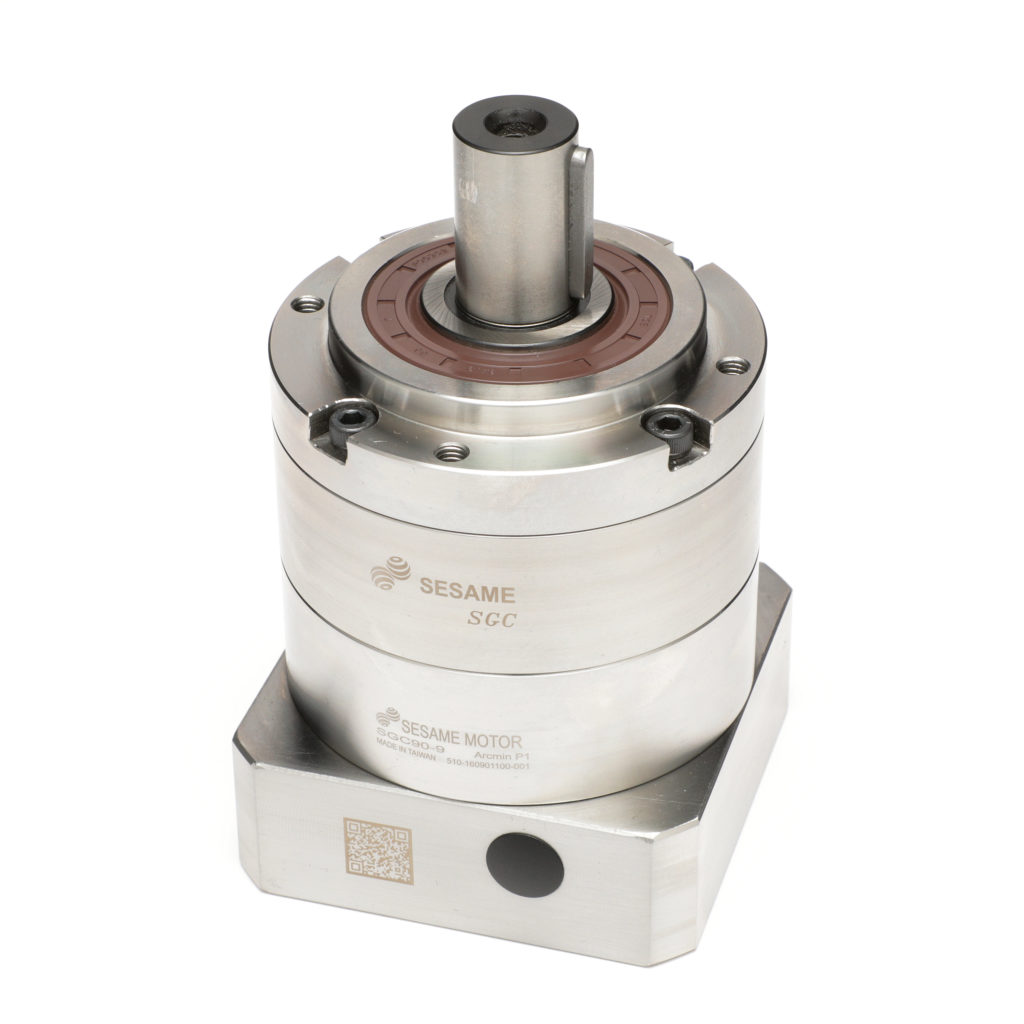

Sesame – SGC Precision Servo Gearheads
The SGC Precision Series features round mounting flange, caged precision class spur planetary gears in an inline housing through sizes 90. Medium torque capacity, quiet operation with backlash as low as <6 arcmin, in 300 series Stainless Steel.
- 300-series stainless steel
- 1 level of backlash
- Inline, Keyed solid shaft configuration
- 2 frame sizes 70-90 mm
- Round output mounting flange
- Ratios from 3:1 – 100:1
- Inline Configuration
- Output shaft, 16 mm and 22 mm diameter
- Torque Capacity Range: 21 Nm and 95 Nm
- Caged Planet Carrier: with Standard Spur planet gear set
- High Performance, efficiencies and low acoustics
- Wide Range of Ratios: 6 single-stage and up to 9 two-stage ratios
- Output Bearings deliver radial load capacity as high as 4200 N and axial capacities up to 2600 N
- Square Servo and Step Motor input: accommodates 50 mm through 120 mm, with optional sizes available
- Permanent laser engraved labeling
- Food grade lubrication and seals are optional
What’s Next?
Other Models Available
Why Choose a Sesame Servo Gearhead?
Servo motors are used in a variety of machinery motion profiles to control position and speed. Regardless the accuracy required, or lack thereof, the same motor is often used.
The performance level of the gearhead, however, is an important consideration for achieving the desired goal at the most cost effective price. A different internal construction design can yield different results.
Sesame offers 4 performance levels with distinctive design characteristic options within each level. The wide range of available models allows the optimal product selection to achieve the desired performance, at the most value oriented price.
It’s this versatility in performance, design, mounting and price ranges that make the Sesame servo gearhead product line the ultimate resource for your specific requirements.
