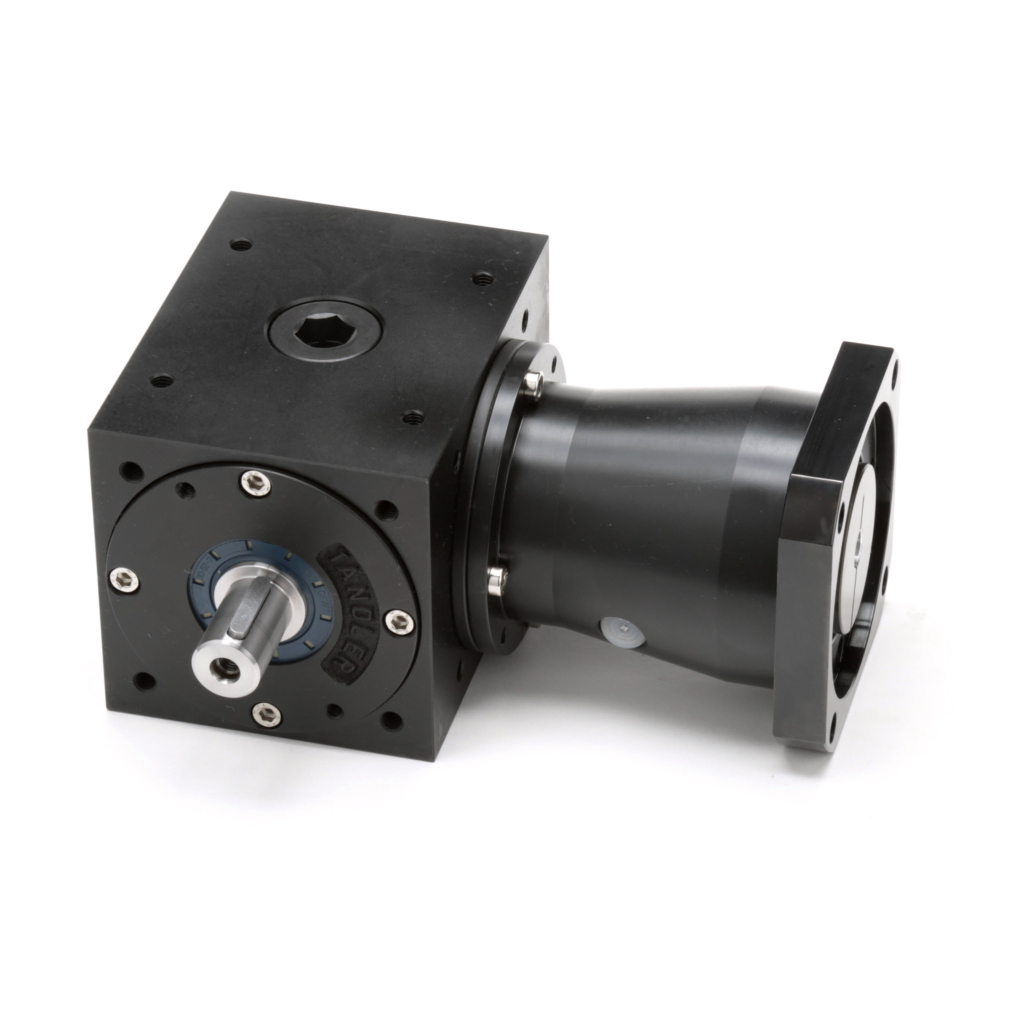

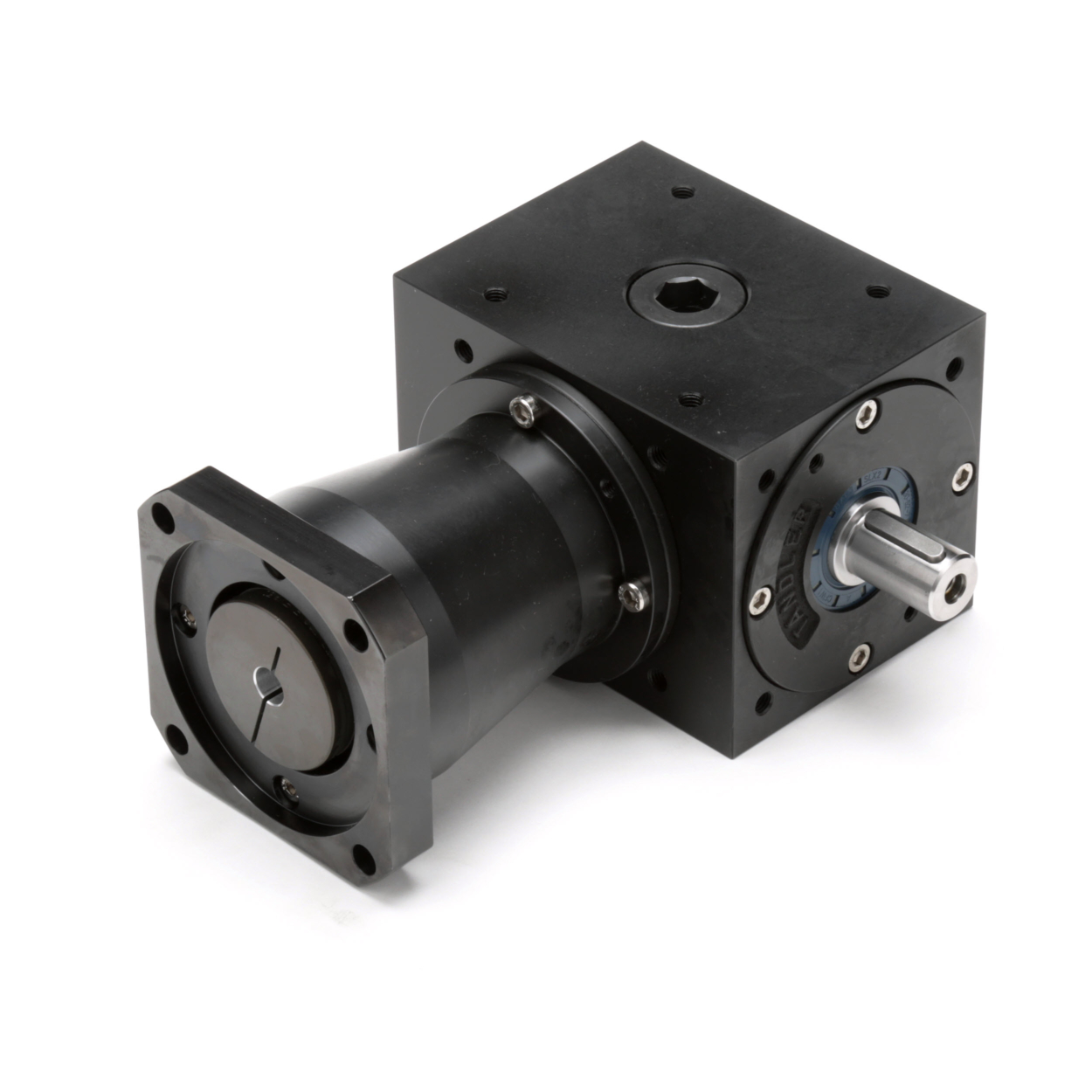

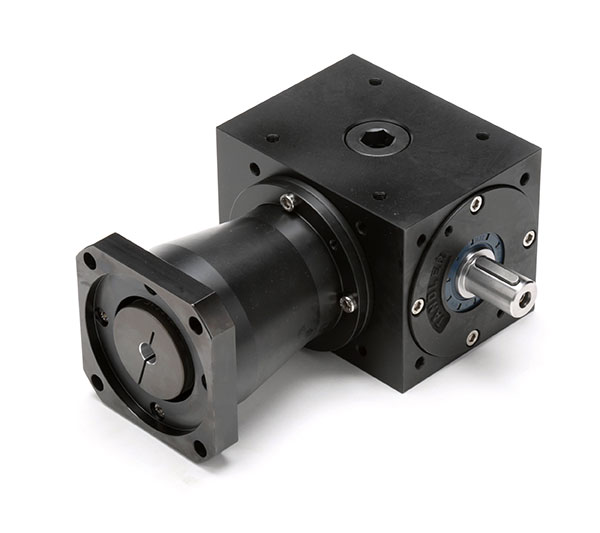

Tandler – FS2 Single Stage Spiral Bevel Servo Gearheads
The Tandler FS2 precision single-stage spiral bevel gearhead provides the ultimate in-motion control. With precision ground hardened and lapped, matched-set spiral bevel gears, and a revolutionary motor mount, maximum performance is assured in this single-stage solution. Two-stage ratios are available in the series PSK2FS and series SKP2FS.
- 8 sizes
- 8 standard ratios
- Nominal torque capacity up to 1250 Nm
- Peak torque capacity up to 2800 Nm
- Low Backlash: Two levels of backlash optimize and enhance positioning accuracy; standard <6 arc minutes, reduced <3 arcmin.
- Revolutionary Motor Mount: A flexible motor connection eliminates misalignment and gear deflection
- Corrosion Resistance Option: QPQ Nitriding process provides protection against high moisture environments
- Cast Iron Housing: Provides superior torsional rigidity over aluminum housings
- More Ratios: 8 ratios available, 1:1 – 6:1.
- Maximum Output Flexibility: Single or dual solid shafts, hollow bore with keyway, hollow bore with shrink disc, plus other optional designs.
What’s Next?

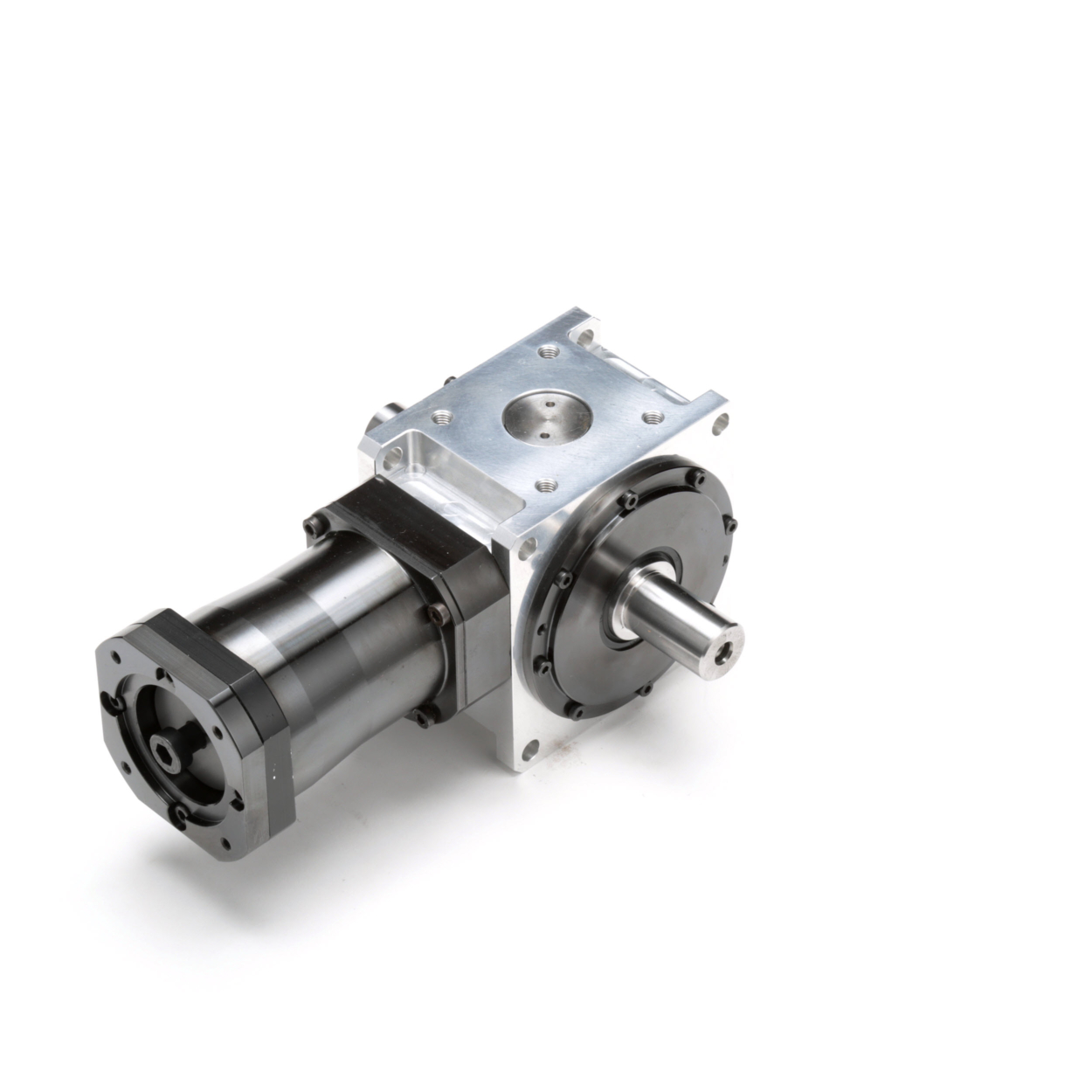

Other Models Available
Why Choose a Tandler Servo Gearhead?
The Tandler ServoFoxx series of servo gearheads provide the ultimate in precision motion control for highly dynamic applications
Featuring the widest range of ratios, configurations, and customizable options, we have the drive to meet your needs.
ServoFoxx incorporates a revolutionary flexible element to compensate for motor shaft misalignment, which maintains torsional rigidity, maximizes performance, reduces noise, and eases motor mounting and disassembly.
