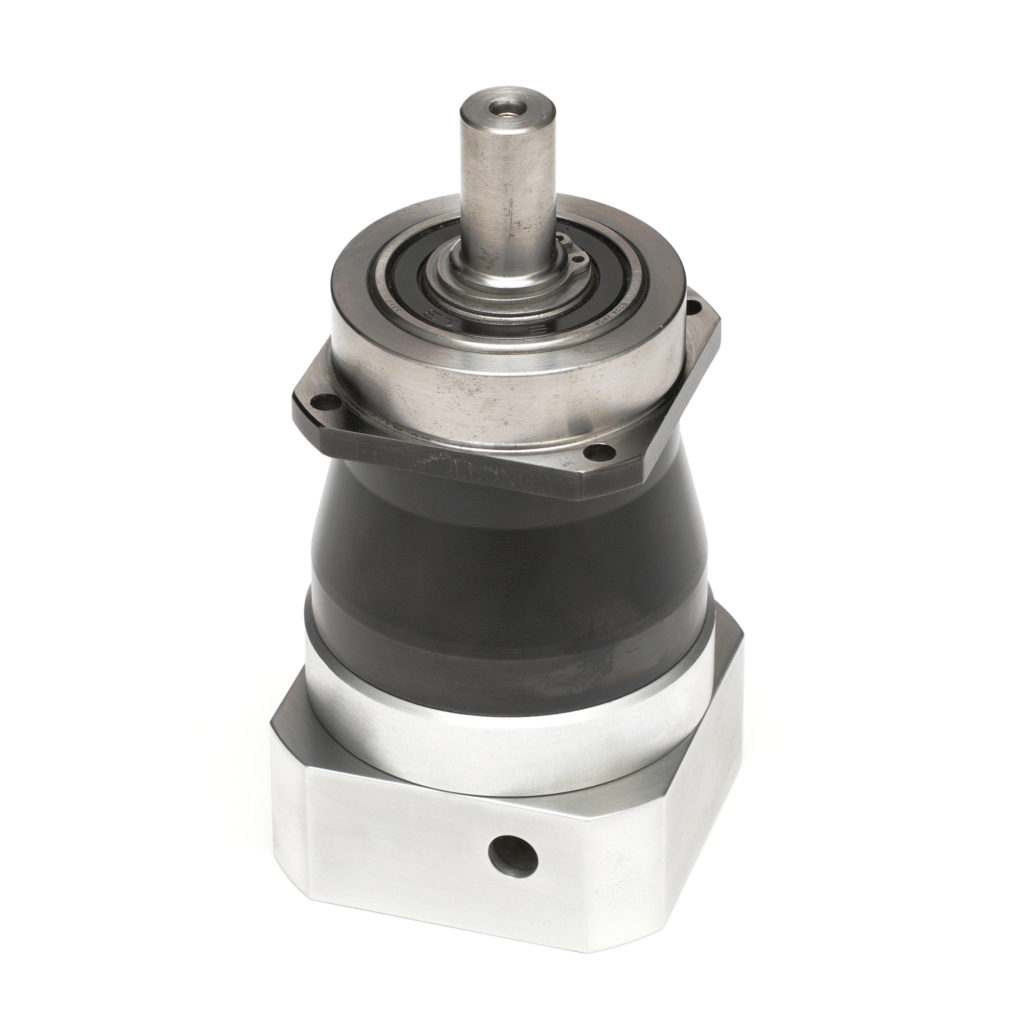

Tandler P-Series Planetary Gearhead
The P-Series of planetary gear reducers s a market-driven extension of our product line. The advantages are high power density, simple assembly, light weight, low back- lash, low transmission error and the typical durability of all TANDLER gearboxes.
- 5 sizes
- 11 “standard” ratios up to 100:1
- Nominal torque capacity up to 900 Nm
- Peak torque up to 1300 Nm
- Lifetime Lubrication
- Inline Configuration
- Output shaft, 16 mm through 55 mm diameter
- Low Backlash: Two levels of backlash optimize and enhance positioning accuracy
- Torque Capacity Range: 29 Nm through 935 Nm
- Wide Range of Ratios: 5 single stage and up to 6 two-stage ratios
- Output Bearings deliver radial load capacity as high as 10250 N
- Square Servo and Step Motor input: accommodates 40 mm through 90 mm, with optional sizes available
- Corrosion Resistant: QPQ Nitriding process provides protection against high moisture environments
- Cast Iron Housing: Provides superior torsional rigidity over aluminum housings
What’s Next?

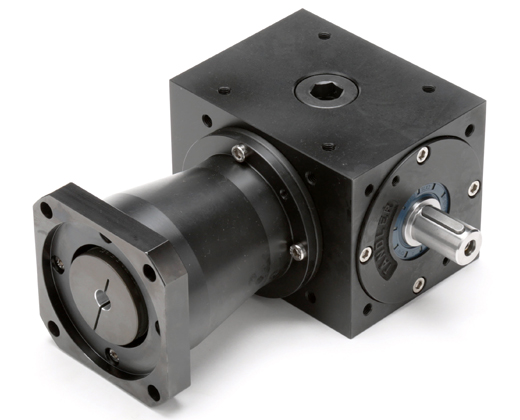

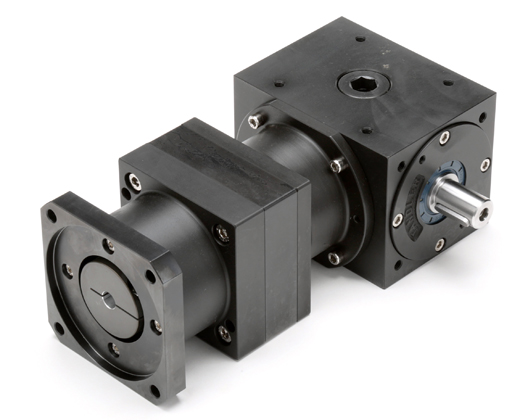

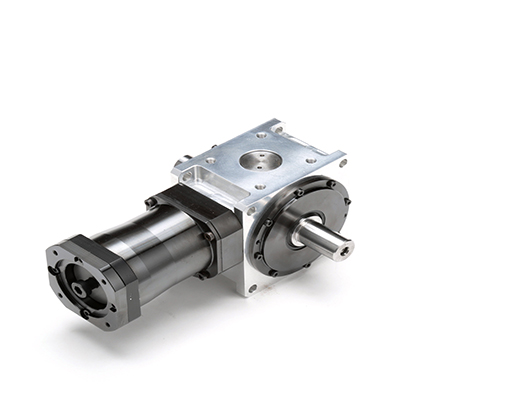

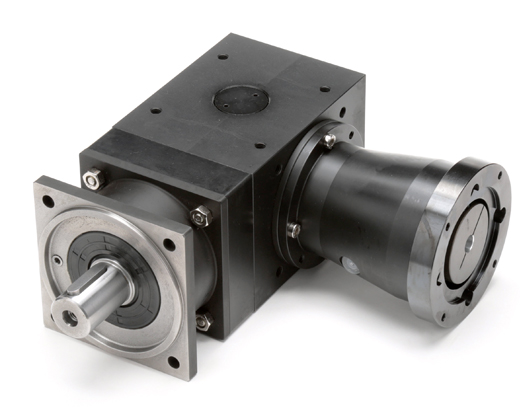

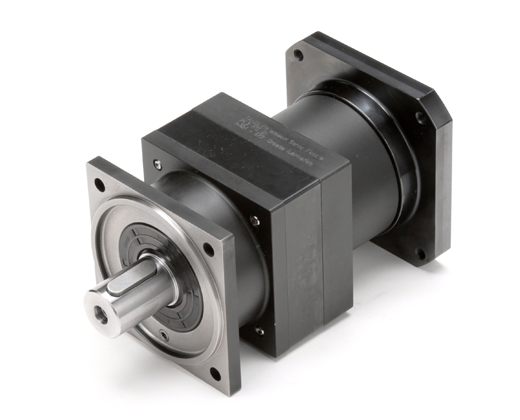

Other Models Available
Why Choose a Tandler Servo Gearhead?
Tandler’s P series planetary gearboxes deliver the proven TANDLER quality at an affordable price. The goal in developing this series was having to accept a cost-optimized design without sacrificing transmission accuracy and performance. The result is impressive. The housings of the P-Series planetary gearboxes are manufactured from high strength aluminum and corrosion protected steel.
