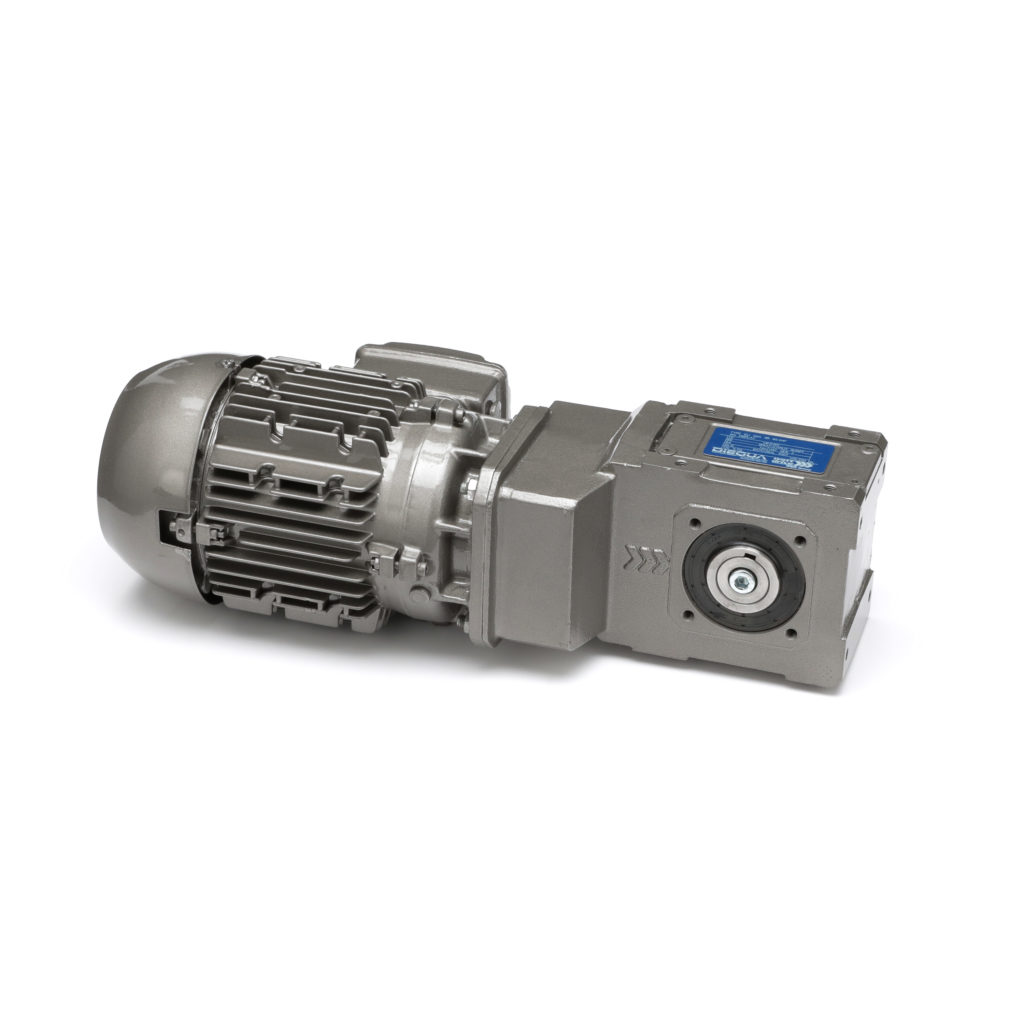

Helical Bevel Gearmotors & Speed Reducers
The K Series Helical Bevel Gearmotors and Speed Reducers provide unmatched performance, durability, and design flexibility. These Helical Bevel Gearmotors and Speed Reducers also offer torque capacities up to 20,000 Nm (14,750 ft-lbs)
The cat4CAD software enables simple interactive product selection of the complete gearbox and gear-motor system. Cat4CAD supports you in selecting and configuring these products, allowing you to print out extensive technical datasheets and generate complete 2D drawings and 3D models for direct download.
- 11 sizes
- Input power capacities from 0.16 to 120 HP
- Gear ratios from 5:1 to 8900:1
- Torque capacities to 20,000 Nm
- Inverter duty class F insulated motor windings
- Class 12 Helical and Spiral Bevel Gears: Provides higher efficiencies and greater torques in smaller sizes.
- Multiple Input Options: Integral gear motors, inch or metric shafts, NEMA, IEC, and servo adapters provide unmatched drive versatility.
- Multiple Output Options: Hollow bores and shrink disks for shaft mounting, inch and metric output shafts, mounting pilots, and flanges offer a wide range of design solutions for these K Series Helical Bevel Gearmotors and Speed Reducers.
- UNIBLOCK Housing: For maximum rigidity, universal mounting on five sides or via a torque arm.
- Worldwide Motor: Multiple leads and windings for worldwide multi-volt/Hz requirements plus modular design to accept brakes, encoders, or forced cooling.
What’s Next?

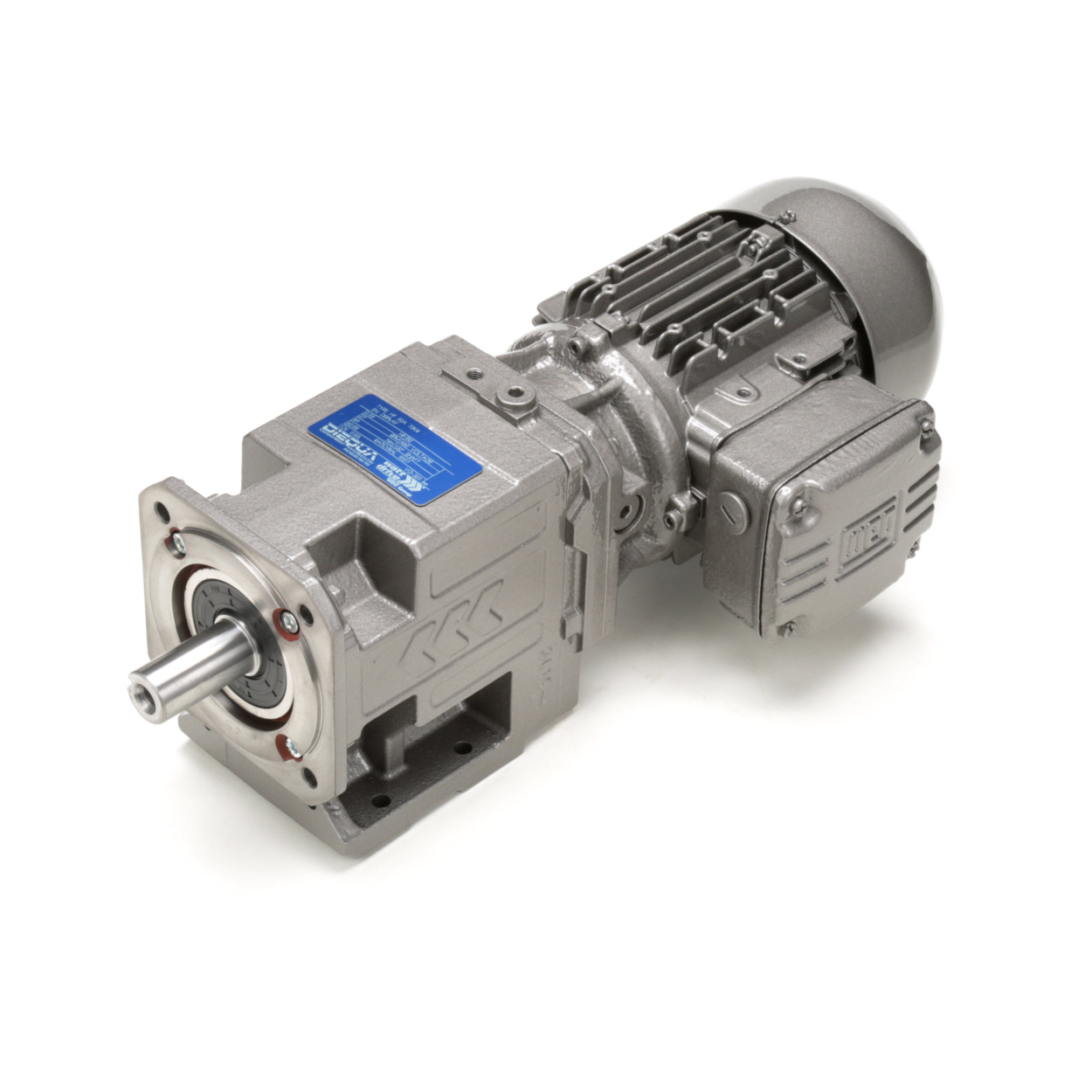

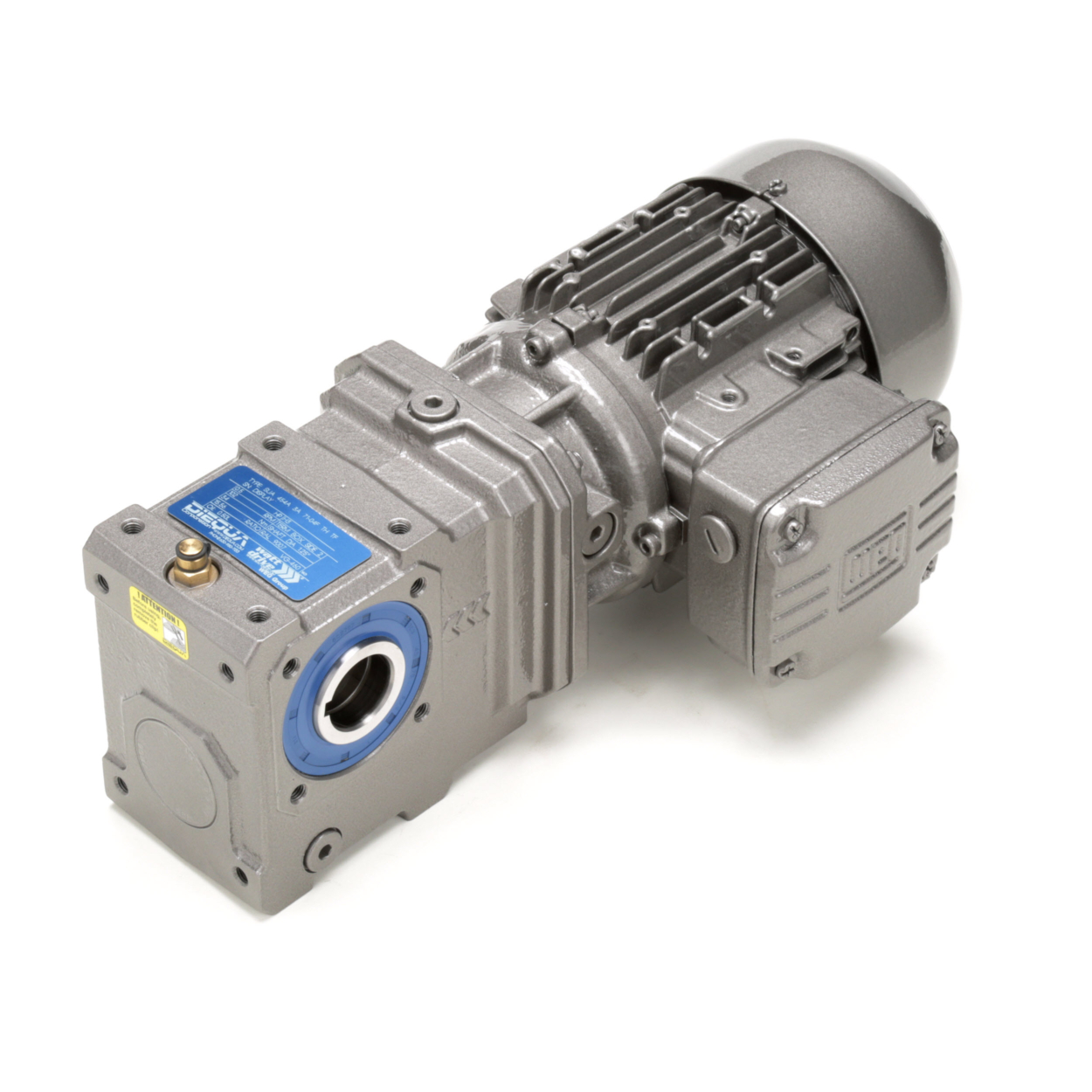

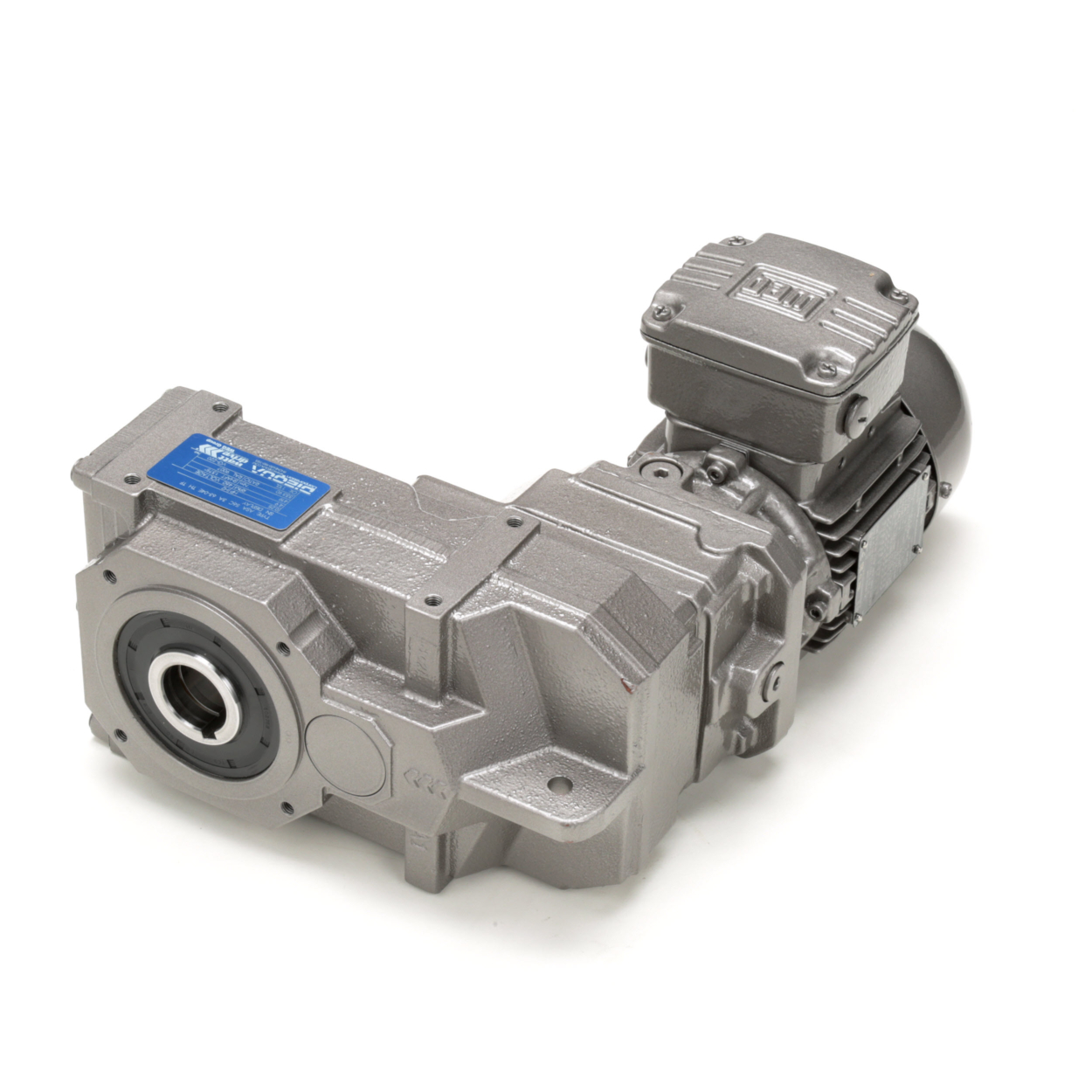

Other Models Available
Related Products
Why Choose a WATT Drive Speed Reducer?
The WATT modular drive system, known as the WATT MAS system is the only gearbox and gear-motor program built using a building block system. This unique construction style allows all the various types of gearboxes to use the same input gear sets and, in most cases, the same output hollow bores, solid shafts, and flanges. The input can be with either an integrated WATT EUSAS motor or a variety of adapters including IEC, NEMA, or Servo. The WATT EUSAS motor is another innovation from the WATT engineering team. This UL, CSA, CE, and AEC certified motor is also built using the same modular building block system. All these motors are inverter duty rated and have multi-volt/Hz terminal blocks. This allows one motor to be used virtually anywhere in the world without requiring different windings. The back side of the motor has a modular end bell to accept brakes, encoders, or forced cooling by themselves or in any combination.
DieQua is the exclusive and only North American Assembly Center for the WATT MAS program. We have an extensive inventory to be able to react quickly to build, test, paint, and ship any standard product from the WATT MAS system. Using our own manufacturing capacity we are also uniquely capable of modifying or creating special designs. Call or email and let us create something for you.
