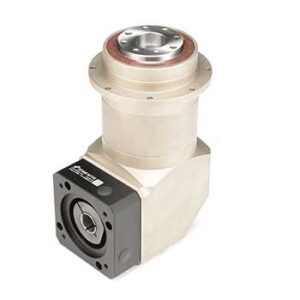

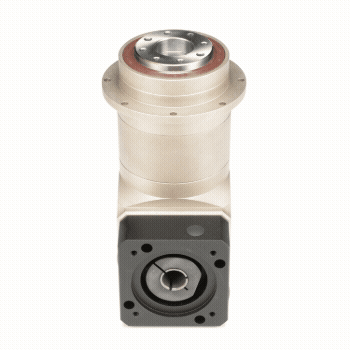

PHFR Right Angle Servo Gearheads
The PHFR Precision Round mounting flange, caged precision class spur planetary gears in a right-angle housing through sizes 255. ISO-9409 flange output, high torque capacity, quiet operation with backlash as low as <2 arcmin.
- 3 levels of backlash
- Right Angle, ISO-9409 flange configuration
- 7 frame sizes 42-255 mm
- Round output mounting flange
- Ratios from 3:1 – 200:1
- ISO 9409 Flange Output
- Right Angle Configuration
- Output Shaft, 28 mm through 180 diameter
- Torque Capacity Range: 11 Nm through 2000 Nm
- Caged Planet Carrier: With Precision Premium planet gear set
- High Performance, efficiencies and low acoustics
- Wide range of Ratios: 7 single stage and up to 11 two-stage ratios
- Taper Roller Bearings deliver max. bending moment load capacity as high as 6500 N and axial capacities up to 21850 N
- Square Servo and Step Motor input: accommodates 40 mm through 255 mm, with optional sizes available
Complete the form to download the planetary gearhead catalog:
What’s Next?
Why Choose a Servo Gearhead from DieQua?
Servo motors are used in a variety of machinery motion profiles to control position and speed. Regardless the accuracy required, or lack thereof, the same motor is often used.
The performance level of the gearhead, however, is an important consideration for achieving the desired goal at the most cost effective price. A different internal construction design can yield different results.
DieQua offers several performance levels with distinctive design characteristic options within each level. The wide range of available models allows the optimal product selection to achieve the desired performance, at the most value oriented price.
It’s this versatility in performance, design, mounting and price ranges that make DieQua’s servo gearhead product line the ultimate resource for your specific requirements.
