The GearSync family represents the next evolution of DieQua’s legacy, combining European-engineered design with the precision of our US-based assembly.

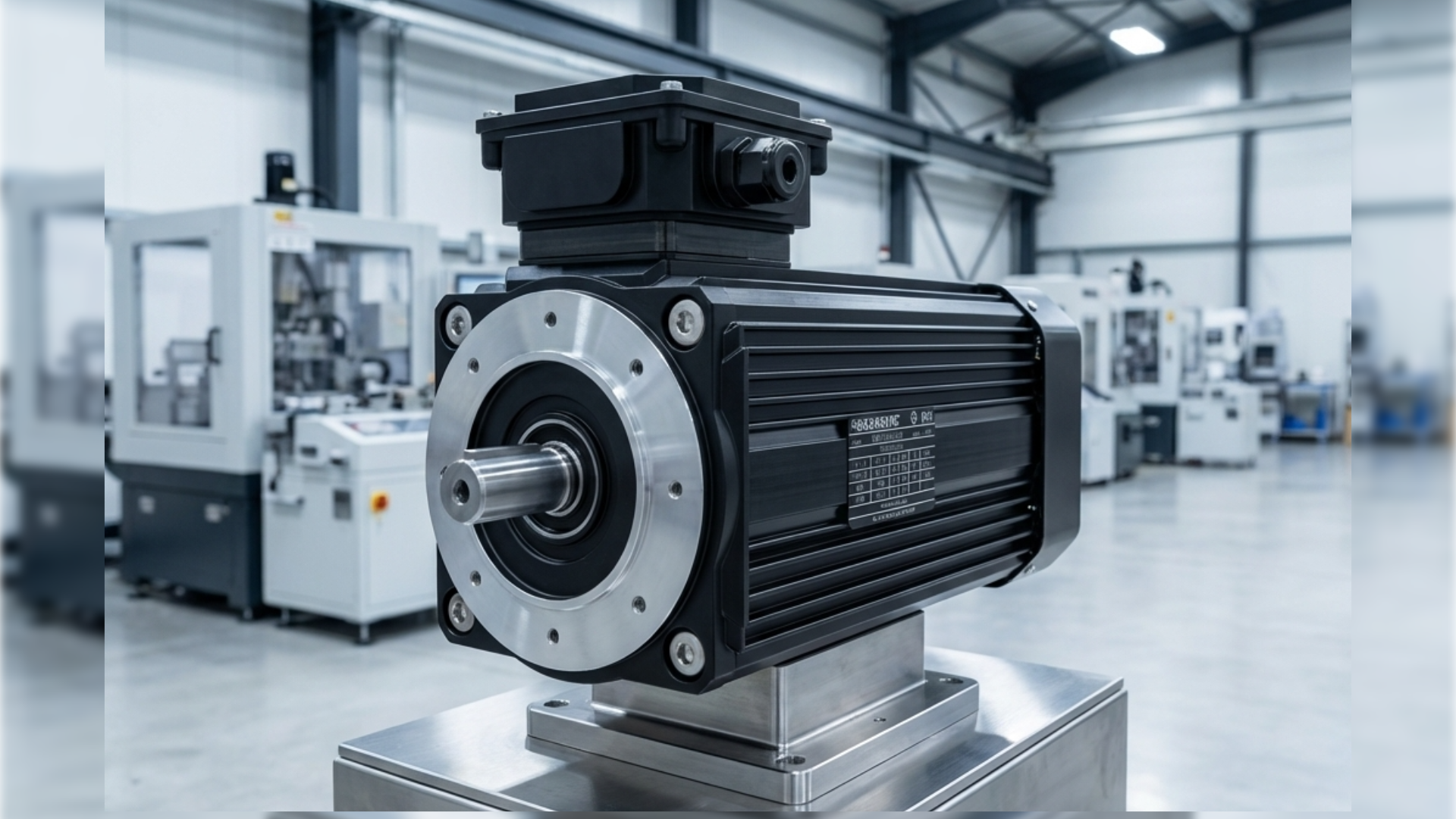

Engineered for Reliability: The GM Series AC Motors

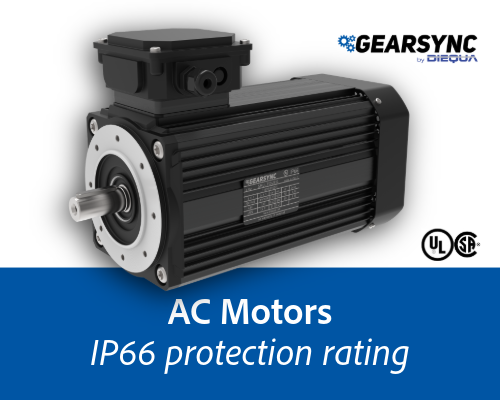

The GM AC Motors by DieQua Corporation are high-quality, versatile, and durable motors designed for various industrial applications, offering low noise, IP66 protection, UL/CSA certifications, and optional customizations like brakes and encoders. Backed by advanced engineering support and extensive inventory, these motors ensure reliable performance and adaptability to diverse environments. ​

Complete the form to download the catalog.

    Your Name (required)

    Title

    Email (required)

    Phone

    Timeline for your Application

    • Rugged Protection & Cooling: Features a black anodized aluminum housing with IP66 protection, Class F insulation, and fan-cooled TEFC (duty S1) performance.

    • Safety & Compliance: Built to UL1004-1 and CSA 100-14 standards, including integrated PTO 150°C (302°F) thermal protection.

    • Compact & Efficient Design: A space-saving, low-noise construction with an IEC B14 motor flange and a hexagon socket on the NDE side for manual rotation.

    • Versatile Power Options: Available in three-phase and single-phase (on request) configurations with a ±10% voltage tolerance.

    • Reliable Operation: Engineered for industrial environments with an operating range of -20°C to +40°C (-4°F to 104°F) and low vibration levels.

    Technical Data

    Size P
    [kW]    		 Mn
    [Nm]    		 Nn
    [min⁻¹]    		 V - f
    [V-Hz]    		 In (460V)
    [A]    		 η
    %    		 cos φ Ms/Mn Is/In Mk/Mn PTO
    [°C]    		 Duty
    TEFC
    5624 0.09 0.63 1660 460 - 60 0.45 50.3 0.61 2.50 2.40 2.70 150°C S1
    5634 0.12 0.88 1600 460 - 60 0.45 59.0 0.74 1.90 2.40 1.90
    6324 0.18* 1.26 1650 460 - 60 0.69 59.7 0.66 2.50 2.90 2.50
    6334 0.25* 1.74 1690 460 - 60 0.94 61.3 0.64 2.80 3.00 2.80
    7124 0.37* 2.52 1700 460 - 60 1.09 68.1 0.72 2.75 4.20 2.75
    7134 0.55* 3.76 1700 460 - 60 1.55 73.2 0.73 2.90 4.40 2.90
    8024 0.75* 4.96 1740 460 - 60 1.97 84.3 0.67 3.60 6.00 3.70
    8034 1.10* 7.25 1740 460 - 60 2.92 77.6 0.65 4.00 6.80 4.40
    9024 1.50* 10.00 1740 460 - 60 3.48 85.4 0.73 3.20 6.30 3.50
    9034 2.20* 14.90 1750 460 - 60 4.90 87.0 0.79 3.00 6.20 3.30

    * = Stocked motors at DieQua

    NOTE: The GM series motors are built with phase separators and with magnetic sheet metal suitable for use with inverter power supply. However, if the motor is used below 30 Hz for an extended period, it is advisable to provide forced ventilation. The final assembler must ensure compliance with EN 61800-3 and EN 61800- 5 standards in relation to the type of inverter used.

    NOTE: 80 and 90 series are IE3

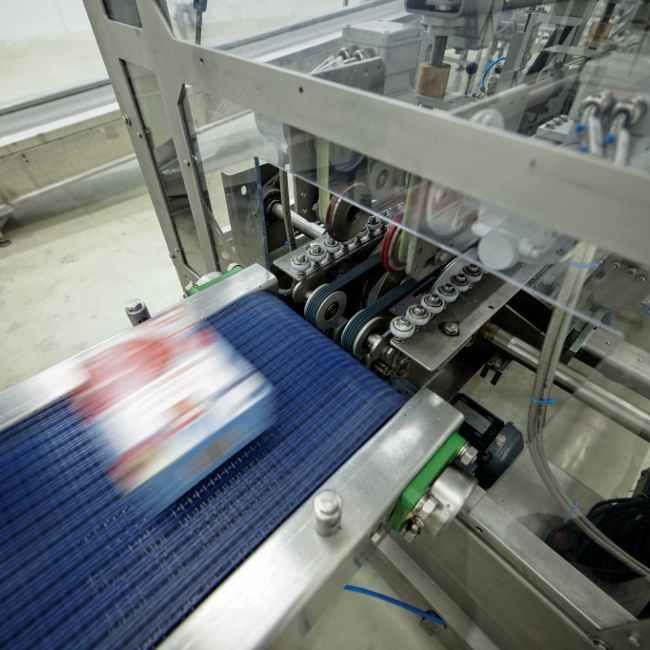

    Food Packaging Industry Applications

    High Performance Engineering

    Built for demanding environments, these motors feature a compact, black anodized extruded aluminum housing rated for IP66 protection. The design prioritizes durability with Class F insulation and phase separators for inverter compatibility, all while maintaining low noise and vibration levels.

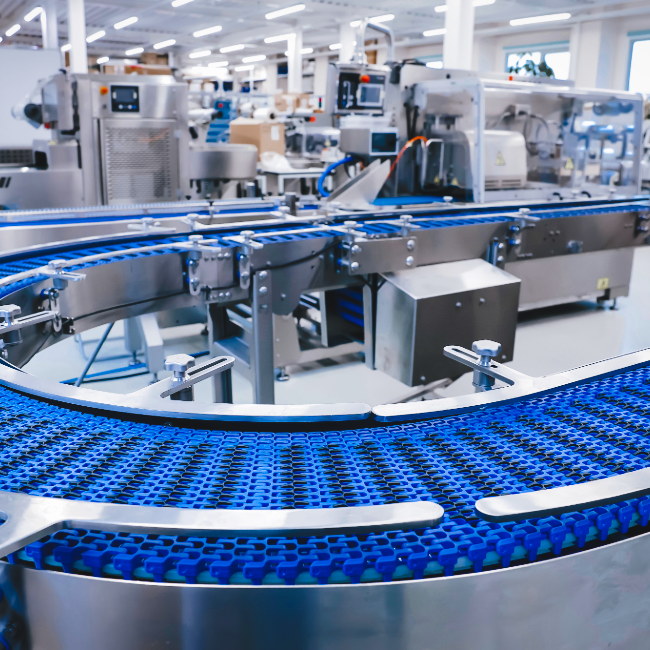

    Versatility & Customization

    Flexible for modern industrial applications dependent on automation.

    • Power options include both single-phase and three-phase configurations.
    • Custom modifications and optional components like brakes and encoders are available.
    • Specialized configurations available, including ATEX-rated environments.
    Safety and Compliance

    Safety & Compliance

    Reliability is backed by rigorous international certifications and integrated safety features:

    • Fully compliant with UL1004-1, CSA 100-14, and EU directives (EMC, LVD, and RoHS).
    • Integrated PTO thermal protection prevents overheating.
    • Reliable performance in ambient temperatures from -20°C to +40°C and altitudes up to 1000m.
