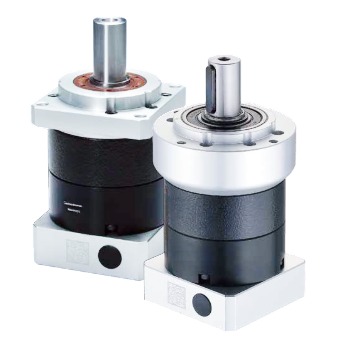

PAC/PAE Precision Servo Gearheads
The PAC/PAE are designed for general speed reduction applications offering quiet performance and high accuracy with backlash as low as <6 arc-min. They have a standard class planetary gear design.
- Nominal Output Torque up to 260 Nm
- Max. Input Speed: 800 rpm
- Max Radial Load: 4200 N
- Max Axial Load: 2600 N
- Service Life: 20,000 hrs
- Any Direction Mounting
- Noise Level: 61 – 67 dBA/1m
- Inline sizes up to 120mm
- High performance, efficiencies
- Low acoustics
- Wide Range of Ratios
- Axial capacities up to 2600 N
- Square Servo and Step Motor input: 40 mm through 130 mm
What’s Next?
Why Choose a Servo Gearhead from DieQua?
Servo motors are used in a variety of machinery motion profiles to control position and speed. Regardless the accuracy required, or lack thereof, the same motor is often used.
The performance level of the gearhead, however, is an important consideration for achieving the desired goal at the most cost effective price. A different internal construction design can yield different results.
DieQua offers several performance levels with distinctive design characteristic options within each level. The wide range of available models allows the optimal product selection to achieve the desired performance, at the most value oriented price.
It’s this versatility in performance, design, mounting and price ranges that make DieQua’s servo gearhead product line the ultimate resource for your specific requirements.
