Rotary Flange DieQua Precision Worm (DPW)

High-Torque Right-Angle Performance for Dynamic Motion Control

Deliver exceptionally smooth, precise rotary motion with our heavy-duty right-angle servo worm gearheads.

Engineered for high-cycle and continuous speed control applications, this series combines high torsional rigidity with space-saving compact housing.

Select from 3 backlash precision classes and versatile output styles—including integrated rotary flanges, hollow bores, and solid shafts—to streamline your machine design.

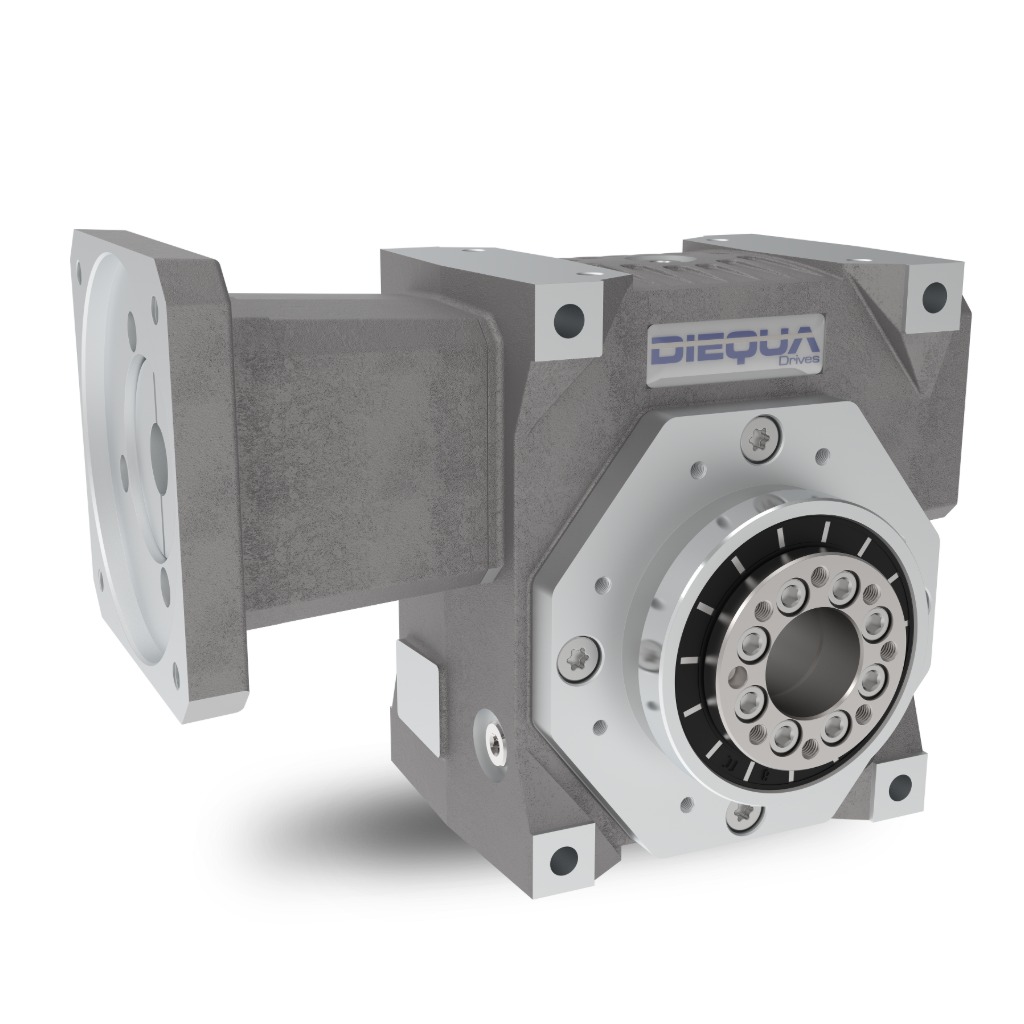

DPW with Rotary Output Flange

DPW Series – Integrated Rotary Flange Output

Frame Sizes: 45, 55, 63, 75, 90, 110

  • Reduction Ratios: 9 exact single-stage ratios ranging from 5.2:1 to 90:1

  • Precision Backlash Options: less than one arcminute

  • Housing Construction: Single piece aluminum magnesium housing for strength and low weight

  • Output Interface: ISO 9409-1 compliant (except size 90) rotary flange for direct mounting of rotary tables, arms, and pinions

  • High Radial & Axial Load Capacity: Heavy-duty output bearings directly support large overhung loads without external support bearings.

  • Compact Right-Angle Envelope: Replaces bulky multi-stage inline planetaries with a space-saving single-stage right-angle drive.

  • Maintenance-Free Synthetic Lubrication: Factory-sealed for life, minimizing operational downtime and service requirements.

  • Universal Motor Adapter: Precision motor flange interface compatible with all standard servo motor manufacturers.

What’s Next?

Download the Catalog

Download Now

Request a Quote

Get Quote

CAD & 3D Drawings

Submit a Request

Email Your Application

Send It

Why Choose a DieQua Precision Worm (DPW)?

For simply two reasons: price and performance. Many engineers shy away from right angle designs because of the typical high cost. Two stage bevel planetary configurations can get expensive.

The Basic model servo worm can achieve up to 90:1 in a single stage and can be provided with several output options for more design versatility. This gives you back the space you need for a much lower cost.

And for super low backlash? The Expert model is perfect for quiet, precise rotary motion, limiting gear play to less than 1 arc minute.

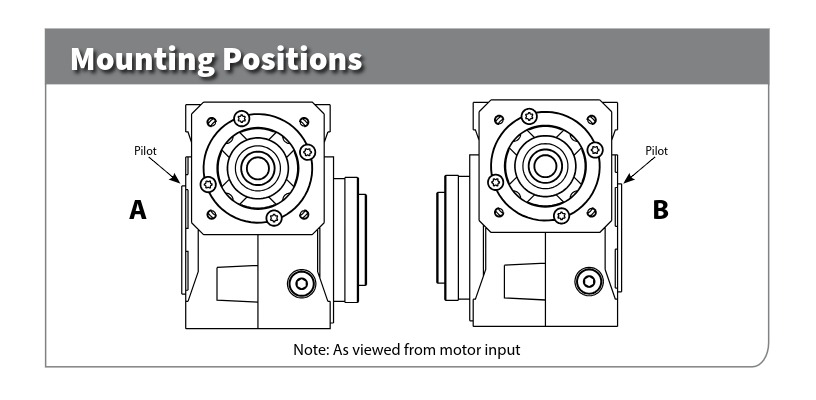

DPW Robot Flange Mounting Position

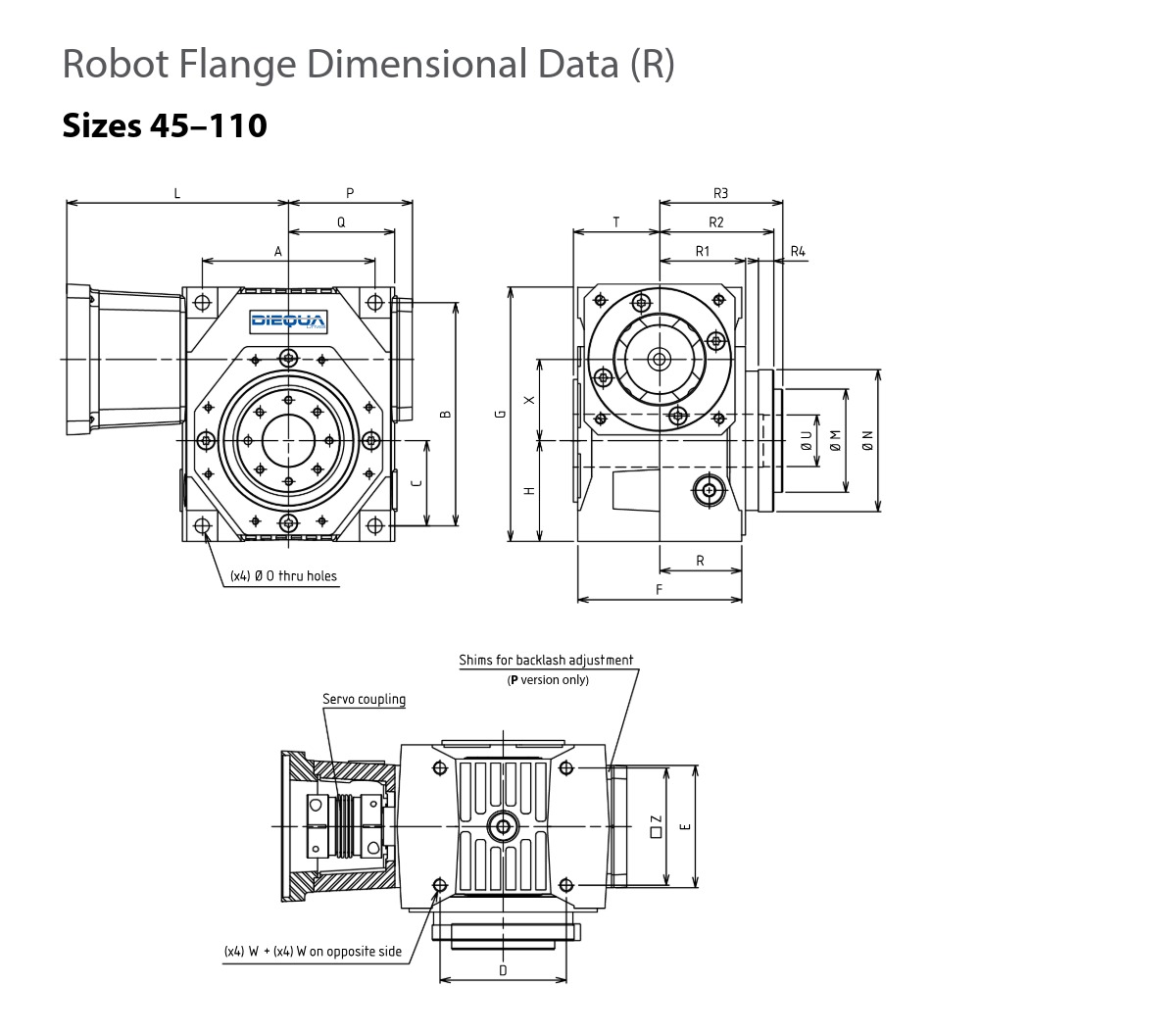

Robot Flange Data

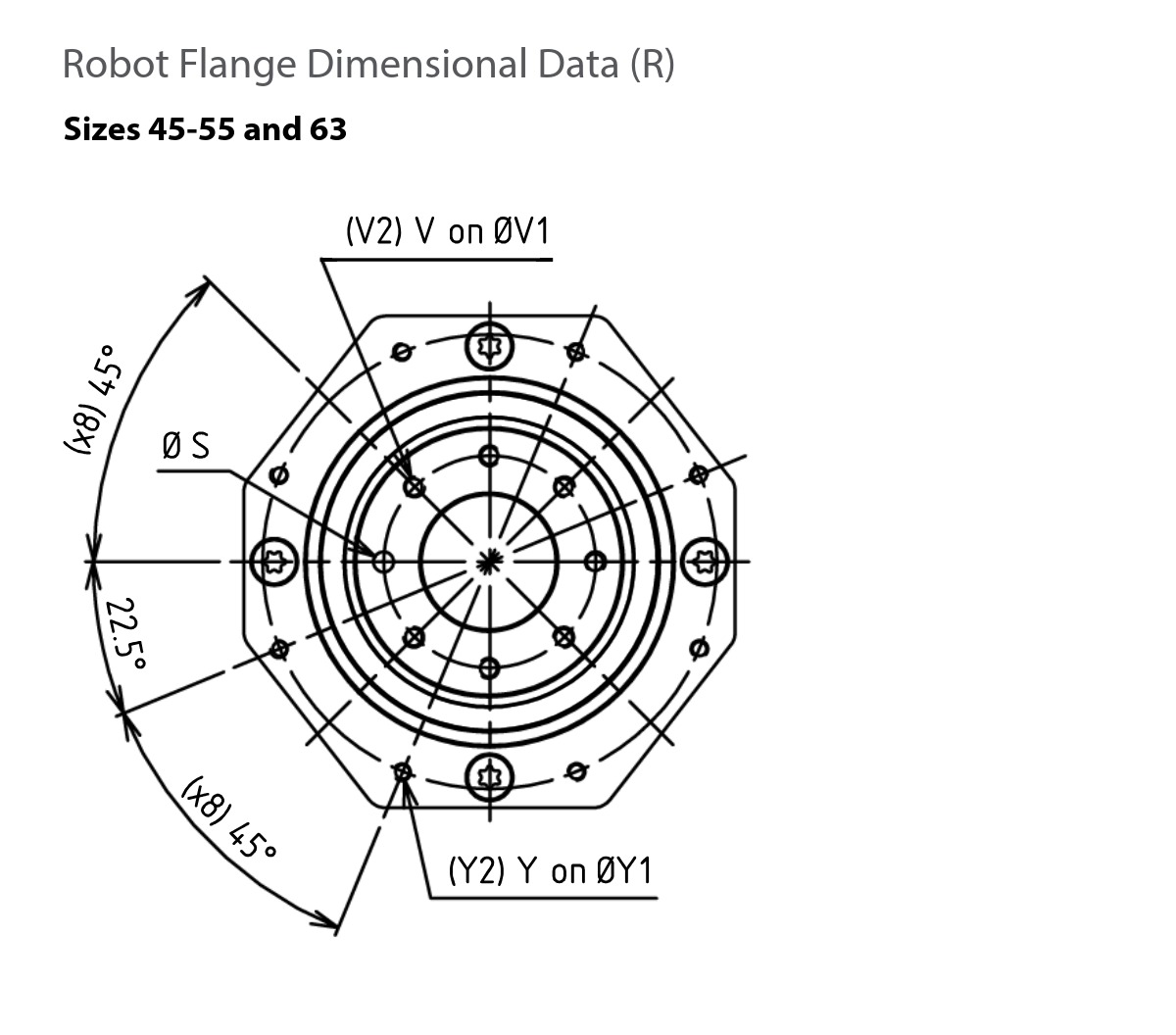

Sizes 45-55 and 63

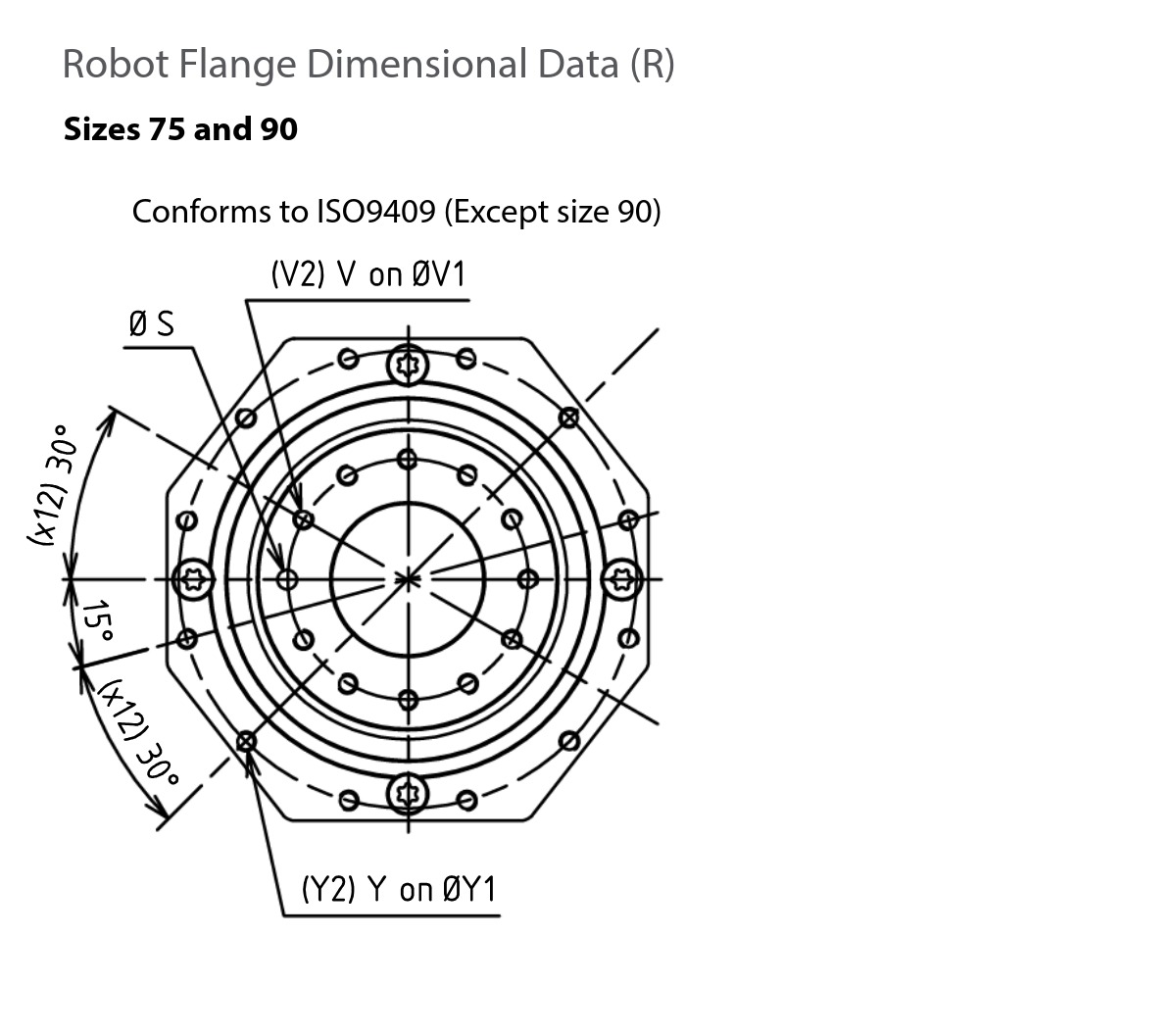

Sizes 75 and 90

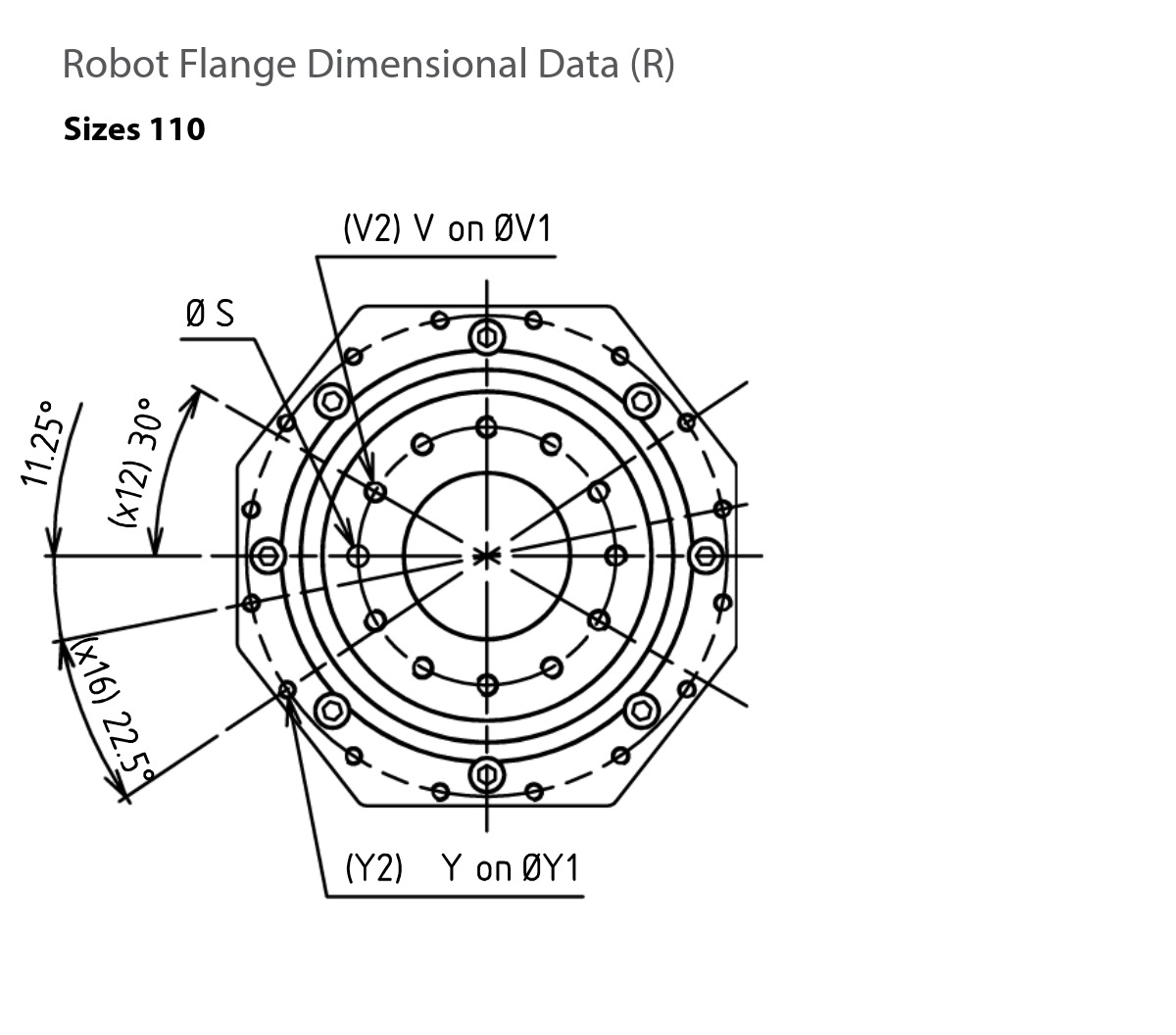

Sizes 110
Robot Flange Dimensional Data (R) 45 55 63 75 90 110
A 108 120 134 172 186 220
B 135 155 173 208 234 276
C 53 61 66 82 91 108
D 81 90 98 136 141 175
E 68 78 91 110 130 140
F 100 112 127 148 170 182
G 153 175 197 232 264 306
H 62 71 78 94 106 123
I Max 105 116 126 151 165.5 189
I Min 97.5 108 116 140 153.5 177
Jj6 15 18 20 24 28 32
K 20 22 24 28 28 36
L Based on selected Motor Flange
Mh7 50 63 80 100 125 160
Nh7 80 90 110 140 165 200
O 9 9 11 11 13 13
P max 83.5 91 101 124 136.5 152
Q 67.5 75 84 104 114.5 132
R 50 56 63.5 74 85 91
R1 54 59 66.5 79 93 100
R2 74 82 88.5 110 129 140
R3 80 89 95.5 117 138 150
R4 10 12 12 15 18 22
SH7 6 6 6 8 8 10
T 53 59.5 67 78 89 96
U H7 25 31.5 40 50 63 80
V-Depth M6-11 M6-11 M6-11 M8-15 M8-15 M10-15
V1 40 50 63 80 100 125
V2 7 7 7 11 11 11
W M8 M8 M10 M10 M12 M12
X 45 55 63 75 90 110
Y-Depth M5-12 M5-12 M5-12 M6-15 M8-18 M8-19
Y1 100 109 135 168 190 233
Y2 8 8 8 12 12 16
Z 75 75 85 95 115 115
Weight kg 7.6 10.5 15.2 22.5 36.15 51.7
Max Tilting torque Nm 250 450 780 1200 2150 3900
Tilting rigidity Nm/arcmin 330 520 580 800 1550 3050
