Selecting the right servo gearhead is rarely a one-size-fits-all decision. Torque requirements, radial load capacities, backlash limits, and duty cycles vary dramatically across packaging line indexing, high-speed pick-and-place robotics, and custom material handling.
Choosing a gearhead with inadequate performance leads to premature mechanical wear or positioning errors, while over-specifying unnecessarily inflates costs.
At DieQua Corporation, we offer one of the widest variety of planetary servo gearheads on the market. To make it easier on engineers, we’ve organized our gearheads into performance tiers—Premium, Precision, Primary, and Specialty—to fit every engineering challenge.
Rather than pushing standard off-the-shelf parts, DieQua offers an engineer-to-engineer approach. Our technical team works directly with mechanical and design engineers to evaluate duty cycles, thermal limits, and application-specific motion profiles, ensuring you select the best gearhead for optimal performance and efficiency.
| Performance Tier | Key Characteristics |
|---|---|
| Premium | Caged helical planetary gearing, high radial/axial load capacity, ultra-low backlash (<1–6 arcmin), tapered roller bearing options. |
| Precision | High torque density, low backlash (<3–8 arcmin), rigid housing design, quiet operation. |
| Primary | Caged spur planetary gearing, versatile mounting configurations, reliable torque capacity at an economical cost. |
| Specialty | Right-angle, high-torque, or ISO 9409-1 robotic flange geometries tailored for space-constrained or specialized designs. |
Breakdown of Performance Tiers

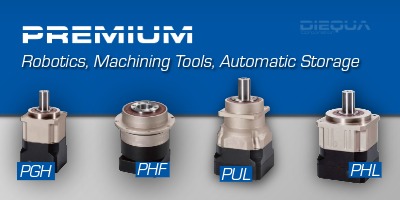

Premium Servo Gearheads: Maximum Rigidity and Performance
When your application demands minimal transmission error and maximum load bearing, Premium planetary gearheads deliver.
Featuring caged helical gearing and high radial load capacity, models like the PGH Series handle severe duty cycles while maintaining tight backlash tolerances. Models like the PHF Series feature ISO 9409-1 robotic flanges for direct robot joint integration, while right-angle planetary models allow drives to fit in tight machinery footprints.

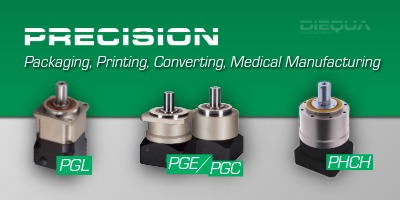

Precision Servo Gearheads: High Torque and Quiet Operation
The Precision tier balances dynamic accuracy with high torque density. Gearheads like the PGE/PGC Series and PGL Series offer low noise levels, low backlash, and high positional accuracy—making them ideal for fast-paced automated assembly and packaging systems.
The PHCH Series especially is ideal for packaging applications since it offers both superior over-hang load capacity and torque within a compact housing.

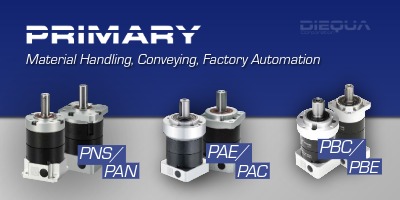

Primary Servo Gearheads: Economical and Reliable Motion
For general motion control applications where high precision is not the primary driver, our Primary line provides robust speed reduction without ballooning your budget. Options like the PNS Series and PAN Series offer reliable performance for stepper or entry-level servo applications.

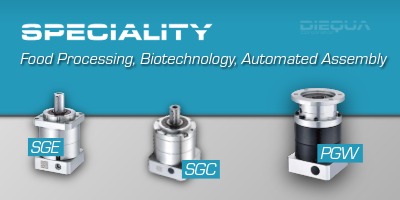

Specialty Servo Gearheads: Designed for Complex Geometries
Our speciality gearheads are designed for demanding washdown conditions and non-standard solutions. Models like the stainless steel SGE and SGC Series provide corrosion resistance for food processing, pharmaceutical, and chemical applications.
Additionally, specialty options like the PGW Series feature a high-rigidity hollow shaft output designed to bolt directly onto linear actuator belt drive systems, delivering compact integration without external couplings.
Leverage Our Engineer-to-Engineer Advantage
Catalog specifications are helpful starting points, but real-world variables like shock loads, ambient environments, and thermal dissipation require practical engineering oversight.
When you buy from DieQua, you do not talk to customer service representatives reading from a script—you speak directly with mechanical engineers who understand gear design, motor matching, and mechanical power transmission. We partner with your team to review load calculations, evaluate mounting tolerances, and identify the exact performance tier for your design requirements.
Whether you need a high-precision planetary gearhead or a custom right-angle drive, contact DieQua today to speak directly with an application engineer about your project.
