In mobile robotics design, drive module selection usually requires trade-offs. As Automated Guided Vehicles (AGVs) and Autonomous Mobile Robots (AMRs) are tasked with carrying heavier payloads in smaller chassis footprints, traditional gearbox-and-wheel layouts quickly run into physical limits. Designing an efficient drive system requires balancing structural load support, energy efficiency for battery preservation, and tight spatial constraints.
Here is a look at how the PGV planetary gearhead series addresses these three specific mechanical bottlenecks.
1. Managing High Cantilevered Radial Loads
Standard planetary gearboxes are built to transmit torque to inline output shafts, assuming centered axial or light radial loads. However, in an AGV or AMR drive wheel, the wheel mounts directly to the output flange or shaft, subjecting the gearbox bearings to severe external radial forces and bending moments.
The PGV series handles these heavy payloads without causing premature bearing failure or shaft deflection:
-

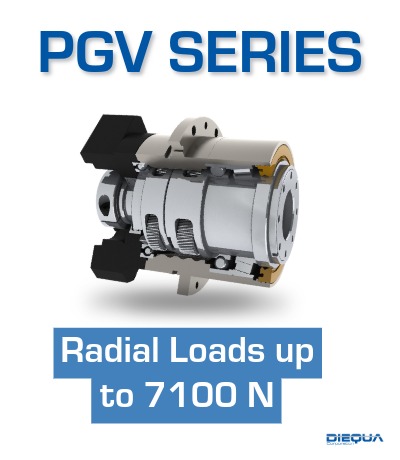

Integrated Carrier Designs: Utilizing a one-piece planet carrier and output shaft creates a rigid internal structure capable of supporting radial loads up to 7,100 N directly at the wheel hub.
-
Direct Wheel Mounting: Integrating the wheel interface directly onto the gearbox output eliminates the need for external supporting bearings, simplifying the overall mechanical stack.
2. Reclaiming Internal Footprint for Batteries
Internal chassis space in mobile robots is at a premium. Every millimeter taken up by the drivetrain is space taken away from onboard electronics, sensors, or battery capacity.
By utilizing a compact, short-length planetary housing with standard motor adapter plates, the entire drive assembly sits tighter against the chassis wall. PGV’s low-profile layout gives mechanical engineers the flexibility to expand battery capacity, extending operational cycles between charges.
3. Maximizing AGV Charge Time with High Gearhead Efficiency
Thermal management and battery draw are critical continuous-duty considerations for 24/7 warehouse operations. Excessive friction inside a gearbox creates heat and drains power.
-

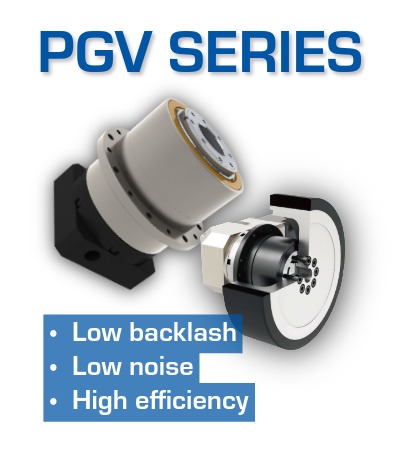

Low Backlash Precision: A one-piece ring gear housing delivers precise gear meshing with low backlash (7–12 arcmin), reducing rotational play and improving positioning accuracy during stop-and-go navigation.
-
Synthetic Service-Life Lubrication: Sealed IP65 housings packed with high-efficiency synthetic lubricant minimize friction losses, maintaining high efficiency over continuous duty cycles without requiring routine fluid maintenance.
| Key Technical Parameters | |
|---|---|
| Frame Size | 60 mm, 90 mm, 115 mm |
| Gear Ratios | 3:1 to 100:1 (Single and Two-Stage options) |
| Nominal Input Speed | 3,500 – 4,500 RPM |
| Protection Class | IP65 rated enclosure |
| Motor Integration | Custom mounting adapters compatible with standard DC brush/brushless and servo motors |
Streamline Your Robotics Design
Evaluating drive options for a new mobile robot platform or retrofitting an existing drive unit? Submit your application requirements to our engineering team for a complete quote.
