Optimizing Speed, Precision, and Reliability: The Best Gearboxes for Packaging & Labeling Lines
In the high-speed world of packaging and labeling, every millisecond counts. Modern operations demand continuous uptime, precise motion control, and high torque output in compact footprints. Whether managing bottling conveyors, high-speed labeling heads, or robotic palletizing cells, selecting the right gearboxes is essential to prevent costly downtime and operational bottlenecks.
Below is an overview of the premier gearbox technologies driving efficiency across automated packaging environments.
Recommended Gear Technology for Packaging / Labeling Applications
-
Planetary Servo Gearboxes: Ideal for high-dynamic, high-precision applications like indexers, robotic pick-and-place systems, and high-speed labeling heads. Premium planetary designs deliver high torque density, exceptional radial load capacity, and minimal backlash for crisp positioning.
-
Helical Bevel Gearboxes: Perfect for space-constrained conveyor drives and right-angle power transmission. By combining helical efficiency with right-angle bevel gearing, these units offer smooth torque transfer and quiet operation over continuous duty cycles.
-
Servo Worm Reducers: Engineered for compact machinery layouts requiring moderate-to-high gear reduction. Worm gearboxes offer self-locking safety options (depending on the ratio) for vertical lifts and indexing tables.
-
Hygienic Washdown Gear Units: Critical for food, beverage, and pharmaceutical packaging lines. Featuring smooth, crevice-free housings, stainless steel or epoxy coatings, and food-grade lubricants, these gearboxes withstand aggressive washdown procedures while maintaining strict sanitation compliance. DieQua offers stainless steel planetary gearheads, stainless steel spiral bevels, white epoxy spiral bevels.
Key Gearbox Solutions for Common Applications
| Application Challenge | Requirement | Recommendation |
|---|---|---|
| High Speed Rotary Labeling | High radial overhung loads, rapid start/stop. | PHCH Series: Reinforced roller bearings handle high radial loads and axial forces, which are common on lines with high-tension belt feeds or heavy labeling heads. |

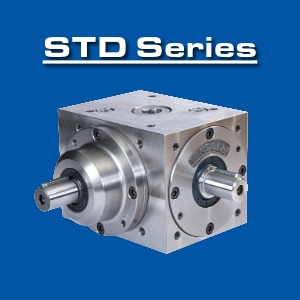

| Multi-Axis Indexing | Near-zero backlash, maximum torsional stiffness. | STD Series Spiral Bevel: High-precision right-angle gearing for exact positioning. |
| Robotic Pick-and-Place / Cartoners | Compact envelope, low inertia | PHF Series: Integrated output flange with high stiffness for tight robotic frames. |
| Form-Fill-Seal (FFS) & Rotary Cutters | Dynamic indexing in tight right-angle layouts | DSW Servo Worm: Low-backlash precision in a space-saving footprint. |
| Main Line Conveyors | Continuous duty, low thermal buildup | GearSync Helical Bevel: Maximum energy efficiency over long production runs. |

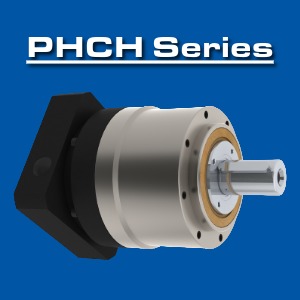

High-Speed Rotary Labelers & Tension Rollers
Challenge: Extreme radial side loads (OHL) from belt tension & rapid start-stop cyclesRecommended Gearbox: PHCH Series
- Reinforced roller bearings absorb heavy overhung loads without shaft deflection, maintaining crisp label registration.
Multi-Axis High Speed Indexing
Challenge: Extreme positioning accuracy, high torsional stiffness, zero backlashRecommended Gearbox: Multi-Axis Spiral Bevel
- Highest-tier spiral bevel and planetary gearing for unmatched accuracy and smooth torque transmission.

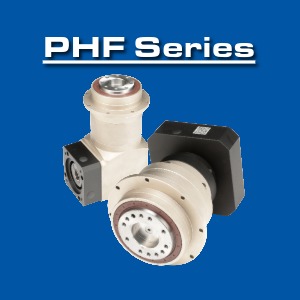

Robotic Pick-and-Place & High-Speed Cartoners
Challenge: Compact envelope requirements with high dynamic performance; low inertiaRecommended Gearbox: PHF Series
- Short-length, high-stiffness design with an integrated output flange to simplify mounting on robotic arms and tight frames.

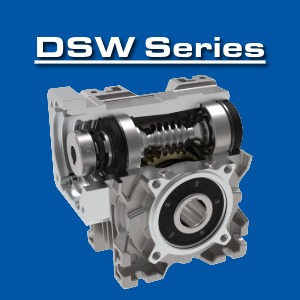

Form-Fill-Seal (FFS) Jaws & Rotary Cutters
Challenge: Dynamic indexing, high shock loads, tight space constraints in right-angle layoutsRecommended Gearbox: DSW Servo Worm
- Combines low-backlash precision with smooth, quiet right-angle power transmission in a highly compact footprint

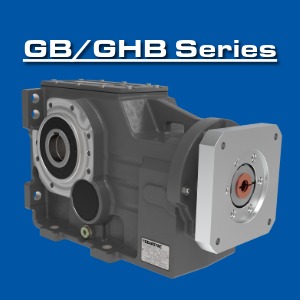

Main Line Conveyors & Bulk Material Handling
Challenge: Continuous-duty efficiency, high torque output, low thermal buildup over long runsRecommended Gearbox: GearSync Helical Bevel
- High-efficiency right-angle gearing delivers smooth, energy-efficient torque transfer across continuous conveyor drives
Critical Selection Factors for Line Engineers
-
Positioning Accuracy: Choose minimal backlash planetary or servo-fit gearboxes to maintain exact registration on labeling and cartoning lines.
-
Washdown Compatibility: Ensure IP-rated sealing, corrosion-resistant housings, and food-grade lubrication when operating near primary food contact or cleanroom environments.
-
Thermal Efficiency: High-efficiency helical and bevel gearing reduces internal heat generation, prolonging lubricant life and reducing total cost of ownership.
-
Compact Footprint: Modular designs with integrated motor adapters allow easy mounting directly into tight machine frames.
Upgrading to purpose-built power transmission components ensures your packaging line runs cleaner, faster, and longer with minimal maintenance overhead.
Contact DieQua’s engineering team today for an evaluation and gearbox recommendation for your application.
